Product Specifications
| Prod Model: |
BLM-280 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optional System: |
Infinite Optional System |
| Eyepiece: |
Wide Field Eyepiece Ew10*/ 18 |
| LCD Screen: |
8.4 Inch TFT Touching Screen |
| Output: |
USB2.0, AV and VGA Output |
| Condenser: |
Sliding-in Condenser Na1.25 |
| Illumination: |
LED Illumination, Brightness Adjustable |
| Magnification: |
500-1000X |
| Type: |
Biological |
| Number Of Cylinder: |
Binoculars |
| Mobility: |
Desktop |
| Principle: |
Optics |
| Kind Of Light Source: |
LED and Halogen Lamp Illumination |
Product Description

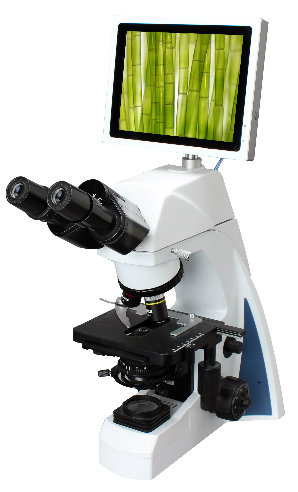

IntroductionThis LCD digital microscope BLM-280 is a wholly new generation microscope system that has an embedded system. With a 8.4" TFT screen, it works like a computer. You can take photos, take videos and take measurement on the machine. With W-LAN and LAN function, you can directly connect the microscope in to the internet. Then you can transfer the images and videos to remote places. With
friendly man-machine interface, powerful processing function (real-time preview, dynamic calibrating
and measuring), multiple peripheral interfaces, easy to operate and comfortable mechanical design,
it is your best assistant in teaching, electronic inspection, biological and medical research!
Features1. The BLM-280 LCD digital microscope is a new generation microscope that with an embedded operation system WinCE 5.0, it can link mouse or keyboard, just like a micro computer.
2. It supports 100M Ethernet network, WI-FI wireless net and can communicate with remote PC.
3. With 8.4 Inch TFT touching screen, friendly man-machine interface, multiple peripheral interfaces and powerful processing function, make it very easy to operate.
4. It can be used in various Optional micro fields, such as teaching, biological and medical researching, electronic components inspection and so on.
5. The screen can be separated from the microscope and placed anywhere you like.
Product Images
ApplicationWith LCD Screen and data remote transfer function, this wonderful LCD digital microscope BLM-280 can be used in high level laboratories and universities for teaching, biological and medical research, it also can be used for electronics, circuit board and other industrial inspection.
Specification| Specification |
| BLM-280 |
| Optional System | Infinite Optional System | Yes |
| Digital part | 2.0 Mega Pixels CMOS Sensor | Yes |
| W-LAN and LAN function | Yes |
| Viewing Head | Seidentopf binocular head, 30° inclined, Interpupillary 48-75mm | Yes |
| Eyepiece | Wide Field Eyepiece EW10×/ 18 | Yes |
| Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment | Optional |
| Objective | Infinite Semi-Plan Achromatic Objective 4×, 10×, 40×, 100× | Yes |
| Infinite Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× | Optional |
| Nosepiece | Quadruple Nosepiece | Yes |
| Stage | Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm | Yes |
| Condenser | Sliding-in Condenser NA1.25 | Yes |
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse
Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving
Range 20mm | Yes |
| Illumination | LED Illumination, Brightness Adjustable | Yes |
| 6V/ 20W Halogen Lamp Illumination, Brightness Adjustable | Optional |
| LCD Screen | 8.4 Inch TFT Touching screen | Yes |
| Output | USB2.0, AV and VGA Output, 100M Ethernet interface | Yes |
| System | Windows CE 5.0 | Yes |
| Software | NMS(microscope software) & NMS Client(computer software) | Yes |
| SD Card | Expandable to Max 2GB Kinston SD Card | Optional |
| Mouse |
| Optional |
| Note: Yes Standard Outfit, Optional Standard Optional |
