Product Specifications
| Prod Model: |
BF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After Sale Service: |
Whole Using Life |
| Installation: |
Technical Guidance |
| Price: |
Negotiable |
| Type: |
Flotation Separator |
| Voltage: |
380V |
| Weight: |
8T |
| Certification: |
CE |
| Warranty: |
1 Year |
| Color: |
Multi Color |
| Customized: |
Customized |
| Condition: |
New |
Product Description

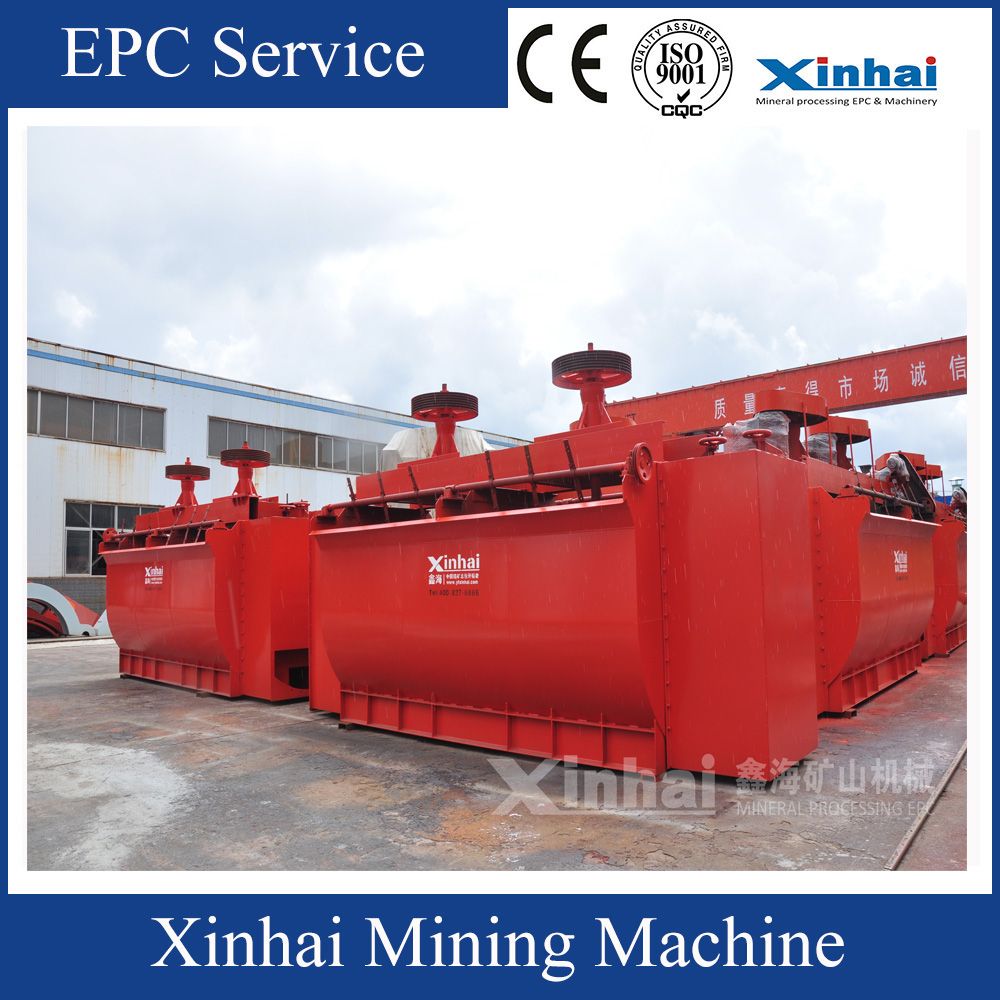

BF flotation cell/Flotation Machine
BF flotation cell — Product advantages
1. Large pulp circulation volume
2. Large air-absorption capacity and good effect of dispersion
3. Reasonable circulation of mineral slurry
4. Wide range of particle size and high recovery rate of ore selection
BF flotation cell — Product feature
BF flotation cell has two types: Type I and type II. Type I is improved as suction cell referring to model SF; Type II is improved as direct flow cell referring to model JJF. Both are briefly called model BF. Related feature of structure and performance please refer to the introduction of model SF and JJF respectively.
BF flotation cell — Product application
Flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.
BF flotation cell — Product principle
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
| Model | Effective
volume
(m3) | L×W×H
(mm) | Diameter o
f impeller
(mm) | Impeller
revolution
(m/s) | Air suction
amount
(m3/m2.min) | Motor model | Motor
power
(kw) | Capacity
(m3/min) | Weight of
single tank
(kg) |
| BF-0.15 | 0.15 | 550×550×600 | 200 | 6 | 0.9-1.05 | Y112M-6 | 2.2 | 0.06-0.16 | 270 |
| BF-0.25 | 0.25 | 650×600×700 | 250 | Y100L-6 | 1.5 | 0.12-0.28 | 370 |
| BF-0.37 | 0.37 | 740×740×750 | 286 | 7.2 | Y90L-4 | 0.2-0.4 | 470 |
| BF-0.65 | 0.65 | 850×950×900 | 300 | 7.35 | 0.9-1.10 | Y132S-6 | 3 | 0.3-0.7 | 932 |
| BF-1.2 | 1.2 | 1050×1150×1100 | 450 | 7.02 | Y132M2-6 Y132M1-6 | 5.5 4 | 0.6-1.2 | 1370 |
| BF-2.0 | 2 | 1400×1450×1120 | 500 | 7.5 | Y160M-6 | 7.5 | 1.0-2.0 | 1750 |
| BF-2.8 | 2.8 | 1650×1650×1150 | 550 | 8.06 | Y180L-8 | 11 | 1.4-3.0 | 2130 |
| BF-4.0 | 4 | 1900×2000×1200 | 650 | 8 | Y200L-8 | 15 | 2.4-4.0 | 2585 |
| BF-6.0 | 6 | 2200×2350×1300 | 700 | 7.5 | Y225S-8 | 18.5 | 3.0-6.0 | 3300 |
| BF-8.0 | 8 | 2250×2850×1400 | 760 | Y225M-8 | 22 | 4.0-8.0 | 4130 |
| BF-10 | 10 | 2250×2850×1700 | 7.52 | 5.0-10 | 4500 |
| BF-16 | 16 | 2850×3800×1700 | 850 | 8.7 | Y280S-8 Y280M-8 | 37 45 | 8.0-16 | 8320 |
| BF-20 | 20 | 2850×3800×2000 | 10.0-20 | 8670 |
| BF-24 | 24 | 3150×4150×2000 | 920 | Y280M-8 | 45 | 12.0-24 | 8970 |
Founded in 1993, Yantai Xinhai has 20 years experience as a Chinese leader in the mining machinery manufacture and mining EPCM projects service.
With large number of research institutes(machinery research institute, mine design research institute, installation and commissinging department, etc. ) and service engineers, our customers have a tremendous depth of technical resources they can rely on. What is more, 80% equipments for mineral processing have been improved by Xinhai and some technology reaches the international advanced level. Xinhai Mining Machinery Company has become the research & developing base of mining and mineral processing machinery industry in China.
In addition, Xinhai is committed to providing premium EPCM services for customers, which include mineral processing test, mine design, equipment manufacture, installation and commissioning, personnel training and target achievement. There are more than 400 high-performance EPCM projects all over the world which are provided by Xinhai Company.
What you need is what we can do. For an evaluation of your needs, please contact us at any time. Xinhai believes you will be impressed with the experience, the proficiency and the helpful attitude you find at every level within Yantai Xinhai Mining Machinery Company.
