Product Specifications
| Prod Model: |
Standard Size |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Milling Machine |
| Processing Type: |
Metal |
| HRC: |
45/55/60/65degree |
| Diameter: |
R0.5-R12.5mm |
| Usage: |
General Purpose/High Speed Cutting |
| Suitable For: |
Copper, Iron, Steel, etc |
| Transports: |
Air/Courier/Maritime |
Product Description

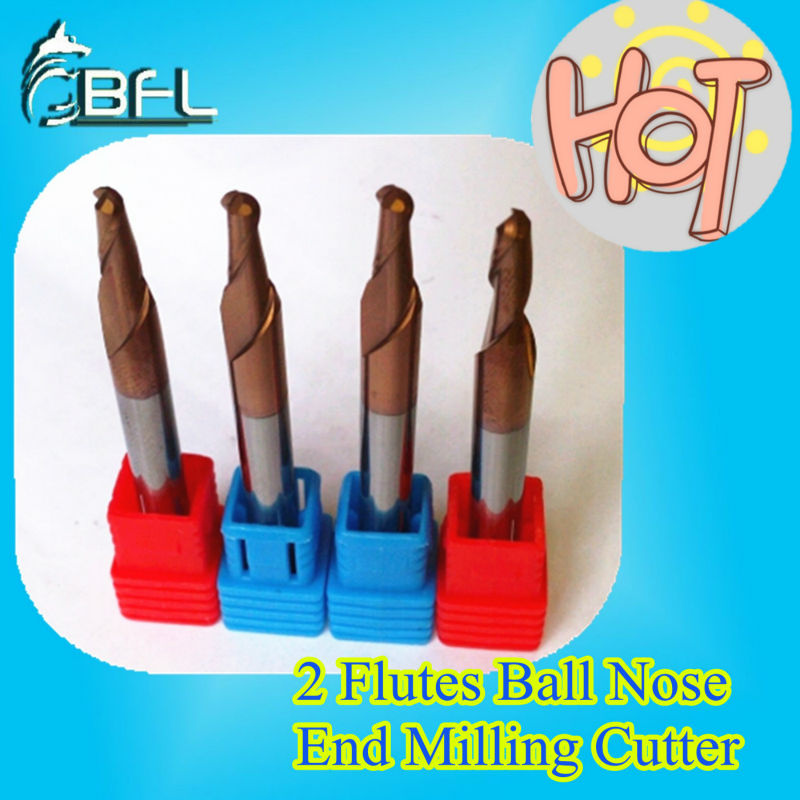

BFL-Tungsten Carbide Ball Nose Cutting Tool/CNC Lathe Milling Machine Ball Nose Cutter Tool
1, Co: 10%, Wc: 90%
2, TRS: 3600~4800 N/mm2
3, HRA: 91.8-92.4, HRC: 45/55/60/65 degrees
4, Grain size: 0.4-0.6μ M
1, Advanced CNC grinding machines
With 5-Axis automatic CNC grinding machines from abroad
Michael Deckel from Germany
ANCA from Australia
Top Work from Taiwan
Guarantee high precision and good performance.
2, Super raw material
1> YG10X--HRC45
2> YL10.2--HRC55, ZCC. CT, CB Carbide--HRC55
3> K44--HRC60 from Germany
4> H10F--HRC65 from Sandvik Carbide
3, Reasonable price
Pleasure to offer you more discount according to your quantity.
Welcome to be our agents, OEM is also available.
4, Strict quality checking
Check each piece with ZOLLER Machine.
Guarantee the tolerance-0.02mm. Exact helix angle, and finished surface, Goods pass SGS and ISO9001.
5, Application and usage
Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
6, Super coating
TiAlN / AlTiN / Blue Nano Coating can improve tool life, reduce the coefficient of friction.
7, Package details
One plastic pipe packs one piece, 10 pieces per group.
Use air bubble paper to encase the plastic pipes.
Put goods encased with air bubble paper into the carton box.
8, Payment
T/T, Western Union, Paypal
9, Short delivery time
Fast moving items are kept in stock to meet urgent orders.
Air, courier, maritime are all accpetd.
Welcome send inquiry to us, pleasure to offer you best service. Thanks.
|
Order No. |
Flute dia d |
Flute length ( l ) |
Shank dia (D) |
Total length(L) |
|
1.0×3×4D×50L |
1.0 |
3 |
4 |
50 |
|
1.5×4×4D×50L |
1.5 |
4 |
4 |
50 |
|
2.0×6×4D×50L |
2.0 |
6 |
4 |
50 |
|
2.5×7×4D×50L |
2.5 |
7 |
4 |
50 |
|
3.0×8×4D×50L |
3.0 |
8 |
4 |
50 |
|
3.5×10×4D×50L |
3.5 |
10 |
4 |
50 |
|
4.0×11×4D×50L |
4 |
11 |
4 |
50 |
|
4.5×13×6D×50L |
4.5 |
13 |
6 |
50 |
|
5.0×13×6D×50L |
5.0 |
13 |
6 |
50 |
|
5.5×13×6D×50L |
5.5 |
13 |
6 |
50 |
|
6.0×15×6D×50L |
6.0 |
15 |
6 |
50 |
|
6.5×15×8D×60L |
6.5 |
15 |
8 |
60 |
|
7.0×17×8D×60L |
7.0 |
17 |
8 |
60 |
|
7.5×17×8D×60L |
7.5 |
17 |
8 |
60 |
|
8.0×20×8D×60L |
8.0 |
20 |
8 |
60 |
|
8.5×23×10D×75L |
8.5 |
23 |
10 |
75 |
|
9.0×23×10D×75L |
9.0 |
23 |
10 |
75 |
|
9.5×25×10D×75L |
9.5 |
25 |
10 |
75 |
|
10.0×25×12D×75L |
10.0 |
25 |
12 |
75 |
|
10.5×28×12D×75L |
10.5 |
28 |
12 |
75 |
|
11.0×28×12D×75L |
11.0 |
28 |
12 |
75 |
|
11.5×28×12D×75L |
11.5 |
28 |
12 |
75 |
|
12.0×30×12D×75L |
12.0 |
30 |
12 |
75 |
|
13.0×33×16D×100L |
13.0 |
33 |
16 |
100 |
|
14.0×35×16D×100L |
14.0 |
35 |
16 |
100 |
|
15.0×38×16D×100L |
15.0 |
38 |
16 |
100 |
|
16.0×40×16D×100L |
16.0 |
40 |
16 |
100 |
|
17.0×40×20D×100L |
17.0 |
40 |
20 |
100 |
|
18.0×40×20D×100L |
18.0 |
40 |
20 |
100 |
|
19.0×40×20D×100L |
19.0 |
40 |
20 |
100 |
|
20.0×40×20D×100L |
20.0 |
40 |
20 |
100 |
|
25.0×40×25D×100L |
25.0 |
40 |
25 |
100 |
