Product Specifications
| Prod Model: |
LLR1027URUGW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
10mm |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
P-type Semiconductor |
| Package: |
DIP(',Dual In-line Package) |
Product Description

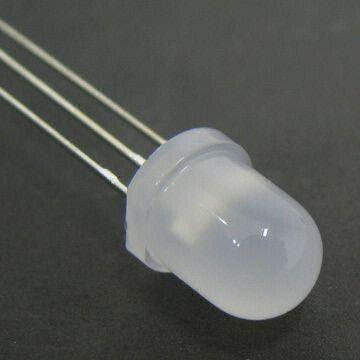

High brightness 10mm round LEDs with RG emitted color.
This is a 3-pin LED with bi colors.
Features:
High bright output
Large view angle
Low power consumption
High reliability and long life
The specifications of LLR1027URUGW
| Chip | Lens
Appearance | Absolute Maximum
Ratings | Electro-optical
Data(At 20Ma) | Viewing
Angle
2θ1/2
(deg) |
Emitted /Material
Color | Peak
Wave
Length
λP(nm) | λ
(nm) | Pd
(mw) | IF
(mA) | Peak
(mA) | VF
(V) | Iv
(mcd) |
| Typ | Mak | Typ |
| Ultra Red (AlGaInP) | 630 | White diffused | 17 | 65 | 30 | 150 | 1.95 | 2.5 | 180 | 60 |
| Ultra Green (AlGaInP) | 574 | White diffused | 30 | 75 | 30 | 150 | 2.1 | 2.5 | 120 |
Descriptions:
Device Outline: 10mm oval Type
Lens type: Water clear
Viewing agnle: 15-60 deg.
For more information, please contact us!
