Product Specifications
| Prod Model: |
SoEasy2010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Monitoring System |
Product Description

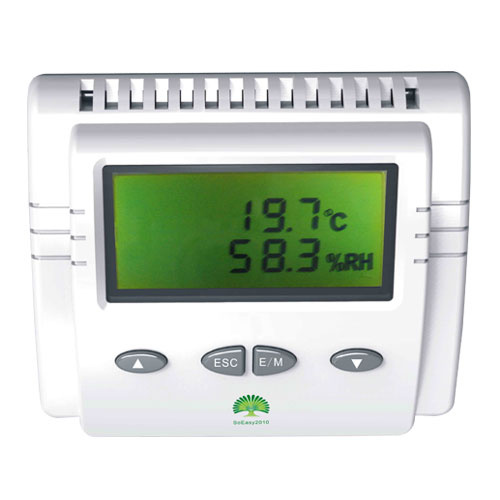

Big Banian SoEasy2010 power and environment monitoring host device
Product Features:
1) Highly integrated, internal temperature and humidity sensors, AC detection, DI detection, compact appearance;
2). Energy efficiency: Can directly supply power through a regular telephone line, no need the external power and battery, zero power, energy saving and environmental protection.
3) Intelligence: To detect the temperature and humidity, powered down and DI status, automatically dial the user's telephone alarm, when the data recovery to normal, it will dial telephone again to notice.
4) Set the temperature and humidity values: Set the environment temperature, the humidity of the upper and lower limits by your own, when get beyond the setting range, the system dial the default administrator telephone alarm immediately, and rest assured that nobody duties.
5) Simplicity: Compact, easy to install, four direction access, designed to simplify cabling structure.
6) Intuitive: Use LCD display information intuitive, easy keyboard operation;
7) Real-time: Real-time monitoring of temperature and humidity, the amount of AC and switch;
8) Extensibility: Based on RS485 interface for remote network management;
9) Maintenance-free: The annual 24 hours of continuous work, no special maintenance;
10) Anti-lightning strike: Maximum 3KV Surge pulses without damage.
Product Description:
Brand: Big Banian
Payment Terms: Western Union, Money gram, ND Credit card
Shipping: DHL, EMS, UPS, TNT, By air cargo, by sea
Computer and network communication equipment room, communications base stations, outdoor cabinets, cold storage, Enterprise, military, laboratories etc. Require a higher place on the environment.
This equipment can monitor 1 channel temperature and humidity, 1 channel AC electricity, 1 channel switch (can be connected to Firefighting, and burglarproof and the leaking etc. ). When relevant parameter exception occurs, it can automatically dial a preset six groups phone number, and inform specific exceptional content. When relevant parameters returned to normal, the system will issue again a notice of the restoration of normal.
The devices has a RS485 communication port to connect with the computer (purchased separately 232 to 485 converters), and offers network remote monitoring and E-mail alarm (purchased separately) protocol converter NCS1), if required software packages, please feel free to contact us.
About Big Banian
Big Banian Info Tech Co., Ltd. Of Guangdong was established in 2003, the registered capital of 500 million, is a high-tech information company with research and development and sales. We have obtained a number of national patents and software copyrights. Our products are mainly used in Telecommunications, Finance, Education, Electricity, Petroleum, Government apparatus, Transportation, Roadway, Bridge, Energy, Manufacturing and other utilities industries. As well as providing our customers with a comprehensive power, environment, IT resources, and a series of security monitoring solutions, praised by customers...
The products we supply are Monitoring host, Leakage detection equipment, Air-condition auto control, Humidity and temperature transmitter and other accessories etc.
Please free to contact us freely for more information! Welcome your order!
Product technical parameters
Data interface |
|
Temperature and humidity measuring range |
Temperature |
-10 -70 C |
Precision |
± 0.5 C(2C) |
|
Humidity |
10 -95%RH |
Precision |
± 4.5%(20 -80% ) |
|
Working environment |
Temperature |
-10C -70C |
-10 C -70C normal operation |
|
Humidity |
10% -95% |
10% -95% normal operation |
|
Storage environment |
Temperature |
5C -30C |
Storage 5 -30C |
|
Humidity |
30 -90 RH% |
Storage 30 -90 RH% |
|
Device interfaces |
DI |
1 CH |
To detect Firefighting, Burglar, leakage etc. |
|
RS485 |
1 CH |
RS485 interface data acquisition and setting |
|
AC detect |
1CH |
Detect AC failure |
|
Power supply mode |
Telephone line power supply |
Zero-power, phone line power supply |
|
DC12V Power supply |
Only for test |
