Big Diameter Metallized Ceramic Part Metallizing Ceramic Tube (XTL-CVI27)

Name: Big Diameter Metallized Ceramic Part Metallizing Ceramic Tube (XTL-CVI27)
Brand: china-manufacturer-directory.com
SKU: 708555155
Availability: InStock
Rating: 4.7 (123 reviews)

Supplier:	Liling Xing Tai Long Special Ceramic Co., Ltd.
Price:	US $ 1-5/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	XTL-CVI27
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:	Tube\Pipe
Size:	as Per Customers' Request
Surface:	Both Ceramic and Metal Dual Function
Maximum Voltage:	20KV~100KV
Material:	Ceramic
Application:	Insulators
Chemistry:	Inorganic Insulation
Type:	Solid
Thermal Rating:	250 250

Product Description

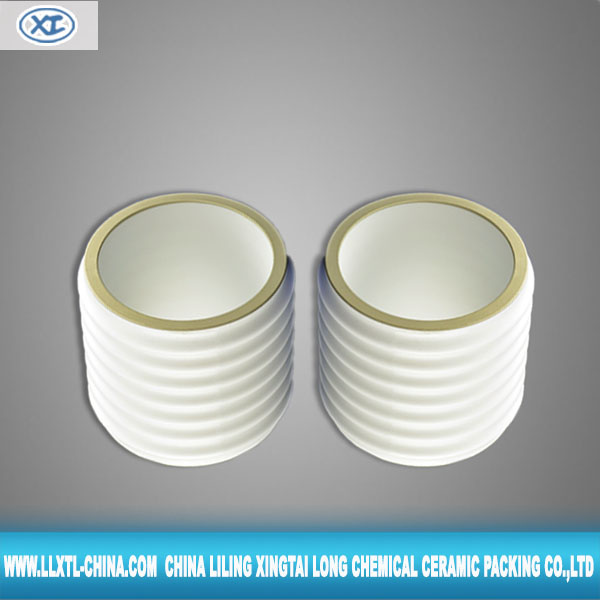

Big Diameter Metallized Ceramic Part Metallizing Ceramic Tube

Features:
1. The frictional times is 300, 000 to 500, 000,
2. Density: 3.6~3.7g/cubic centimeter,
3. Rigidity is 84~86 HRA,
4. The thickness tolerance is less than 0.02mm, the diameter tolerance is less than 0.02mm
5. High precision: Ra 0.2~0.4, linear dimension tol. +/-0.05~+/-0.005mm, roughness 0.005
6. High wear-resistance: Provide 50 thousands of action
7. Can maintain exact action for hot fluid
8. Can be used in high temperature environment, high corrosive applications
9. Can help to realise precision outflow control.

95%,96%,99% alumina ceramic
Major components	95% 96%.99 Al₂O₃
	Density		g/cm 3	3.6
Material properties	Water absorption		%	O
	Sintering temperature		°C	1600-1800
Physical properties	Hardness		HV	1500
	Flexural strength		Kgf/cm 2	3000
	Compressive strength		Kgf/cm 2	25000
	Fracture toughness		Map.m 3/2	3-4
	Maximum temperature		°C	1800
Thermal properties	Coefficient of thermal expansion		/°C	8*10-6
	Heat shock		T(°C)	220
	Thermal conductivity		W/m.k(25-300°C)	25 14
		20°C		>1012
	Volume resistivity	100°C	>.cm	1012-1013
Electrical Characteristics		300°C		>1010
	Insulation breakdown strength		KV/mm	18
	dielectric constant		100MHz(E)	9.5

Liling Xing Tai Long Special Ceramic Co., Ltd. `, is the company who is delighted to establish three series of products, including Chemical Ceramics, Project Ceramics and Ceramic Packing Materials. The main products: Honeycomb Ceramic Serials, Ceramic Ball, Alumina/ALN/BeO Ceramic Plates, Alumina/Silicon Carbide Crucibles and Tubes etc.

With over 20 years experience and ISO9001/SGS passed, we establish long-termed cooperations with noted corporations domestic and overseas:

In China: Sinopec CNPC
China Unclear Engineering Group Co.
Datang Huayin Electric Power Co., Ltd (DHEP)
Jiangxi Copper Corporation (JCC)
---

Overseas: Klarius Group, UK
Claire Lasers Corporation, Canada
MAKIM Makina Teknolojileri San. Tic. A. S. Turkey
OJSC , Russia
---

Our Principle: `Quality First, Customers Supreme`! Focusing in Hi-Te and New materials, will always support to all our customers with best quality & services, to achieve the aim of internationalization in processing and management!

WELCOME FOR YOUR INQUIRY WITH OUR BEST ARDOR AND SERVICES! ! !
