Product Specifications
| Prod Model: |
HBD-3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Digital Brinell Hardness Tester |
| Model: |
Hbd-3000 |
| Testing Range: |
Hbw8~Hbw650 |
| Dwell Time: |
Adjustable 0~60s |
| Hardness Indication: |
LCD Display |
| Output Data: |
RS-232c/Printer |
| Magnification Of Microscope: |
20X Digital Microscope |
| Max. Height Of Specimen: |
225mm |
| Dimension (L*W*H): |
890*720*750mm |
| Gross/Net Weight: |
160kg/130kg |
| Type: |
Vickers Hardness Tester |
| Measuring Range: |
HB |
| Application: |
Ceramics and Glass |
| Standard: |
GB/T |
| Warranty: |
Warranty |
| Rated Voltage: |
110V/220V |
Product Description

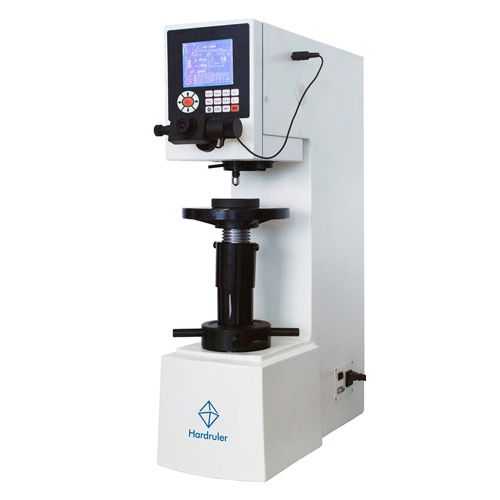

Big LCD Screen Digital Brinell Hardness Tester (HBD-3000)Usage;Brinell hardness tester is mainly used to organize uneven hardness test forged steel and cast iron, forged steel Brinell hardness and tensile tests and gray cast iron has a good relationship.
Brinell hardness tester can be used for non-ferrous metals and mild steel, the use of small diameter ball indenter can measure small size and thin materials. Brinell hardness tester used for testing materials and semi-finished products, due to the large indentation is generally not used for product testing.
Digital
Brinell Hardness Tester HBD-3000 is suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.
Features:1. Accurate reliable and durable tester at a very cheap price
2. Closed loop load technology enhances the accuracy
3. Large LCD screen, menu operated
4. Brinell video microscope system optional
5. Accuracy conforms to EN-ISO 6506, ASTM E10, GB/T231.2
| Specifications |
| Product name | Digital Brinell Hardness Tester |
| Model | HBD-3000 |
| Testing load | gf | 62.5,100,125,187.5,250,500,750,1000,1500,3000 |
| N | 612.9, 980,1226,1839,2452,4900,7355,9807,14700,29400 |
| Testing range | HBW8~HBW650 |
| Dwell time | Adjustable 0~60s |
| Hardness indication | LCD display |
| Output data | RS-232C/printer |
| Magnification of microscope | 20x digital microscope |
| Max. height of specimen | 225mm |
| Instrument throat | 135mm |
| Dimension (L*W*H) | 890*720*750mm |
| Gross/Net weight | 160kg/130kg |
| Power supply | 220V or 110V AC, 50 or 60Hz |
| Accuracy | Conforms to EN-ISO 6506,ASTM E10, GB/T231.2 |
