Product Specifications
| Prod Model: |
PZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
9m3 Per Hour |
| Type: |
Concrete Equipment |
Product Description

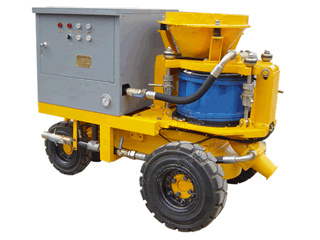

The DY-PZ-9 unit is a big-size sprayed concrete machine for the processing of dry or damp mix and steel (polyment) fibre reinforced shotcrete. The machine can be used thanks to its compact design and mobility where space is at a premium e. G. In mines and galleries. Other potential applications are slope and hillside protection, lining of water tanks and swimming pools, guniting for single and double shell tunnel construction, backfilling of tubing. It is available in the electric, air or diesel.
Diesel driven sprayed concrete machine;
Shotcrete for tunnels, hydro-power engineering, mines, slope stabilization, etc.
|
Name |
DY-PZ-9 |
|
Output |
9m3/hour |
|
Max. Conveying Distance |
150mfor horizontal; 80m for vertical |
|
Water cement ratio |
below 0.35 |
|
Max. aggregate size |
20mm |
|
Hose inner size |
φ 64mm |
|
Operating air pressure |
9~10m3/min |
|
Engine type |
diesel engine |
|
Basic chassis |
Tyre, skid or railway wheel |
