Big Power Transformer Electronic Transformer (100kv)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal |
1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

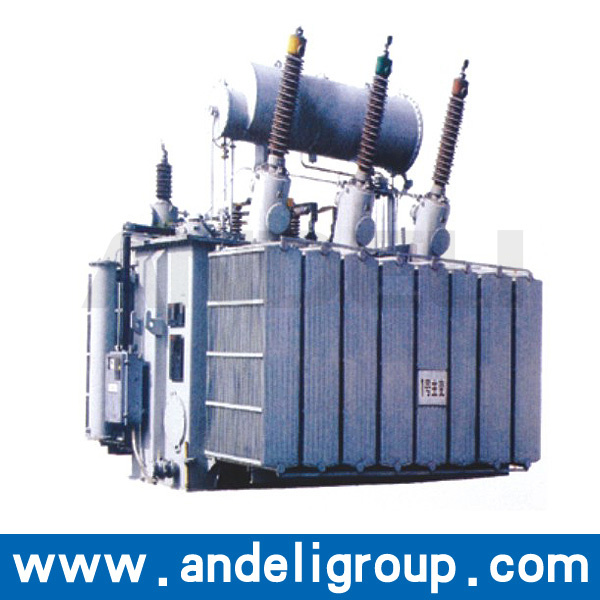

Product description Product description 110KV oil immersed on-load regulation power transformer has a seires of big changes in material, technical and construction with the characters of small size, light weight, high efficiency with low loss and low noise, stable opable operation which cutting down large number of loss from energy GRID and minising operation charge, improving the industrial economic benefit, it is used in power plant, transformer substation, big-sized and chemistry factory and etc. the product is according to national and IEC standards. installation:outdoor ambient temperature: -30C-+40C Altitude: 1000m relative humidity: 90%(25C) About us
Rated capacity (kVA) |
Voltage combination and tap range (kV) |
Vector group |
S9 series |
S10 series |
No-load current (%) |
Short-circuit inpedance (%) |
HV |
LV |
No-load loss |
load loss |
No-load loss |
load loss |
6300 |
110±2*2.5%
121±2*2.5% |
6.3
6.6
10.5
11 |
Ynd11 |
9.3 |
36 |
8.4 |
34 |
0.77 |
10.5 |
8000 |
11.2 |
45 |
10.1 |
43 |
0.77 |
10000 |
13.2 |
53 |
11.9 |
50 |
0.72 |
12500 |
15.6 |
63 |
14.0 |
60 |
0.72 |
16000 |
18.8 |
77 |
17.0 |
73 |
0.67 |
20000 |
22.0 |
93 |
19.8 |
88 |
|
0.67 |
25000 |
26.0 |
110 |
23.4 |
105 |
0.62 |
31500 |
30.8 |
133 |
27.7 |
126 |
0.60 |
40000 |
36.8 |
156 |
33.1 |
148 |
0.56 |
50000 |
44.0 |
194 |
39.6 |
184 |
0.52 |
63000 |
52.0 |
234 |
46.8 |
222 |
0.48 |
75000 |
13.8
15.75
18
20 |
59.0 |
278 |
53.1 |
264 |
0.42 |
12-14 |
90000 |
68.0 |
320 |
61.2 |
304 |
0.38 |
120000 |
84.8 |
397 |
76.3 |
377 |
0.34 |
150000 |
100.2 |
472 |
90.2 |
448 |
0.30 |
180000 |
112.5 |
532 |
101.3 |
505 |
0.25 |
Prod Model: |
100kv |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Phase: |
Three |
Coil: |
Core-type Transformer |
Cooling Method: |
Oil-immersed Type Transformer |
Winding Type: |
Separated Winding Transformer |
Application: |
Instrument |

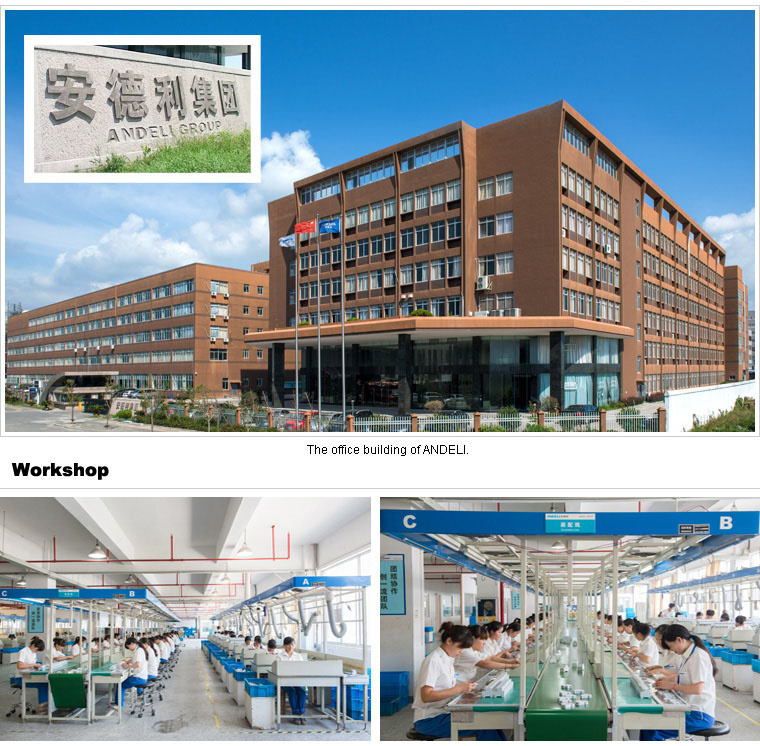

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.
With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.
Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.
Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.
Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
