Zhengzhou Dayu Machinery Co., Ltd. >> Big-Size Driving Type Cold Solvent Road Marking Machine (DY-BSAL-II)

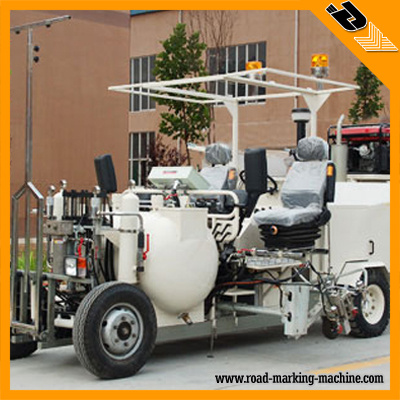

Big-Size Driving Type Cold Solvent Road Marking Machine (DY-BSAL-II)

Name: Big-Size Driving Type Cold Solvent Road Marking Machine (DY-BSAL-II)
Brand: china-manufacturer-directory.com
SKU: 670689132
Availability: InStock
Rating: 5 (122 reviews)

Supplier:	Zhengzhou Dayu Machinery Co., Ltd.
Price:	US $ 10000-150000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	DY-BSAL-II
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine:	37kw
Driving Speed:	0-22km/H
Paint Tank:	500kg
Size:	530016502300mm
Weight:	2650kg
Type:	Road Marking Machine

Product Description

DY-BSAL-II Big-size Driving Type Cold Solvent Road Marking Machine is compared to DY-BSAL-I, just different from pre-marker system and glass beads bin, other technical data are basically same as DY-BSAL-I.

No.	Item	Technical Data
1	Engine	37HP water-cooled electrical starting diesel
2	Driving speed	Forward: 0-22km/h, back off: 0-12km/h
3	Glass bead bin	172L
4	Paint tank	500kg
5	Paint pump	Double hydraulic-driven plunger-type spraying pump. Max flow per pump: 20L/min, Max spraying pressure: 20Mpa
6	Spray width	100-450mm
7	Pre-marker system	Can pre-mark when marking line
8	Dimension	530016502300mm
9	Weight	2650kg
10	Spray gun	4 new-type pneumatic spraying guns and 1manual spraying gun with lengthening pipe with reverse washed nozzle(42/20 or 70/20). The four guns can be started at the same time if construction needs.
11	Available paint	Cold solvent, water-based and two-component road marking paint
12	Control system	PLC micro-electronic system can freely change the line types such as single or double continuous line and all kinds of broken lines. And some function eg: paint measuring, line length and area measuring and line thickness reminding to the marking operation convenient and fast etc. also can be equipped according to the users' needs.

Zhengzhou Dayu Machinery Co., Ltd. is a leading machinery supplier in China. With CE, ISO9001, GOST certificate.

Product scope including:

1. Road Marking Machinery
Thermoplastic paint road marking machine
Cold solvent paint airless road marking machine
Cold solvent paint air-auxiliary road marking machine
Two component paint road marking machine
Thermoplastic paint pre-heater
Road marking remover
Auxiliary road marking machinery

2. Concrete and Mortar Transportation Equipment
Concrete pump
Trailer concrete pump
Shotcrete machine
Plaster machine
Mortar pump
Grout pump
Mortar spraying machine
Grout mixer

We have dedicated in road marking machinery and construction machinery for many years. Our professional technology will provide turn-key solution for your industrial application.
