Product Specifications
| Prod Model: |
FL-BM500AT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Viewing Head: |
Binocular |
| Achromatic Objectives: |
4X10X40xs100xsoil |
| Eyepiece: |
Wide Field Eyepiece Wf10X / Wf16X for Choice |
| Stage: |
Double Layer Mechanical Stage Size 140X140mm |
| Focusing: |
Focusing Range 30mm,Focusing Interval 0.002mm |
| Condenser: |
Abbe Na=1.25 with Lris Diaphragm&Filter |
| Iiiumination: |
Halogen Lamp 220V/6V20W or 110V/6V20W |
| Option: |
Quintuple LED Light |
| Filters: |
Blue |
| Dust Cover: |
Yes |
| Type: |
Biological |
| Principle: |
Optics |
| Mobility: |
Desktop |
| Number Of Cylinder: |
Binoculars |
| Magnification: |
>1000X |
| Shape: |
Cylindrical Shaped Lens |

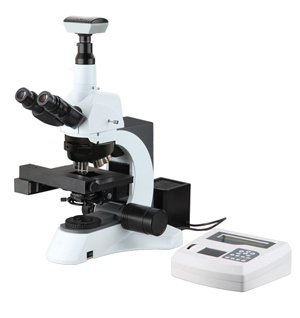

Product Description
Description
· With Four motor drive,objective nosepiece,stage with X,Y,Zdirections can be controlled manually or motorized.
· With adoption of advanced technological digital dimmer,brightness of halogen lamp can be divided into 100 step
· High precisionpositioning leading screw stage, the clearest images quickly receiving by auto-focus and auto slice scanning and
recognizing by computer.
· With built-in dynamic focusing system,achieve the laboratory microscope automation,with network remote control system,widely
used in medical diagnosis,pathological analysis adn real-time teaching etc.
Specification
|
|
BM5000AT |
Optical System |
Infinite Optical System |
|
Viewing Head |
Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm |
|
Camera |
1.3 Mega Pixels CMOS chip |
|
Eyepiece |
Extra Wide Field Eyepiece EW10×/22 |
|
Nosepiece |
Quintuple nosepiece |
|
Objective |
Infinite Plan Achromatic Objective 4×, 10×,20×, 40×, 100× |
|
Stage |
Precision Leading Screw Stage 1um |
|
Condenser |
NA0.9/0.25 Swing Condenser NA0.9/0.25 |
|
Filter |
Blue and Green Filter |
|
Illumination |
Halogen Lamp 24V/100W |
|
Control System |
The Control Box of N-800D Motorized Auto-focus Microscope |
|
Control Software of N-800D Motorized Auto-focus Microscope |
|
Image Analysis Software |
|
USB DOG |
|
PC |
|
Note: Standard Outfit, Optional
