Product Specifications
| Prod Model: |
gdgd |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SUS304/316L |
| Process: |
Concentration and Dry |
| Composition: |
Juice Concentrator |
| Processing Material: |
Juice, Liquid |
Product Description

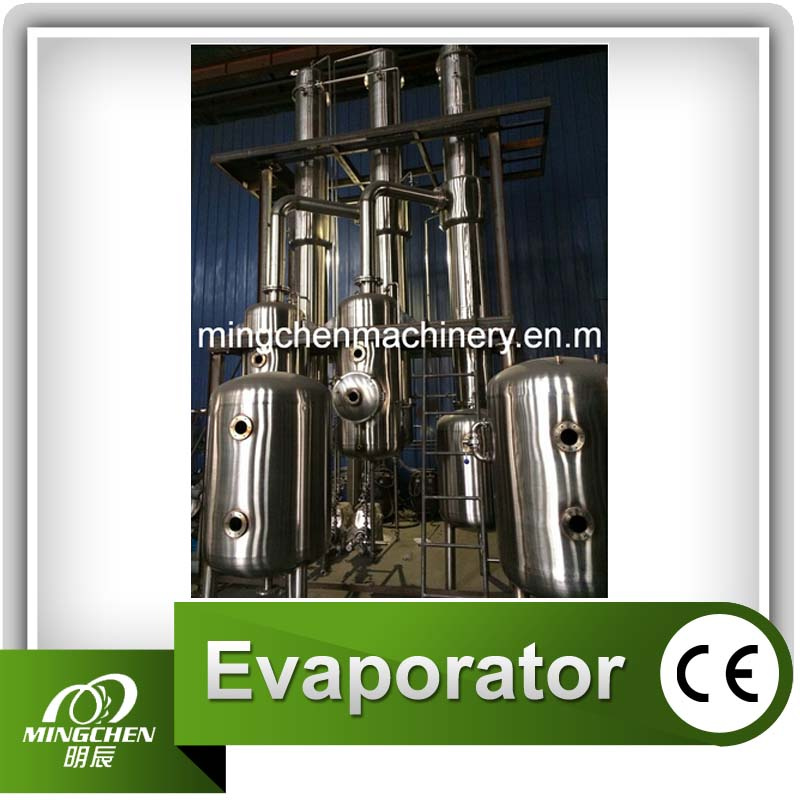

Biochemical Engineering
The machine can widely used in the concentration of the glucose, starch sugar, oligose, maltose, sorbierite, milk, juice, vitamin C, maltodextrin and other aqueous solution. And also widely used in liquid waste disposal such as industry field of gourmet powder, alcohol and fishmeal.
Its outstanding advantage lies in the point that it can fulfill the continuous operation and low temperature concentration of multiple solutions. It saves energy and time with low loss and maximize remain the material's color, fragrance and favor. It can satisfy the continuous production requirements. This product is mainly used in the industries such as food, Chinese and Western pharmaceutical, biochemical pharmaceutical, further processing of agricultural and auxiliary products, health drinks, fine chemical, light industry, PRO-environment etc.
The MCZ3 evaporator series (three effect falling film evaporator) allowed arranging special process flow according to different feature of material. It can also designed according to customer's special requirement.
Characteristic:
A. The three effect falling film evaporator researched into, developed by our company is a high and new tech product among vast pharmaceutical equipments. It classified into 1000-50000kg/h series.
B. Material of contact: All made of stainless steel SUS304 material;
C. The equipment composed of one-effect, two-effect, three-effect heater, one-effect, two-effect, three-effect separator, preheater, composite condenser, hot press pump, vacuum pump, product pump, surge tank, electric cabinet, worktable and all pipelines and valves.
D. Low steam consumption, 1kg steam evaporate 3.5kg water.
E. Low evaporate temperature. Partial of indirect steam re-inhaled into one-effect heater by jet-type hot press pump can make full use of the heat and evaporate temperature are relatively lower.
F. Concentration factor big. Falling film evaporate can make the feed liquid with viscosity coefficient easy evaporate and no scale. The concentration time is short. The concentration ratio is 1: 5.
G. It can achieve automatic operation by control box consisted of electric power, product pump, vacuum pump, vacuum meter and temperature meter
| SPECIFICATION | LJN500 | LJN1000 | LJN1500 | LJN2000 | LJN3000 | LJN5000 | LJN6000 | LJN8000 |
| Evaporating capacity(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 6000 | 8000 |
| Steam pressure(Mpa) | 0.1~0.25 |
| Steam cost(kg/h) | 185 | 370 | 555 | 740 | 1110 | 1850 | 2220 | 2960 |
| Recycling water cost(t/h) | 5 | 10 | 13 | 15 | 18 | 25 | 30 | 40 |
| Weight(kg0 | 2060 | 2480 | 3280 | 4200 | 4860 | 5770 | 6430 | 7600 |
| Dimension(mm) | 7080*900*3500 | 7680*1000*4000 | 8380*1100*4600 | 8890*1200*4600 | 9500*1300*4900 | 10200*1400*5300 | 10800*1500*5800 | 11500*1600*5800 |
|
| Vacuum degree(MPA) | Evaporation temperature(c) |
| First effect | -0.047~-0.052 | 80-85 |
| Second effect | -0.069~-0.072 | 70-75 |
| Third effect | -0.075~-0.081 | 45-52 |
Zhejiang Mingchen Machinery Science and Technology Co., Ltd., integrating scientific research, design, development, production, installation, after-sale service and consultation, is a high-tech industrial economic entity specializing in producing machinery, equipment such as evaporator, stainless steel tank, fermentor, alcohol(ethanol) production line, Ossein production line, tomato production line, juice production line etc. Its diversified and high quality products have met various demands in the fields of pharmacy, biology, chemical industry, food, dairy, beverage etc.
With the rapid progress of science and technology and the booming development in the information age, by adhering to the traditional operation concept and relying on rich experience in technology, we specialize in producing various tank products for traditional Chinese medicine extracting and concentrating, preparations and fine chemicals, packing machinery, small and medium-sized production lines and other series of products. All procedures including function design, energy data, material selection, welding technology, in-process quality control and appearance beautification are carefully planned and strictly controlled. The products are comparable to those in Europe, America, Japan and other countries and areas. The product quality conforms to the sanitation inspection standards for auxiliary equipment used in food, dairy, beverage and other industries.
Mingchen Machinery introduces specialized technologies from Japan to improve product quality and technical level. With new manufacturing technology, unique flat plate type forming hydraulic end plate, advanced welding, weld pass stress elimination and other cutting-edge production technologies, we are engaged in the R&D and promotion of product functions and service life. The products are in accordance with various quality requirements and inspection standards, receiving deep favor from customers.
