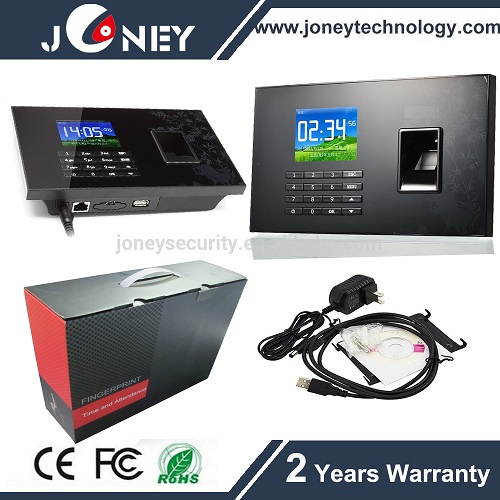

Biometric JYF-C051 Fingerprint Time Attendance Machine Clock Record with Software
With the most advanced one in the world, automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition. High recognition ability for injured and peeled fingers, the identification time is less than 0.8 second.
Built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination.
2.8 inch TFT color screen
Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & sharing freely
Supports 11 and 18 digits for user ID registration, user also could enroll mobile number for ID numbers.
Authentication modes are 1:1 and 1:N, user can register ten fingers, max enrollment is 2,000 fingerprint fingerprint and 100,000 records. Warning function for full records and inquiry log functions.
Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development
Support English, Germany, Spanish ect different languages.
1. Easy to install
2. Large Capacity to storge
3. P2P Funcion Optional
4. English Version , other languages can be customized
5. Short Delivery time
Tecnical Specifications : |
Model |
JYF-051, |
LCD Screen |
2.8 inch TFT Color Screen |
Fingerprint Sensor Resolution |
500DPI (Optical sensor) |
Hardware Platform |
ZDC2911 |
Algorithm Version |
RSFv5.1 |
CPU |
ARM926EJ CPU, Running Frequency: 200MHZ |
Communication |
TCP/IP, USB Memory Disk, USB cable |
User Capacity |
2,000 |
Records Capacity |
100,000 |
Software OS |
XP/Win2003/Vista/Win7/Win8 (32bit / 64bit) |
Identification Time |
< 1 S |
Authentication Method |
Fingerprint/ RFID Card (125Khz, EM4100) /Password |
Language |
Chinese / English / Spanish/Arabic/ German (could customize others) |
Bell |
Built-in timing bell |
Operation Mode |
Off-line/Online |
Power |
DC 12V/0.5A |
FRR |
<1% |
FAR |
<0.00001% |
Operating Mode |
Off-line/On-line |
Authentication Mode |
1:1, 1:N |
Operating environment |
Operating Temp: 0°C-50°C, Humidity:80% |
Certificates |
CE, ,FCC,UL ,Type Inspection Report of Chinese Police Product |
Dimension(L*W*H)mm
|
Terminal - 210*125*39mm
Package -325*105*258 mm |
Weight |
Terminal - 0.411 Kg
Package - 0.926Kg |
