Biowaste Inactivation System
Product Specifications
| Prod Model: |
RT-BIM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing Methods: |
Combined Water Treatment |
| Pullution Sources: |
Water Pollution Control |
Product Description
Description:
In the process of bio experiment and cell cultivation, some active organisms will be produced in the bio pharmaceutical industry, which must be inactivation firstly, and then it could be exhausted into biochemical pool. The Bio chemical sewage inactivation system is mainly applied to biochemical sewage inactivation treatment system, such as bio experiment, cell cultivation, bio-fermentation, virus vaccine and blood products, etc.

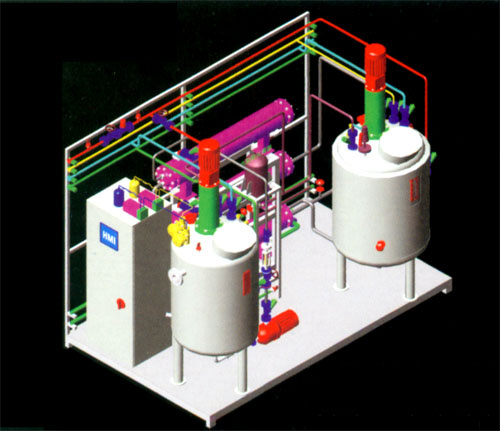

Operational principle
1.Collection tank
Collect biochemical sewage into collection tank. System will automatically adjust PH while liquid level is up to set level; self-absorption pump will start transferring sewage to sterilization device while PH is at set value; self-absorption pump will automatically stop while liquid level down to low level.
2.Inactivation device
Biochemical sewage will be transferred to inactivation device through self-absorption pump, which will be heat to 100-125 celcius degrees, then transferred to in-activation tank.
3.In-activation tank
Biochemical sewage will be heated again to 125 celcius degrees at least, and keep for a while, biochemical sewage will be transferred into cooling device by pressure.
4.Cooling device
Biochemical sewage will be cooled by cooling device, and it will be automatically transferred into sewage pool while its temperature low down to set temperature.
5.Tail gas treatment device
In the process of collecting biochemical sewage to collection tank and inactivation tank, the gas inside of tank will be in and out. However, the gases can not be directly exhausted to the ambient due to it contain kinds of various microorganism. So these tail gas must be inactivation treatment , and then exhausted to the ambient after through tail gas treatment device ( temperature is higher than 300 celcius degrees).
6.Cleaning device
Water supply pipeline which belongs to the pipelines between collection tank and sewage heating zone will be automatically opened after each biochemical sewage treatment. Water supply pipeline will be completely cleaned so as to prevent sewage from scaling and plugging at heating zone.
7.Control system
SIEMENS PLC control system
Characteristics:
.100% sterilization is available
.Auto temperature control
.PH Auto PH regulation
.Total enclosed, none contaminated
.Safety interlock can prevent untreated sewage from being exhausted.
.Intellectualized control, pressure,temperature,liquid level with limit alarm function and failure alarm function
.Meets bio experiment safety requirement
Shanghai Ritai Medicine Equipment Project Co., Ltd. Mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, valves and piping system which are widely used in the following fields, such as chemical, pharmaceutical, biological, and food industry.
Shanghai RITAI, a member of Chinese Pharmaceutical Equipment Industry Association and Shanghai Special Equipment Management Association, regards ISO9001 as its basic guarantee of quality management system, and is qualified to manufacture and design special equipments (I, II pressure vessels) with manufacture and design license of special equipment people' S republic of China, and American ASME (U)stamp and EU PED/CE.
Shanghai RITAI, with high technology and advanced equipment, provides clients with integrated services including design and fabrication, which are in accordance with the standards and code of GB, ASME, PED, etc, and also including installation, debugging, training and after-sale service. Not only are our products sold well in China, but also we have exported our products to Italy, Holland, Australia, India, Egypt, Indonesia, Saudi Arabia, Malaysia, etc.

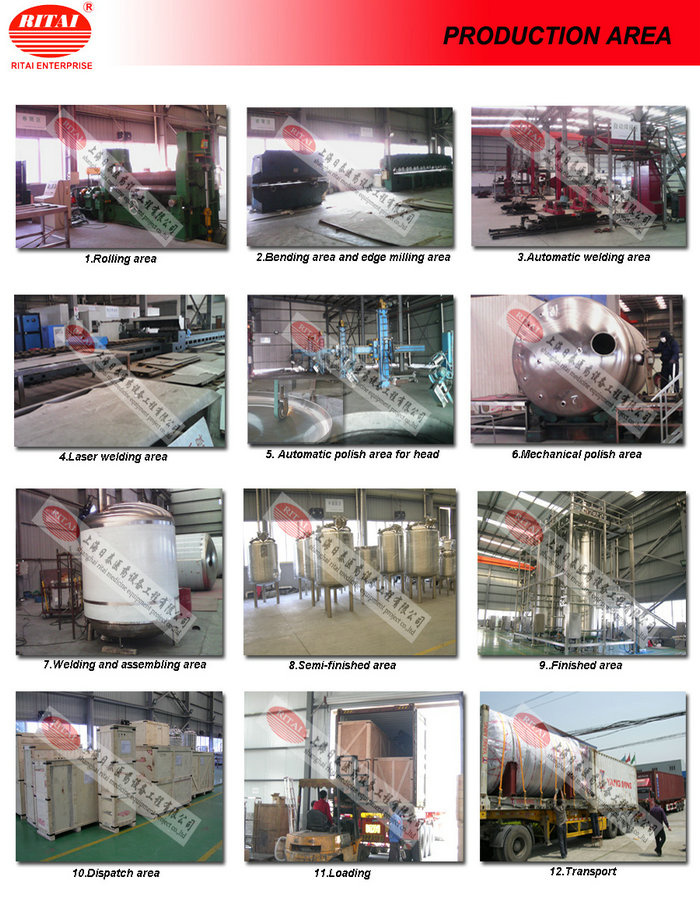

More than fifteen years efforts have made Shanghai RITAI accumulate rich experience in technology and quality management for the design, fabrication. We possess advanced technology in stainless steel thin plate forming, welding, electro polishing and mechanical polishing, etc. Product is manufactured strictly according to the requirement of GMP and FDA, and various quality indexes have attained an advanced level worldwide. It enjoys a good reputation both in domestic and international market for performance, outline, span life and services.
"Quality first and customer first" is our tenet. Our goal is simply to furnish high quality products at competitive prices in the global market and delivering to meet the challenges required in the todays business environment. We sincerely welcome friends from around the world to cooperate with us to have a brilliant future.
