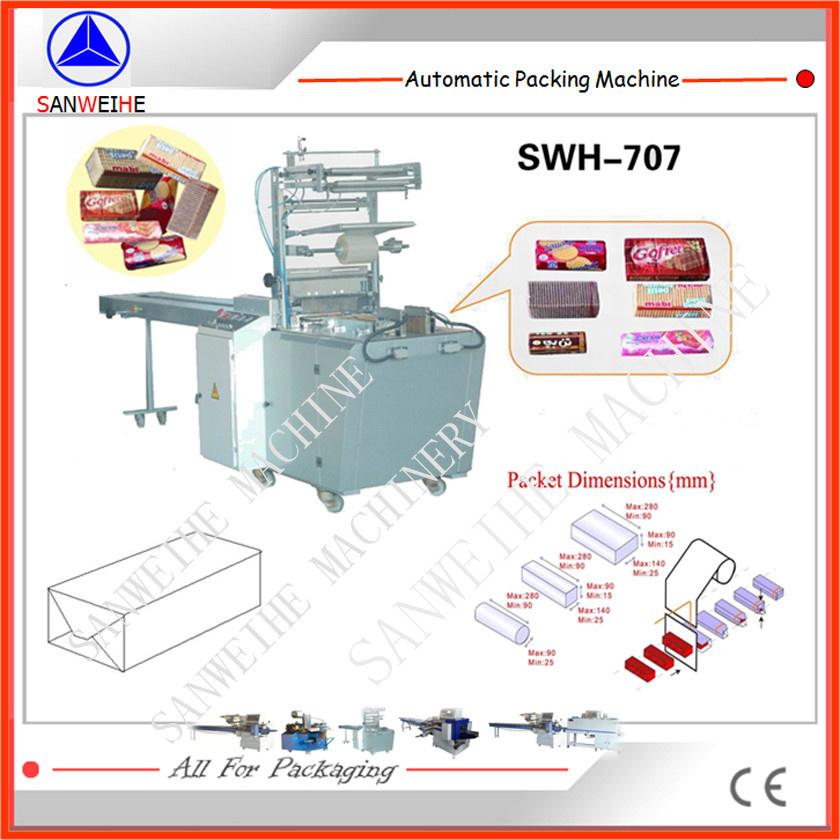

Biscuit Automatic Over wrapping packing machinery
Description about the Packing machinery :
Without Tray Automatic Cellophane Over wrapping packing machinery is the biscuit packing machinery that carriesthe different types of products (e.g. round, rectangular, square, elliptical,angular) with the different measurements by the help of its transporter and realizes packaging in the envelope form(End-folding type) by wrapping from above and sticking from the edges.
Features of the packing machinery :
Easy tear strip and beautiful appearance.
Saving packing material and the box space.
Adoptingphoto-electrical eye control system ensures correctly cutting position.
Engine stops in case of overload, High safety function.
Comparing with the manual sealing, could saving 10-15 laborcost
Capacity: 45-50 packet/minute. (capacity varies depending on product type and packing material)
Infeed conveyor and chains are made of stainless steel
All the parts on the machine are stainless steel
All stroke adjustments can be done.
Speed adjust is done by digital device
Max diameter 80mm biscuits can be packed.
Circular, rectangular, square and oval products can be packed.
Single cutting blade.
Photocell hit system of machine is done by pneumatic piston
Cams are hardened after grinding.
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machinery for your specific need
3. Our professional workers will make the perfect packing machinery for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machinry
FAQ: biscuit packing machinery
Q: When you can finish the machine at earliest. Please inform. As we need the machine ASAP.
A: We can finish the machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is double sides heat sealable film
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us
the spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
problem, we will help you to solve the problem freely, we will also send the spare
parts for replacement, of course the spare parts are not for free
Main technical parameters of packing machinery |
Machine measurement(L*W*H): | 4800MM*1100MM*1850MM |
Weight: | 900kg |
Total power: | 4kw |
Feeding voltage: | 220V. 50Hz |
Power: | 3kw |
Stream drawn: | 12A |
Lengthwise heater power: | 600W |
Horizontal seal heater power: | 6*200W |
Engine power: | 1.1kw |
Engine voltage: | 3phase 220V |
Packing speed: | 10-40bags/min |
We are manufacture of automatic packing machinery as well as related equipment for more than 13 years, At present, our products cover five categories of more than ten varieties and their auxiliary products. Our machines include horizontal flow wrapping machine, shrink wrapping machine, Automatic packing machine for mosquito mat, Noodle automatic weighing and packing machine, Tray-free over-wrapping machine, These automatic wrapping machines apply to pack the blocky articles, such as foodstuff, light industrial components, daily necessities, medicine and so on.
As one of the top-leading company for providing quality packing machinery, as we are in manufacturing horizontal flow packing machinery for many years, we offers not only advanced wrapping machinery but also bring a turn-key solution for the packaging to our customers.
Our clients are all over every province of China, also our customers covers many other foreign countries, such as Thailand, Malaysia, Indonesia, Turkey, Poland, Chile, Portugal, Madagascar, Egypt, Iron, Jordan, United Arab Emirates, Uzbekistan, Pakistan, Bangladesh, Myanmar etc.
The company principle in business is that regard the people as the dominant factor, sincere to customers and try to win the market with high quality.
We warmly welcome the inquiries from both China and overseas old and new friends.
