Product Description

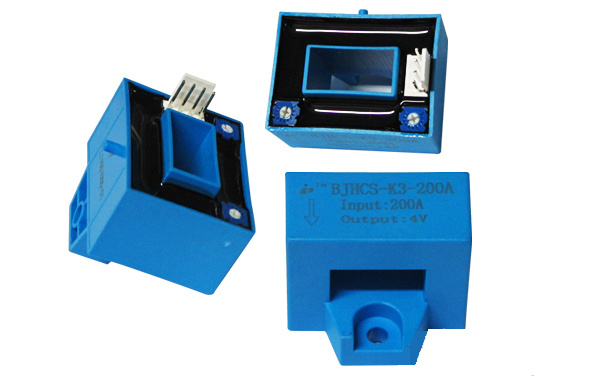

BJHCS-K3 series of open-loop Hall Current Sensors is the application of principles of development of the open-loop current sensor, can measure the DC electrical isolation conditions, exchange, and various irregular pulse current waveform.
Directions for use
1. When tested through the current from the sensor, the output can be measured in the current size. (Note: Incorrect wiring may cause damage to the sensor)
2. Customized according to user needs different rated input current and output current sensor.
3. The specifications for the calibration standard, our company can customize the products according to customer requirements.
|
Product Characteristics |
Applications |
|
· Easy Installation · Small size, save space · Current measurement range · High anti-jamming capability |
· Switching Power Supply (SMPS) · AC variable speed drive · UPS uninterruptible power supply · DC motor drive · Inverter welding machine · Battery applications |
ELECTRICAL CHARACTERISTIC
|
BJHCS-K3 |
-50A |
-100A |
-150A |
-200A |
-300A |
-400A |
-500A |
-600A |
|
Nominal r. m. s current IPN(A) |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
|
Measuring range IP(A) |
150 |
300 |
450 |
600 |
900 |
900 |
900 |
900 |
|
Rated output voltage VO (V) |
± 4.0± 0.5% |
|
Working power VC(V) |
± 15VDC ± 5% |
|
Insulation voltage(V) |
50Hz, 1min, 2.5kV |
|
Static power consumption current Ic(mA) |
15 |
Dynamic characteristics
|
Zero offset voltage VoE @ IP=0, T=25° C |
± 25 |
mV |
|
Offset voltage drift VoE @ -40° C--85° C |
IPN=50A |
≤ ± 1.0 |
mV/° C |
|
Other |
≤ ± 0.5 |
|
Magnetic offset voltage VoH@ -40° C--85° C |
IPN=50A |
± 25 |
mV |
|
Other |
± 20 |
|
Linearity error ε r |
≤ 1 |
%FS |
|
Response time tr |
≤ 3 |
µ s |
GENERAL CHARACTERISTIC
|
Operating temperature |
-40 ~ +85 |
° C |
|
Storage temperature |
-40 ~ +125 |
° C |
|
Actual weight |
65 |
g |
OTHERS
|
Certification |
CE |
|
Quality System |
ISO9000 |
|
ISO14001 |
