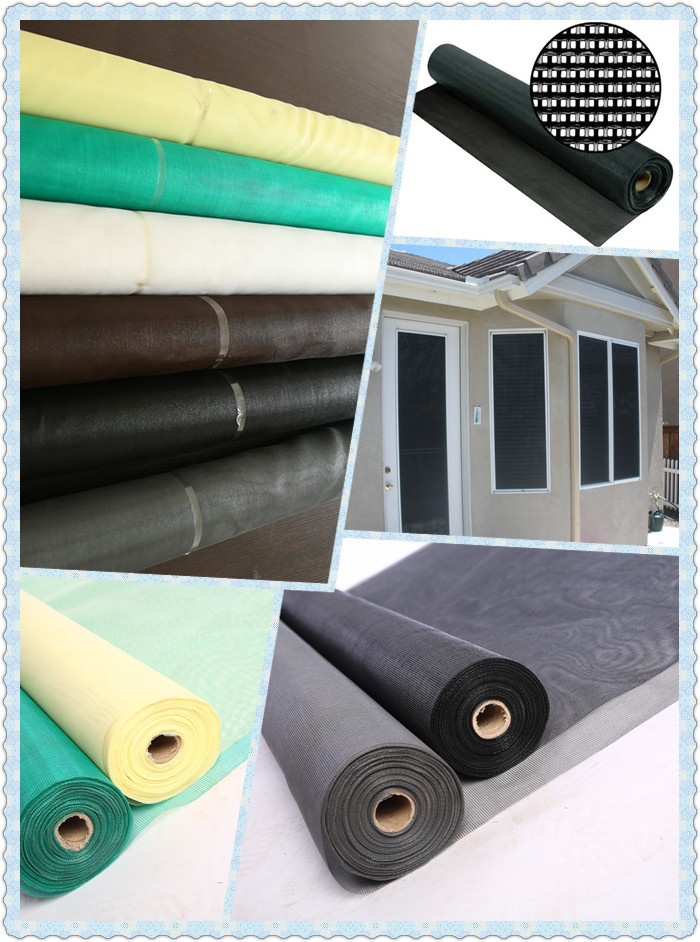

Black/Grey 18*16mesh Fiberglass Insect Screen For Windows/Doors
Description
Fiberglass Mosquito Net has clear advantages. Fiberglass Window Screening/Insect Screen is made of fiberglass under the process of plastic-coating, plain weaving and high temperature-fixing.
CONTACT:
TEL: +86 15637929011
1.specification
Mesh Size: 20x20 18x16 16x16 16x14 14x14mesh
Weight: 90g-120g/m2
Width: 0.5-2.5m
Colors: Black, grey, brown, green,ivory,white,yellow,grey-white,blue
Uselife: 10 years
2.packaging&shipping
Rolling on paper tube, each roll in a poly bag, 1-6 rolls in a carton
Rolling on paper tube, each roll in a poly bag, 6-10 rolls in a woven bag
260 bags/20FCL, 460 bags/40HQ
One 20'container: 75000m2-90000m2
One 40'container: 200000m2-220000m2
Shipping port: Tianjin,Xingang
Delivery Detail: 15-18days for one 20FCL, 45days for one 40HQ
3.Uses:
Fiberglass Window Screening/Insect Screen For Windows/Doors
is used in all sorts of airy installation preventing insects , fly and mosquitoes in construction, orchard, ranch, the upscale office,the housing and each kind of building and so on.
4.Characteristic:
(1)Fiberglass Window Screening/Insect Screen For Windows/Doors
has long service life;
(2)excellent weather resistance, anti aging;
(3)anti-cold, anti-heat, anti-dry and moisture-resistant,flame retardant.
(4)anti-static,light is good, not channeling wire, deformation UV, tensile strength, long life
(5)beautiful shape, well structured.
5.Factory equipment
Drawing machines-------11 sets
Coating line---------------5 lines
Weaving machines--------20 sets
Testing machines-----------8 sets
Our factory have the completed production line of Fiberglass Window Screening/Insect Screen from wire-drawing, pvc-coted and weaving. so the price is competitive and the quality can be controlled.
Width
(cm) | The number of mesh | Breaking strength(N/25mm) | Weave | Roll Length
(m) | Quality g/m2 |
| warp | weft | warp | weft |
| 18± 0.5 | 16± 0.5 | ≥ 260 | ≥ 220 | Plain | 30.48± 0.2 | 115-180 |
| Standard width± 1.0 | 18± 0.5 | 14± 0.5 | ≥ 260 | ≥ 220 | Plain | 30.48± 0.2 | 115-180 |
| 18± 0.5 | 16± 0.5 | ≥ 260 | ≥ 220 | Plain | 30.48± 0.2 | 115-180 |
| 18± 0.5 | 14± 0.5 | ≥ 260 | ≥ 220 | Plain | 30.48± 0.2 | 115-180 |
Description | Specification | Application |
| Mesh | Wire Gauge | Size |
| Galv. iron wire mesh | 10x10 | BWG31
BWG32
BWG33
BWG34 | 3' x100'
4' x100'
1x25M
1.2x30M
1.5x25M | Electric galvanized
after weaving.
White or light-blue |
| 14x14 |
| 16x16 |
| 18x18 |
| 18x14 |
| 22x22 |
| 24x24 |
| 30x30 |
| Enamelled iron wire mesh | Same as above | Green or dark green |
| Aluminium iron wire mesh | Same as above | Silver |
| Aluminium wire mesh | Same as above | Material: Al-Mg alloy or pure aluminium |
| Fiber glass wire mesh | 12x12 | BWG31
BWG32 | 3' x100' 4' x100' 1x25M 1.2x25M | All kinds of color |
| 14x14 |
| 16x16 |
| 16x14 |
| 18x16 |
| 18x14 |
| Plastic wire mesh | 12x12 | Same as above | Mesh 12, 14, 16: hinged weave.
Mesh 18, 22, 24: plain weave
White, blue, green, etc. |
| 14x14 |
| 16x16 |
| 18x18 |
| 22x22 |
| 24x24 |
| 30x30 |
| Stainless Steel Mesh | 14x14 | SWG38
SWG37
SWG36
SWG35
SWG34 | 3' x100'
4' x100'
1x25M
1.2x25M | Material: 304, 316, 316L |
| 16x16 |
| 18x18 |
| 18x14 |
| 20x20 |
