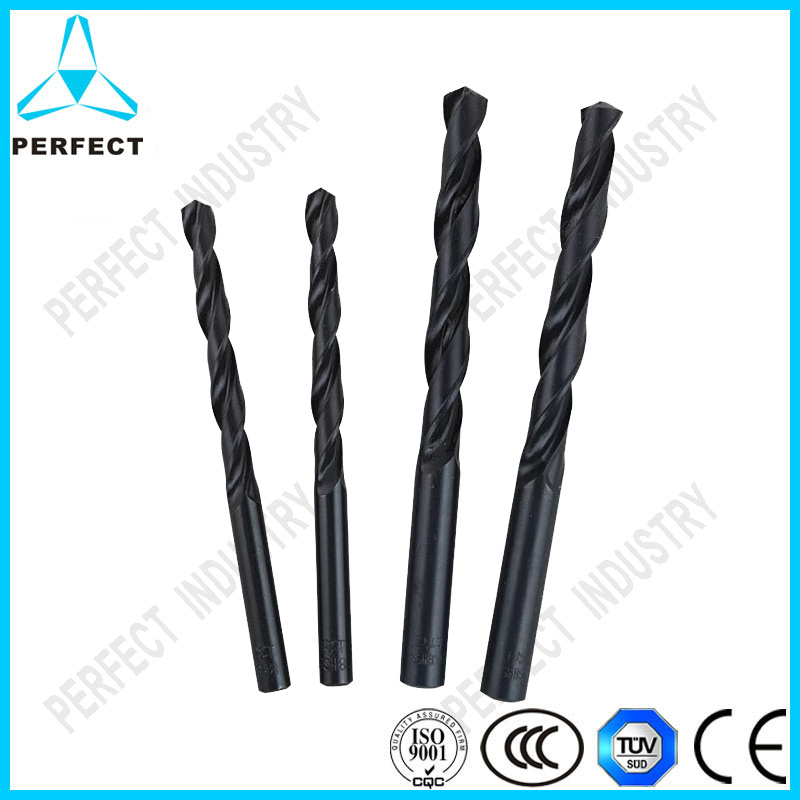

Black HSS W9341 Roll Forged Round Shank Drill Bit

Product Specifications

Prod Model:	PFT0506
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	HSS Drill Bit
Surface Treatment:	Black&White,Titanium,Black Oxide,Rainbow
Point Degree:	118 Degree,135 Degree Split Point
Manufacturing Process:	Milled/Fully Ground/Roll Forged/Roll&Polished
Shank:	Straight/Morse Taper/Reducing Shank
Hardness:	HRC64-65

Product Description

* hot roll-forged flute with special heat treatment gives additional toughness with increased durability of the drill bit.
* 118 degree point angle design for general purpose.
* black oxide finish for greater resistance to wear.
* economical high speed steel bit for general drilling.
* for drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastic.
* 135 degree split point starts on contact in all types of metal, no walking or skating
* fully ground body, black oxide for the most accurate hole dimensions and high concentricity.
* hardened high speed steel body provides additional safeguard.
* for general using in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastic.

 Specifications

dia.	working length	overall length	article number
1.0	12	34	30101001
1.5	18	40	30101002
2.0	24	49	30101003
2.5	30	57	30101004
3.0	33	61	30101005
3.2	36	65	30101006
3.5	39	70	30101007
4.0	43	75	30101008
4.2	43	75	30101009
4.5	47	80	30101010
4.8	52	86	30101011
5.0	52	86	30101012
5.5	57	93	30101013
6.0	57	93	30101014
6.5	63	101	30101015
7.0	69	109	30101016
7.5	69	109	30101017
8.0	75	117	30101018
8.5	75	117	30101019
9.0	81	125	30101020
9.5	81	125	30101021
10.0	87	133	30101022
10.5	87	133	30101023
11.0	94	142	30101024
11.5	94	142	30101025
12.0	101	151	30101026
12.5	101	151	30101027
13.0	101	151	30101028

Other specification is also available according to your requirements. (OEM, ODM )
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!

Shipping
1. FedEx/DHL/UPS/TNT for samples
 2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
 3. Customers specifying freight forwarders or negotiable shipping methods!
 4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
