Blister-Cartoning Packaging Line (DPH260+XWZ120)
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
DPH-260+XWZ-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Driven Type: |
Mechanical |
| Usage: |
Packaging of Goods |
| Packaging Type: |
Cartons |
| Packaging Material: |
Aluminum Foil |
| Applicable Industry: |
Medical |
| Soft And Hardness: |
Rigid Package |
| Packaging Technology: |
Blister Forming, Sealing |
| Application: |
Pharmaceutical Meidicine |
Product Description

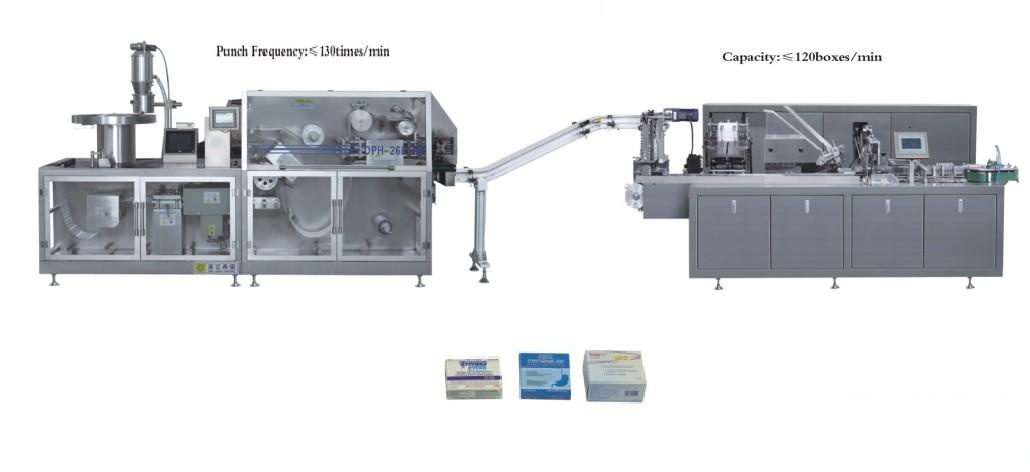

DPH260-XWZ120 Blister-Carton Packaging Line
？
Product Description
This Blister-Carton Packaging Line is combined of the DPH260 High Speed Blister Machine and XWZ120 Cartoner.
· Suitable for packing all common solid dose products, such as tablets, capsules, other smilar medicines.
· The machine can achieve 180 minutes of uninterrupted production thanks to Blister module with forming material reels of up to 600mm in diameter and waste material trimming cutter (optional).
· Capable of all standard types of closure systems for cartons from tuck-in to hot-melt.
· The heart of a Blister Line is the connection between the Blister Machine and Cartoner. In this line, the connection phase is truly innovative thanks to the vacuum suction device and the blister counting magazine that adopt precise servo technology. These accurately control blister transfer, faulty blister rejection, positioning, and feeding, etc., to assure the stability of high running speed.
· This line can be connected to subsequent machines, e.g., Stretch-Banding Machine (Overwrapper) and Case Packer to form a whole production line.
|
Main Technical Parameter for Cartoning Machine: |
|
Capacity: |
80-120 box/min |
|
Box dimension(mm): |
(65-125)X(40-78)X(12-65) |
|
Overall dimension(mm): |
1265*1135*1640 |
|
Net weight(kg): |
1200 |
|
Main Technical Parameter for Blister Machine: |
|
Capacity: |
60-130 stroke/min |
|
Range of stroke(mm): |
20-120 |
|
Overall Dimension(mm): |
3960*1120*1750 |
|
Net Weight(kg): |
2800 |
Hoping Machinery Co., Ltd. established in 2001, has 12 years experices in packing industry, and professional technical team, is a scientific and technological enterprise which incorporates development, manufacture and correlation service from pharmaceutical machines, packing machines, food machines and cosmetic machines into an organic whole.
Main products: Flat Type Al/Pl, Al/Al, Al/Pl/Al Blister Packing Machine, High Speed Blister Packing Machine, Auto Cartoning Machine, Auto Packing-Cartoning Line Machine, Gel Mask Packing Machine, Labelling Machine and so on.
Hoping Company is a specialty manufacturer for blister packing machine which with strong technique and production experience and belongs to the unit member of China Pharmaceutical Equipment Association. Various developped packing products have filled up the gaps in China which suitable for GMP standard and acquired various national patents from national concerned authority. And also passed ISO9001 International Quality System Certificate and CE certificate. In 2004, it has been assessed as China Well-known Brand.
The products are well accepted by 40 abroad countries such as USA, Germany, Japan, Australia, Russia, Belgium, Spain, Mexico, Columbia, Denmark, Brazil, Sounth Africa, Peru, Nigeria, Ukraine, Uzebekistan, Egypt, Syria, Jordan, Lebanon, Pakistan, Bangladesh, India, Indonesia, Malaysia, Vietnam, Thailand, Taiwan, Philippines, Singapore, Hongkong and so on.
