Product Specifications
| Prod Model: |
ADS-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Greenfall |
| Automation: |
Automatic |
| Making Method Of Parison: |
Stretch Blow |
| Raw Material: |
PET |
| Computerized: |
Computerized |
| Certification: |
UL |
Product Description
Jiangmen greenfall water treatment technology co, . Ltd has 18 yesr's producing water plant equipments experience mainly manufactures all kinds of RO water treatment equipment, small bottle water production line, 5 gallon water production line, fruit juice filling line, carbonated beverage production line and related apparatus etc.

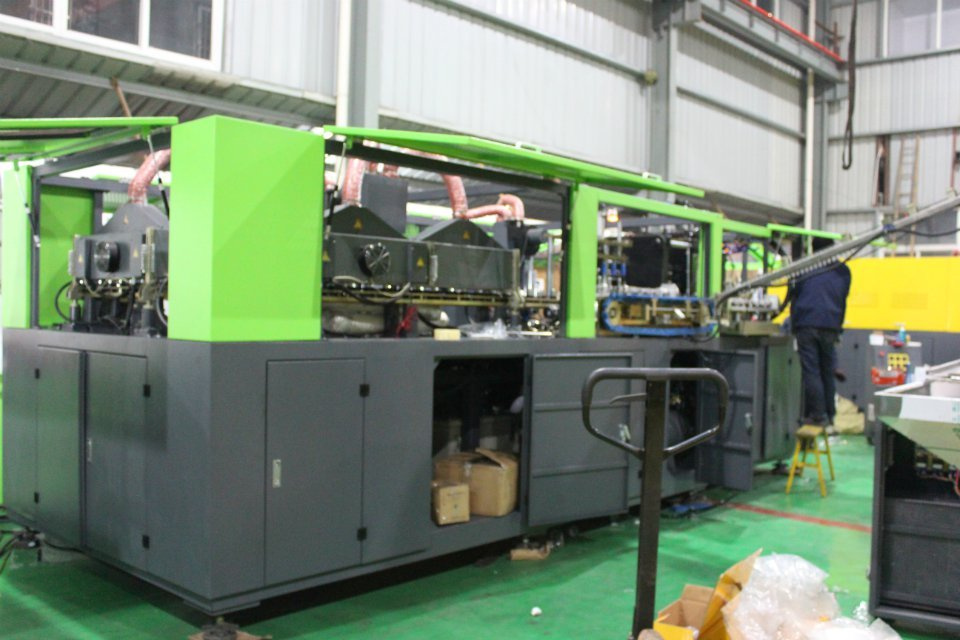

Fully-automatic pet stretch-blow moulding machines(preheat). It has two to eight cavities and the maximum capacity of the products is 2L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 2000BPH(2-cavity), 4000BPH(4-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
Company has passed ISO900: 2000 version quality system certification and all manufacture processes are conducted by the standard strictly.
All products adopt all-around computer aided design(CAD)
All auxiliary parts adopt international and domestic famous brand products
Before delivery time, all complete sets will test run for 3days continuously after quality inspection, they can be transferred to the customers
How to get your suitable machine or production line?
Find our products through JIANGMEN GREENFALL WATER TREATMENT TECHNOLOGY Co., Ltd in google, baidu. Bing, alibaba. COM etc
Enquiry: Contact us by email, phone call, fax, instant messenger and let us know your enquiry.
Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
Quotation: Prices offered and accepted.
Place order as per contract or discussion.
Perform invoice( sales contract ) in duplicate confirmed and kept by both sides.
Payment settled.
Order completed under our arrangement.
Goods shipped as per contracted term.
Goods arrive at local port or warehouse, depending on contracted term.
Support & re-ordering
|
Cavities |
4 |
|
Container Volume |
1.5L |
|
Clamping stroke |
95mm |
|
Mold thickness |
160mm |
|
Stretching stroke |
360mm |
|
Theoretical output |
4400bph |
|
Container diameter |
20-70mm |
|
Container height |
50-300mm |
|
Neck range size |
10-32mm |
|
Electrical volume |
380V/50-60HZ |
|
Total power |
28kw |
|
Use power |
12kw |
|
Working pressure |
8bar |
|
Blow pressure |
30bar |
|
Low air consuming |
2.0m 3 /min |
|
High air consuming |
2.0m 3 /min |
|
Water Consuming |
20-30L/min |
|
Size(LXWXH) |
5.0m*1.4m*2.0m |
|
Weight |
2000kw |
|
Pass rate |
>=99.6% |
JIANGMEN GREENFALL WATER TREATMENT TECHNOLOGY Co., Ltd Located in China's first overseas Chinese of JIANGMEN. Since 1996 the company since its establishment, our factory purpose is improve water quality, benefit of humanity, fervor-self, contributing to society.
Our factory manufacture complete water plant equipment. Include injection machine, blowing bottle machine, water treatment equipment, ozone system,
Filling machine, labeling machine, packing machine and palletizer etc.
As one of the leading manufacturers in drinking water treatment and bottled water engineering (covering water dispensers) in China, we are pursuing good reputation in the global market also. Our products are selling well in Canada, French, USA, Japan, Korean, Russia and Indonesia. And we have more customers from USA, Mexico, Ecuador, Australia, Singapore, Thailand and Brunei. We have a good beginning in most of African countries.
The main products of the company
1, 2000BPH---20000BPH hot liquid filling, middle temperature beverage production line
2, 2000BPH---36000BPH Mineral water and purify water production line
3, 2000BPH---20000BPH Gas beverage production line(PET, glass bottle)
4, 2000BPH---12000BPH Glass bottle wine complete production line
5, 2000BPH---20000BPH Pulp beverage mixed filling machine
6, 60BPH---1200BPH barrel mineral water, purify water production line
Plastic injection machine, Blowing bottle machine, Mould etc
Bottle unscrambler, Labeling machine, Shrink packaging machine, etc
Ozone system, ultraviolet sterilization system, air shower, laboratory equipment etc
Purified Water Treatment Equipment, Mineral Water Treatment Equipment, Seawater treatment Equipment, Brackish Water Treatment Equipment, etc.
Providing "Quality Products, Excellent Service, Competitive Prices and Prompt Delivery", we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. If you are interested in our products, please feel free to contact us for more information.
