Blue Soldermask 4 Layers Enig IC UL RoHS Certification Board PWB

Name: Blue Soldermask 4 Layers Enig IC UL RoHS Certification Board PWB
Brand: china-manufacturer-directory.com
SKU: 727196515
Availability: InStock
Rating: 4.6 (91 reviews)

Supplier:	Kaige Group Co., Ltd.
Price:	US $ 0.0001/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	KG-M4-019
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rigid Circuit Board:	Fr4 4 Layers Computer PCB
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

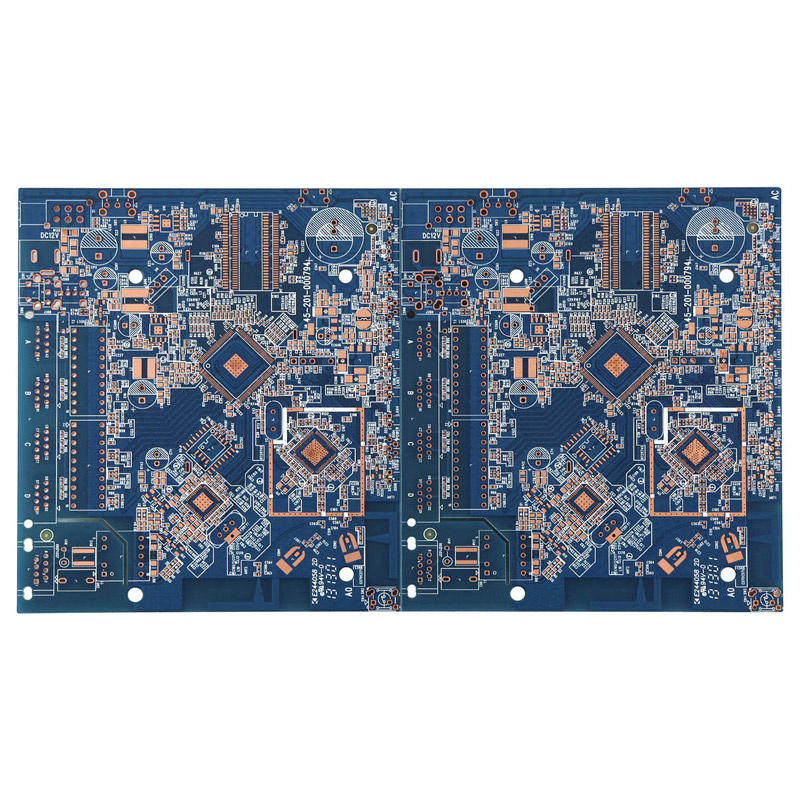

？？Model No.:？？？？？？？？？？？？？？？？？？？？？？KG-M4-019 ？ Number of Layers:？？？？？？？ 4L？？ Base-Material:？？？？？？？？？？？？？？？FR4 ？ Thickness:？？？？？？？？？？？？？？？？？？？？？？？1.6mm+/-10% ？ Final-Cu:？？？？？？？？？？？？？？？？？？？？？？？？？？35um？？？ Impedance:？？？？？？？？？？？？？？？？？？？？No ？ Blind and buried via:？？？？No ？ Min. Drill hole:？？？？？？？？？？？？？？ 0.2mm ？ Min. Line space:？？？？？？？？？？？？0.1mm ？ Min. Line width:？？？？？？？？？？？ 0.1mm ？ Mech. Treatment:？？？？？？？？ Routing？？ Surface Treatment:？？？？？？ENIG ？？Solder-Mask:？？？？？？？？？？？？？？？？？Blue ？Legend-Print:？？？？？？？？？？？？？？？？ White ？100% E-Test:？？？？？？？？？？？？？？？？？ Yes ？

Item			Mass production	Small batch production
Number of Layers			UP TO 16L	UP TO 30L
Laminate			FR-4, Halogen free, High TG, Cem-3, PTFE, Aluminum BT, Rogers
Maximum board size			610*460mm	762*508
Board thickness			0.3-3.5mm	0.21-6.0mm
Minimum line width/space			0.1/0.1mm	0.076/0.076mm
Minimum line gap			+/-15%	+/-10%
Outer layer copper thickness			140um	245um
Inner layer copper thickness			70um	245um
Min.finished hole size(Mechanical)			0.2mm	0.15mm
Min.finished hole size (laser hole)			0.1mm	0.1mm
Aspect ratio			10:01	20:01
Solder Mask Color			Green\Blue\Black\White\Yellow\Red\Grey
Impedance control Tolerance			<=+/-10%
Surface Treatment	Flash Gold		0.025-0.075um	0.025-0.5um
	Immersion Gold		0.05-0.1um	0.1-0.2um
	Sn/Pb Hasl		1-70um
	Leadfree Hasl		1-70um
	Immersion Silver		0.08-0.3um
	OSP(Entek)		0.2-0.4um
	Gold Finger		0.375um	>=1.75um
	Hard Gold Plating		0.375um	>=1.75um
	Immsion Sn		0.8um
V-Cut		V-Cut degree	20,30,45,60
Outline Profile	Chamfer	The angle type of the chamfer	30,45,60
	Plug via hole	Max.size can be plugged	0.6mm	0.7mm
	Largest NPTH hole size		6.5mm	>6.5mm
	Largest PTH hole size		6.5mm	>6.5mm
	Min.annular ring can be kept		0.15mm	0.1mm
	Min.distance between the IC pads can keep Sm bridge		0.25mm	0.18mm
	Min.SM bridge for green soldermask		0.1mm	0.076mm
	Min.SM bridge for black soldermask		0.125mm	0.1mm
Tolerance of dimension size			<=+/-0.13mm	+/-0.1mm
Tolerance of board thickness			>=1.0mm +/-10%	+/-8%
			<1.0mm +/-0.1mm
Tolerance of finished NPTH hole size			+/-0.05mm	+/-0.05mm
Tolerance of finished PTH hole size			+/-0.076mm	+/-0.05mm
Delivery time			Mass:10~12d	Sample:5~7D
Capacity			60000sq/m
CAM capability			20 Items	100-180Items
