Product Specifications
| Prod Model: |
bnc |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package Size: |
118mm*63mm*36mm |
| Type: |
Signal Type Arrester |
| Structure: |
Protective Gap |
| Installation: |
Tandem Arrester |
Product Description
Product Description

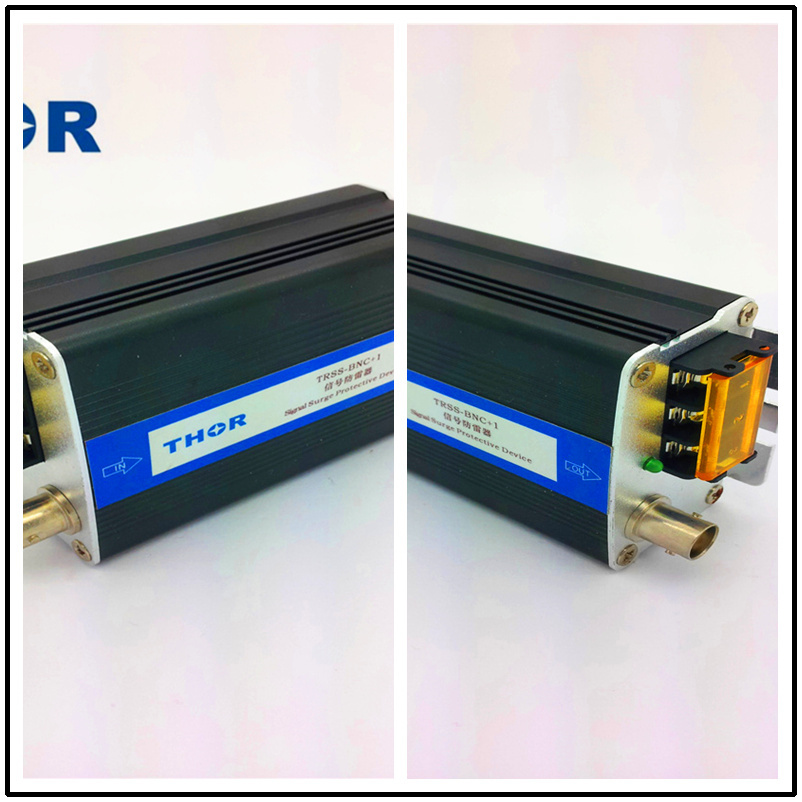

TRSS series CCTV multi-function surge protective device(in short:SPD,alias:surge arrester)is suitable for monitor vidicon with/without cradle head terminal(DC/AC),and multi-function integration design,convenient installation,connected in series and fully protective the video equipments.
Two-in-one surge arrester applicable for monitor video /audio signal with voltage 220V(AC).
Product Features
1.multi-function over-voltage protection,simple structure,less residual voltage,rapid transmission rate.
2.Applicable for combination video signal and AC power.
3.Convenient installation,maintenance simply,LED indication.
Application Scope
1.monitor video with cradle head.
2.Monitor video without cradle head.
3.Other signal equipments.
Technical Parameter
| Model and specofocation |
| TRSS-BNC+1 |
| Protection specification |
| Video | Power supply |
| Max continuous operating voltage | Uc(V) | 5V/24V | 100V/220V |
| Voltage protective level | Up(V) | 300V |
| Nominal discharge current | In(8/20μS)KA | 5 |
| Response time | ns | ≤1 |
| Insertion loss | dB | ≤0.5 |
| Configuration dimension | mm | 118×63×36 |
| Interface mode |
| BNC |
| Operating condition |
| Temp:-40ºC~+70ºC |
| RH≤95%(25ºC) |
| Sea level elevation≤3km |
| Remarks |
| Other max continuous operating voltage can be customized |
Zhejiang Thor Electric Co., Ltd. is a professional enterprise specialized in producing surge protectors. Our company is located in Liushi.
Our company currently provides up to 60 kinds of surge protectors. We also provide surge protectors according to customers' requirements.
With strict management, standardized production workshops, advanced ERP management system, efficient workers, and professional technical personnel, we are providing customers with high quality and cheap products.
We welcome the friends from all over the world to negotiate with us for the cooperation and development of lightning over-voltage protection market.
Our goals: To become a professional company of designing and manufacturing over-voltage protection products and lightning products.
Business:
Full range of mine supply
Lightning Products spare parts supply
Behalf of the delivery of product testing testing organizations
Lightning Products invites agents around
Product mold design and manufacturing
Quality assurance:
ISO 9001 Quality Management System Certification
CE and RoHS certification
Lightning protection device by Beijing Testing Center
Lightning protection device by Shanghai Testing Center
Product sold five-year warranty
