Product Specifications
| Prod Model: |
LSPD-CCTV/16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

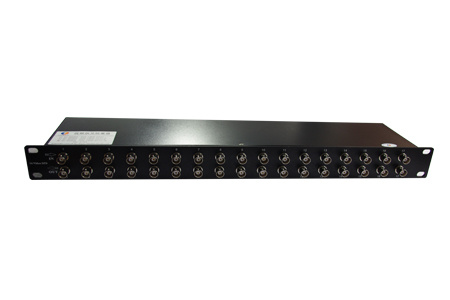

Product Name: BNC Integrated video lightning protection for signal (16 WAY)
Model Number: LSPD-CCTV/16
Features:
1, Video signal device point-to-point protection
2, To protect various video transmission device from being damaged by indirect lightning and surge voltage of signal transmission line, as well as RF transmission under same working voltage
3, Hard disk video and video segmentation machine in Comprehensive control cabinet.
Applications:
1, Multi stage protective circuit, low residual voltage
2, Low insertion loss, quick response
3, Precise limiting voltage, high discharger current capacity
4, Integrated multi channel video signal SPD box is standard 19 inch installation, 16 channels design to change quickly once any one channel does not work
5, Stable performance, reliable work and Easy installation
Technical Parameters:
Model Number LSPD-CCTV/16
Nominal voltage Un 5V
Max. Continuous dc Voltage Uc 15V
Normal discharge current (8/20 us) In 5kA
Max. Discharge current(8/20 us) Imax 10kA
Voltage protection level line-ground Up(1Kv/Isn) ≤ 90 V
Response time tA ≤ 10ns
Insertion Loss Ae (dB) ≤ 0.3dB
Transmission 10M bps
Connector Type BNC/KK
Design 19 inch installation
Protection circuit 16 channels
Housing material Rolled steel
Temperature -25° C ~ +85° C
PS: We can doing BNC Integrated video lightning protection for signal according to your request
