Description
Cable assembly are for the cable of line for the GSM, PCN and every communication system between the cabinet of machine and the cabinet of machine, between the antenna and the trunk cable, between the trunk cable and the cabinet of machine. Model of cable?assembly, the variety is various. User may be according to the need, choice not of the came kind pattern connector of different model and diffevent the cable of length and model buy the cable package. May reduce the user himself load the cost to receive cable, guaranteed the usage mass.

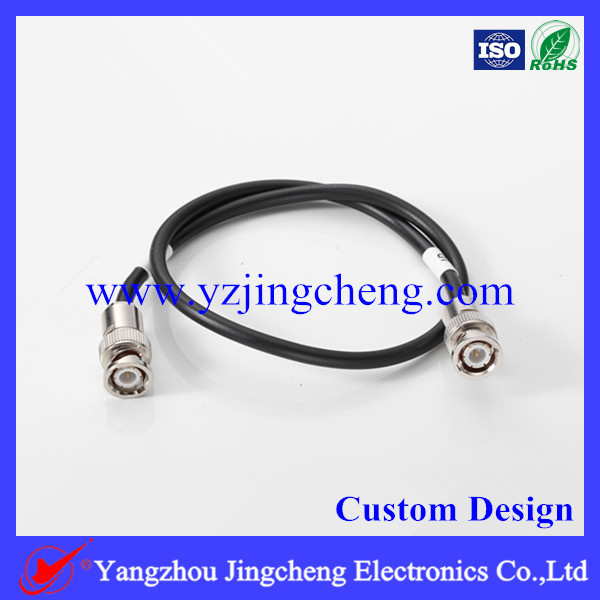

BNC type
Temperature Range: -55~+155° C (PE Cable -40~+85° C)
Impedance: 50Ω , 75Ω
Frequency Range: DC-4GHz
Withstanding Voltage: 1500V r. M. S at sea level
Working Voltage: 500Vr. M. S at sea level
Insertion Loss <= 0.24dB/6GHz
Insulation Resistance >= 5000 MΩ
Contact resistance: CenterContact <= 1.5mΩ
Outer Contact <= 1mΩ
Voltage Standing Wave Ratio: Straight <= 1.22/3GHz
Right angle <= 1.30/3GHz
Durability>= 500(cycles)
RG58
Construction Specification
MaterialDiameter(mm)
1. Inner Conductor Tinned Copper 19*0.18
2. Dielecric Solid Polyethlene 2.95
3. Outer Conductor Tinned Copper Braid 3.45
4. Jacket FVC 4.95
Electrical Characteristics
Capacitance (pF/m): 101.05
Impedance (ohm): 50
Velocity (%): 66
Shielding Effectiveness (>dB): 70
Max. Oper. Voltage (VMS): 1900
Operating Temp(° C): -20 to 80
Attenuation(Typical)
Frequency(MHz) ? Attenuation (>dB/100m)
? ? ? ? 100 ? ? ? ? ? ? ? ? ? 15.1
? ? ? ? 400 ? ? ? ? ? ? ? ? ? 30.8
? ? ? ?1000 ? ? ? ? ? ? ? ? ?50.2
