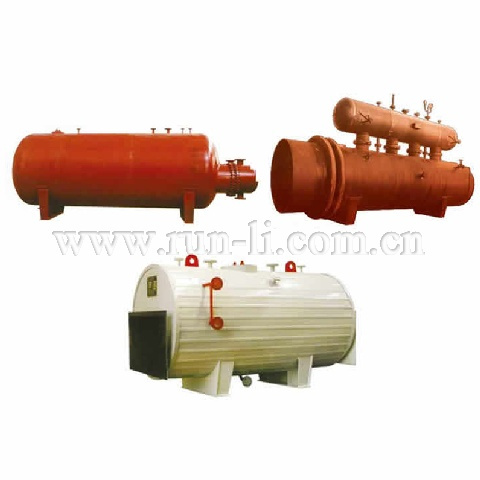

Boiler with Energy-Saving System About Waste Heat Recovery
Price: |
US $ 3800-4000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P |
Runli hot oil boilers have been widely used in textile, chemical, leather, construction materials and other industries over the past 20 years. However, because of high temperature of return oil, generally (200~250), causing the smoke temperature is also high. Under normal circumstances, up to 300~350, which causing a lot of heat wasted in vain into the atmosphere, in today's world energy shortages, the era of rising energy prices, energy conservation has become the country's sustainable development needs.
The company's long-term commitment of energy utilization can provide you a variety of programs and projects of the use of low-temperature waste heat
Modle(×104kcal/h) | 120 | 200 | 300 | 400 | 600 | 800 | 1000 | 1200 |
Exhaust gas temperature | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
Exhaust volume (Nm3/h) | 2800 | 4600 | 7000 | 9300 | 14000 | 19000 | 23000 | 28000 |
Waste heat boiler steam pressure (MPa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Wasted heat boiler steam volume(t/h) | 0.27 | 0.44 | 0.65 | 0.87 | 1.34 | 1.83 | 2.23 | 2.73 |
Equipped with waste heat boiler | 0.3 | 0.5 | 0.8 | 1 | 1.5 | 2.0 | 2.5 | 3.0 |
Smoke temperature before dust collector | 152 | 150 | 150 | 149 | 146 | 149 | 149 | 147 |
Production of steam in one year(t/h) | 1944 | 3168 | 4680 | 6264 | 9648 | 13176 | 16056 | 19656 |
Economic benefits in one year(million) | 0.292 | 0.475 | 0.702 | 0.94 | 1.05 | 1.97 | 2.41 | 2.95 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Place Style: |
Horizontal |
Installation: |
Assembled Boiler |
Structure: |
Fire Tube |
Media: |
Steam and Water |
Water Circulation: |
Forced Circulation |
Drum Placement: |
Horizontal Boiler |
Pressure: |
Pressure |
Manufacturing Level: |
A |
Usage: |
Industrial |
Fuel: |
Wasted Heat |
Burning Style: |
Internal Firing Boiler |
Jiangsu Runli Boiler Co., Ltd is specialized in designing and manufacturing the steam boiler, thermal oil boiler and waste heat boiler in 6 series, such as coal burning, oil (gas), Coal Water Mixture, firewood, saw dust (grate boiler) and electric heating, the heating load varies from 0.5tons to 75 tons per hour. And with more than 150 models. All products produced by the company are widely used for textile, printing and dyeing, timbering, chemistry, central heating supply and other fields.
"Runli" brand product will meet client's personalized requirement with best competitive price, whereas the company will provide all clients best pre-sales and after-sales service, is willing to create a wonderful future with all friends at home and abroad.
