Product Specifications
| Prod Model: |
Leeb222 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
0~1250um |
| Accuracy: |
+/-(1~3%)H+1 |
| Mincurvature Of The Min Area(Mm): |
Convex1.5 Concave9 |
| Critical Thickness Of Substrate(Mm): |
0.5 |
| Memory: |
500 Readings |
| Dimensions: |
150*55.5*23mm |
Product Description

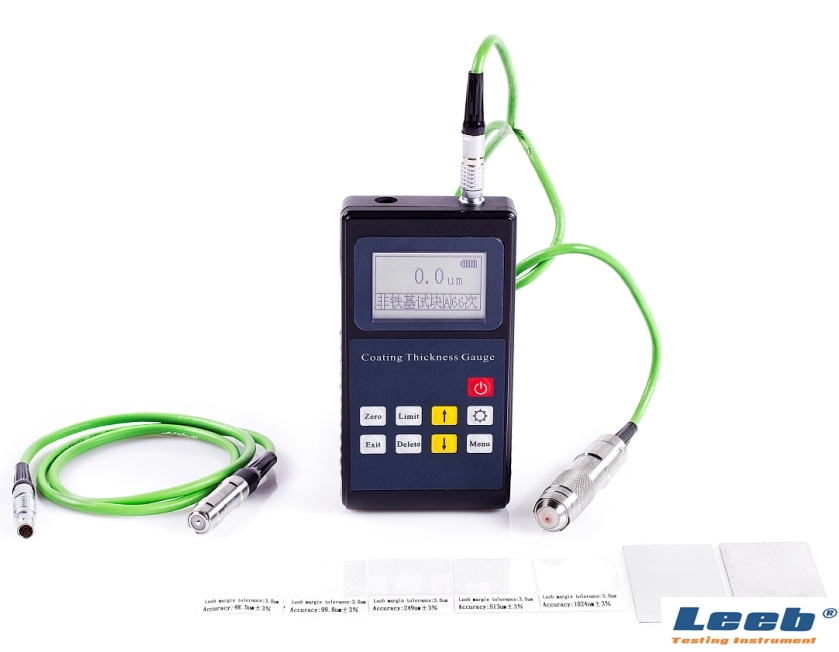

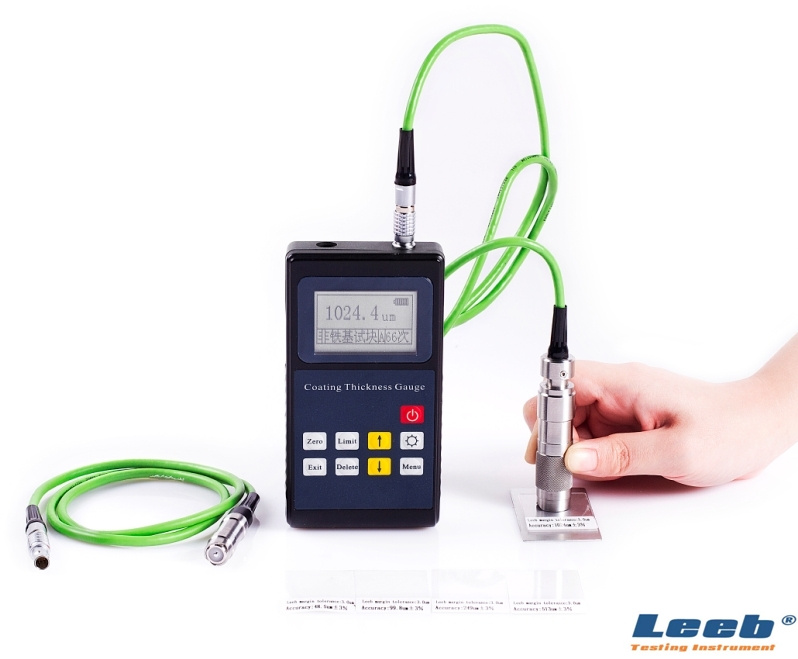

Coating Thickness Gauge leeb222
Function & Feature
l Two probes and working principles : Magnetic induction and Eddy current.
l Two methods of power off: Manual & Automatically.
l Show battery information in real time.
l Limit settings: alarm if one of the measurement data is beyond of the limits.
l Deleting function: You can delete one of the doubtful data and you can also delete all of data in the memory to prepare for new measurement.
l Saving function: capable of 500 sets of measurement value.
l Two optional methods available to calibrate the gauge, and you can calibrate system error of the probe using basic calibration method.
l Five statistical data: Mean Value, Maximum Value, Minimum Value, Measurement, Standard Deviation.
Application Fields
l Coating thickness gauge is mainly used for measuring hull, oil and gas pipeline, high pressure vessel and boiler wall thickness as well as a variety of plate thickness, can be measured material is a delegate with steel metal materials, can be plastic, nylon and other non-metallic materials.
Measuring Material
l Non magnetic coatings on magnetic substrates (such as aluminum, chromium, copper, zinc, tin, rubber, paint on the steel, iron, alloy and magnetic steel) non conductive coating on non magnetic metal (such as rubber, plastic, paint, oxide on aluminum, copper, zinc, tin)
Technical Specification
| | leeb222 |
| Operating principle | Magnetic induction or Eddy current |
| Measuring range (µm) | 0~1250μm |
| Accuracy | ±[(1~3%)H+1] |
| Low range resolution (µm) | 0.1μm |
| Min curvature of the min area (mm) | Convex1.5 Concave9 |
| Diameter of the min area (mm) | Φ7 |
| Critical thickness of substrate (mm) | 0.5 |
| Operating temperature | 0ºC~40ºC |
| Dampness | 20%~90% |
| Magnetic field | No strong magnetic field environment |
| Memory | 500 measured data |
| Dimensions | 150×55.5×23mm |
| Power supply | AAA Alkaline battery |
| Standard configuration | Unit Probe Matrix,5 specimens (50mm,100mm,200mm,500mm,1000mm),2AAA Batteries |
| Optional Accessories | Optional probes for Leeb222 |
