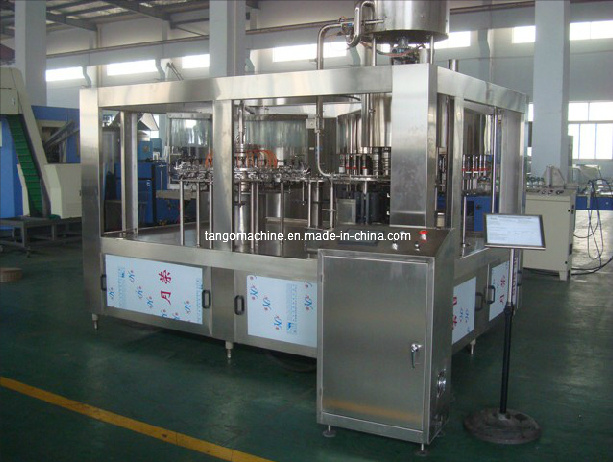

Bottled Drinking Water Processing Line (CGF)

Name: Bottled Drinking Water Processing Line (CGF)
Brand: china-manufacturer-directory.com
SKU: 714690305
Availability: InStock
Rating: 4.4 (126 reviews)

Supplier:	Zhangjiagang City Tango Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CGF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automatic Grade:	Automatic
Structure:	Rotary
Feed Cylinder Structure:	Multi-Room Feeding
Material Type:	Liquid
Type:	Volumetric Filling Machine
Filling Valve Head:	Multi-Head
Packaging Container Lifting Structure:	Pneumatic Lifting
Filling Principle:	Pressure
Packaging Type:	Bottle
Dosing Device:	Capacity Cup
Packaging Material:	Plastic

Product Description

Bottled drinking Water processing line

A Water bottle---Semi-auto blow molding machine— Two cavity— 3set
1 Blow molding machineTwo-cavity
2 Stove
3 High-pressure air compressor1.0/30kg
4 Cooling chilling dryer With filter30Kg
5 Low-pressure air compressor 1.6/10kg
6 Filter
7 Blow mould -2-cavity500ml
8 Blow mould 1000m
9 Blow mould1500ml

B Water treatment system ---10Ton
1 Raw water tankStainless steel
2 Booster water pumpNan fang
3 Silica sand filterStainless steel
4 Active carbon filterStainless steel
5 Sodium iron exchangerStainless steel
6 Iron re-generatorStainless steel
7 Precision filterDia-400mm Height: 1500mm
8 Buffer water tankStainless steel
9 1-grade RO With water pumpsize: 1000mm
10 Ozone sterilizerIt use o2 source
11 Finished water storing tankFor water line

C Water bottle washing-filling-capping 3-in-1 unit machine
1 automatic un-scrambler
2 Cap elevator
3 Rinsing-filling-capping 3-in-1 unit auto filling machine 32-32-10
4 8m air conveyor, 5m real bottle conveyor
5 Bottle type spare parts2bottle type

D Back treatment-labeling and wrapping process
1 Ink jet printerFrance-Imaje
2 Bottle brushing drying machineCG-1
3 Lamp checker PMJ
4 Auto sleeve labeling machine and shrinkage tunnel TG-S150
5 Bottle screw and label leading pole
6 Steam generator TG-T200
7 Air compressor
8 Auto PE film wrapping machine TG-350A

Model

CGF14124

CGF18186

CGF24248

CGF32328

The number of Washing, Filling, Capping

14-12-4

18-18-6

24-24-8

32-32-8

Producing capacity;

The number of bottle(600ml)/hour

2000-4000

5000-7000

8000-12000

12000-15000

Applicable bottle specifications (mm)

φ=50-108 H=170-340 330ml-2.25L

Pressure (kg/cm2)

2~3

Motor power (kw)

Main motor 1.5kw

Main motor 2.2kw

Main motor 3kw

Main motor 4kw

Outside vacuum pump power (kw)

0.75

1.1

1.5

2.2

Overall dimension (mm)

(LxWxH)

2100x1400x2500

2460x1720x2650

3100x2100x2650

3500x2500x2650

Weight(kg)

2500

3500

4200

5500

Technical Data

Model

CGF40-40-10

CGF50-50-12

CGF60-60-15

The number of Washing, Filling, Capping

40-40-10

50-50-12

60-60-15

Producing capacity:

The number of bottle(600ml)/hour

16000-20000

20000-24000

25000-30000

Applicable bottle specifications (mm)

φ=50-108 H=170-340 330ml-2.25L

Pressure (kg/cm2)

2~3

Motor power (kw)

Main motor 7.5kw

Main motor 9.5kw

Main motor 12kw

Outside vacuum pump power (kw)

2.2

Overall dimension (mm)

(LxWxH)

4600x1800x2650

5200x4500x3400

6500x4500x3400

Weight(kg)

6800

7600

9800

Zhangjiagang city tango machinery is beverage filling machine special company.

Our company supply 2000-20000bph tea\juice beverage hot filling production line\pure water\mineral water filling production line, carbonated beverage production line; 2000-9000 can/hour can beverage filling production line; 50-600barrel/hour 3-5gallon drinking water production line and all kind of matching facility, and contact for all kind Turn-Key project.

Our company machines export to Japan\middle east country\South-east Asia\South Africa\Russia ect country and area. Company except produce and sale machines, also supply all various of technology service, help user to do machines plane layout design, solve user technology consultation, user personnel technology train and manipulation instruction ect.

Our company insist market-oriented, science and technology as leading, quality as the main line, service as guarantee, the good faith as the foundation. Build complete quality guarantee system, strongly ensure our company product quality and character. Machine main technology source: Italy \France\German and combine china situation study and develop super technology liquid filling complete set facility, auto degree reach advanced level.

Our company after sale service is special take charge of our company installation debug\maintain department, it is also window to keep customer. "I'm the client" let service personnel all can think for client, put the customer in mind.

Sincerely hope can cooperate with u!
