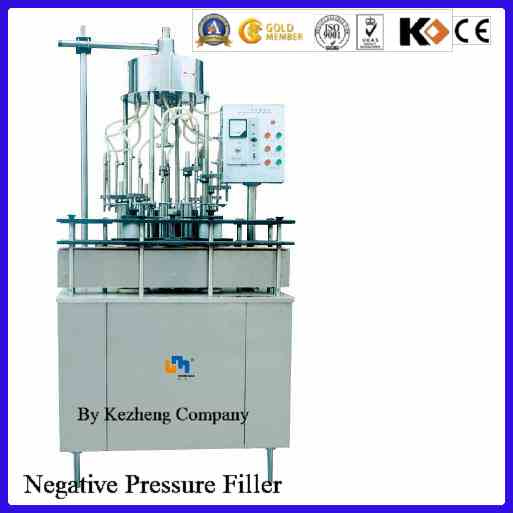

Brief Introduction:
The Negative Pressure Filling Machine is widely used for auto-filling the wine,fruit juice,no gas drinnks,milk and farm chemical etc.It's in the full closed conditions to avoid pollution and diffusion.
Main Structures and Characteristics:
1.Main Structures:
Consist of working table,transmission parts,wine vat,wine valve cylinder,pushing wheel,tray,convey system and vacuum exhausting system.
2.Characteristics:
Auto-Filling safely and precisely,easy to operate,the parts touching with the material are made from polished mico-carbin stainless steel.And easy to be washed ;With Speed Adjustable motor to adjust the capacity.
Working Principle:
The level of the wine is auto-controlled by a floating ball,to keep the fixed level.When the wine valve bar get into the bottle and the bottle mouth are sealed.It start to exhause the air and get the negative pressure.The drink in the wine vat fill into the bottle at the different pressure conditions.The exhaustion stop when the level over the exhausting hole of the wine bar.And the difference isn't existed.The wine filling stop.The wine valves are raise and the bottle is conveyed away by pushing wheel and chain.
Machine Details:
| Model | GFP-12 | GFP-24 | GSP-32 |
| Production Capacity | 1500-2500Bottles/Hour | 3000-5000Bottles/Hour | 6000-8000Bottles/hour |
| Bottle/Can Type | Glass Bottle | PET Bottle | Pop-Top Bottle |
| Inner dia at inlet | 15mm-18mm | 15mm-18mm | 53mm-65mm |
| Outer dia of bottle | 60mm-80mm | 60mm-80mm | 90mm-133mm |
| Bottle Height | 200mm-320mm | 200mm-320mm | / |
| Power | 0.75KW | 1.1KW | 1.5KW |
| Overall Dimension | 1000mmx800mmx2000mm | 1330mmx1260mmx2200mm | 1450mmx1700mmx2500mm |
| Weight | 1200KG | 1600KG | 2000KG |
