Jiangmen Greenfall Water Treatment Technology Co., Ltd. >> Bottling Line 2000-4000bph 3 in 1 Pet Bottled Water Production Line (Meo-XG-17)

Bottling Line 2000-4000bph 3 in 1 Pet Bottled Water Production Line (Meo-XG-17)

Name: Bottling Line 2000-4000bph 3 in 1 Pet Bottled Water Production Line (Meo-XG-17)
Brand: china-manufacturer-directory.com
SKU: 724537645
Availability: InStock
Rating: 4.7 (129 reviews)

Supplier:	Jiangmen Greenfall Water Treatment Technology Co., Ltd.
Price:	US $ 40000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	Meo-XG-17
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automatic Grade:	Fully Automatic
Structure:	Rotary
Feed Cylinder Structure:	Multi-Room Feeding
Material Type:	Liquid
Type:	Volumetric Filling Machine
Filling Valve Head:	Multi-Head
Packaging Container Lifting Structure:	Pneumatic Lifting
Filling Principle:	Negative Pressure
Packaging Type:	Bottle
Dosing Device:	Surface Type
Packaging Material:	Plastic

Product Description

Jiangmen greenfall water treatment technology co, . Ltd has 18 yesr's producing water plant equipments experience mainly manufactures all kinds of RO water treatment equipment, small bottle water production line, 5 gallon water production line, fruit juice filling line, carbonated beverage production line and related apparatus etc.

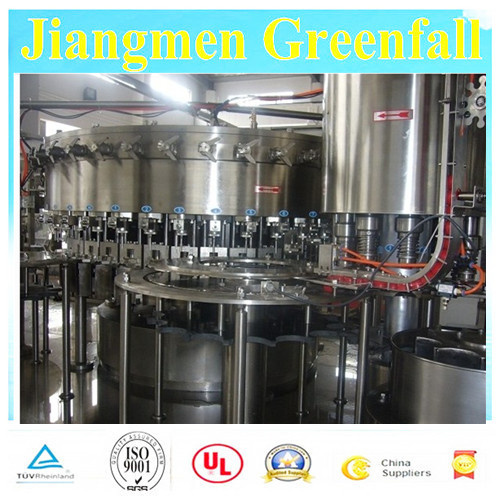

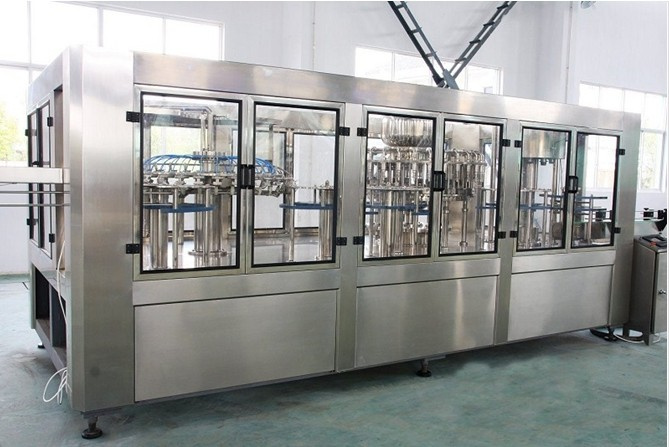

Bottling line 2000-4000bph 3 in 1 pet bottled water production line

1) about water production line

1: Principle of the small bottle water production line

Features:

1the main frame made of steel, 304 stainless steel exterior layer, 304 stainless steel frame, and adjustable feet.

2conveying system adopts star wheel, smooth transmission, stainless steel chain.

3number of washing head is 16PCS, 304 stainless steel chassis wash pipes are heat-resistant.

4number of filling valve is 12 PCS, and parts contacted with liquid are made of304L stainless steel. Inner surface

Is dealt with polishing. There is stainless steel returning tube, no dead space.

5number of capping head is 6 PCS, screw head using magnetic torque device to facilitate torque adjustment,

The torque of capping head can be set in accordance with the actual production needs.

It is the complete automatic bottled drinking water productoin line from bottle-blowing machine to shrink-wrapping machine.

More details, please contact us today.

High quality components: PLC controlling(mitusbishi)

This production line can fill mineral water, carbonated drinking, juice and so on
Company has passed ISO900: 2000 version quality system certification and all manufacture processes are conducted by the standard strictly.

All products adopt all-around computer aided design(CAD)

All auxiliary parts adopt international and domestic famous brand products

Before delivery time, all complete sets will test run for 3days continuously after quality inspection, they can be transferred to the customers
How to get your suitable machine or production line?

Find our products through reliable machinery Co., Ltd in google, baidu. Bing, alibaba. COM etc

Enquiry: Contact us by email, phone call, fax, instant messenger and let us know your enquiry.

Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.

Quotation: Prices offered and accepted.

Place order as per contract or discussion.

Perform invoice( sales contract ) in duplicate confirmed and kept by both sides.

Payment settled.

Order completed under our arrangement.

Goods shipped as per contracted term.

Goods arrive at local port or warehouse, depending on contracted term.

Support & re-ordering

Main Technical Data
Model	CGF16126	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012	CGF606015
washing, filling and capping heads	16-12-6	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15
Production capacity (b/h)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000
suitable bottle specification	φ=50-110=170 330-2250ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	2.2kw	3kw	5.5kw	7.5kw	11kw	15kw	19kw
Overall dimensions(mm)	2600×1920×2550	3100×23002800	3800×2800×2900	4600×2800×2900	5450×3300×2900	6500×4500×2900	76800×66400×2850
Weight (kg)	3000	4000	6000	8000	9500	11800

JIANGMEN GREENFALL WATER TREATMENT TECHNOLOGY Co., Ltd Located in China's first overseas Chinese of JIANGMEN. Since 1996 the company since its establishment, our factory purpose is improve water quality, benefit of humanity, fervor-self, contributing to society.

Our factory manufacture complete water plant equipment. Include injection machine, blowing bottle machine, water treatment equipment, ozone system,

Filling machine, labeling machine, packing machine and palletizer etc.

As one of the leading manufacturers in drinking water treatment and bottled water engineering (covering water dispensers) in China, we are pursuing good reputation in the global market also. Our products are selling well in Canada, French, USA, Japan, Korean, Russia and Indonesia. And we have more customers from USA, Mexico, Ecuador, Australia, Singapore, Thailand and Brunei. We have a good beginning in most of African countries.

The main products of the company

1, 2000BPH---20000BPH hot liquid filling, middle temperature beverage production line

2, 2000BPH---36000BPH Mineral water and purify water production line

3, 2000BPH---20000BPH Gas beverage production line(PET, glass bottle)

4, 2000BPH---12000BPH Glass bottle wine complete production line

5, 2000BPH---20000BPH Pulp beverage mixed filling machine

6, 60BPH---1200BPH barrel mineral water, purify water production line

Plastic injection machine, Blowing bottle machine, Mould etc

Bottle unscrambler, Labeling machine, Shrink packaging machine, etc

Ozone system, ultraviolet sterilization system, air shower, laboratory equipment etc

Purified Water Treatment Equipment, Mineral Water Treatment Equipment, Seawater treatment Equipment, Brackish Water Treatment Equipment, etc.

Providing "Quality Products, Excellent Service, Competitive Prices and Prompt Delivery", we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. If you are interested in our products, please feel free to contact us for more information.
