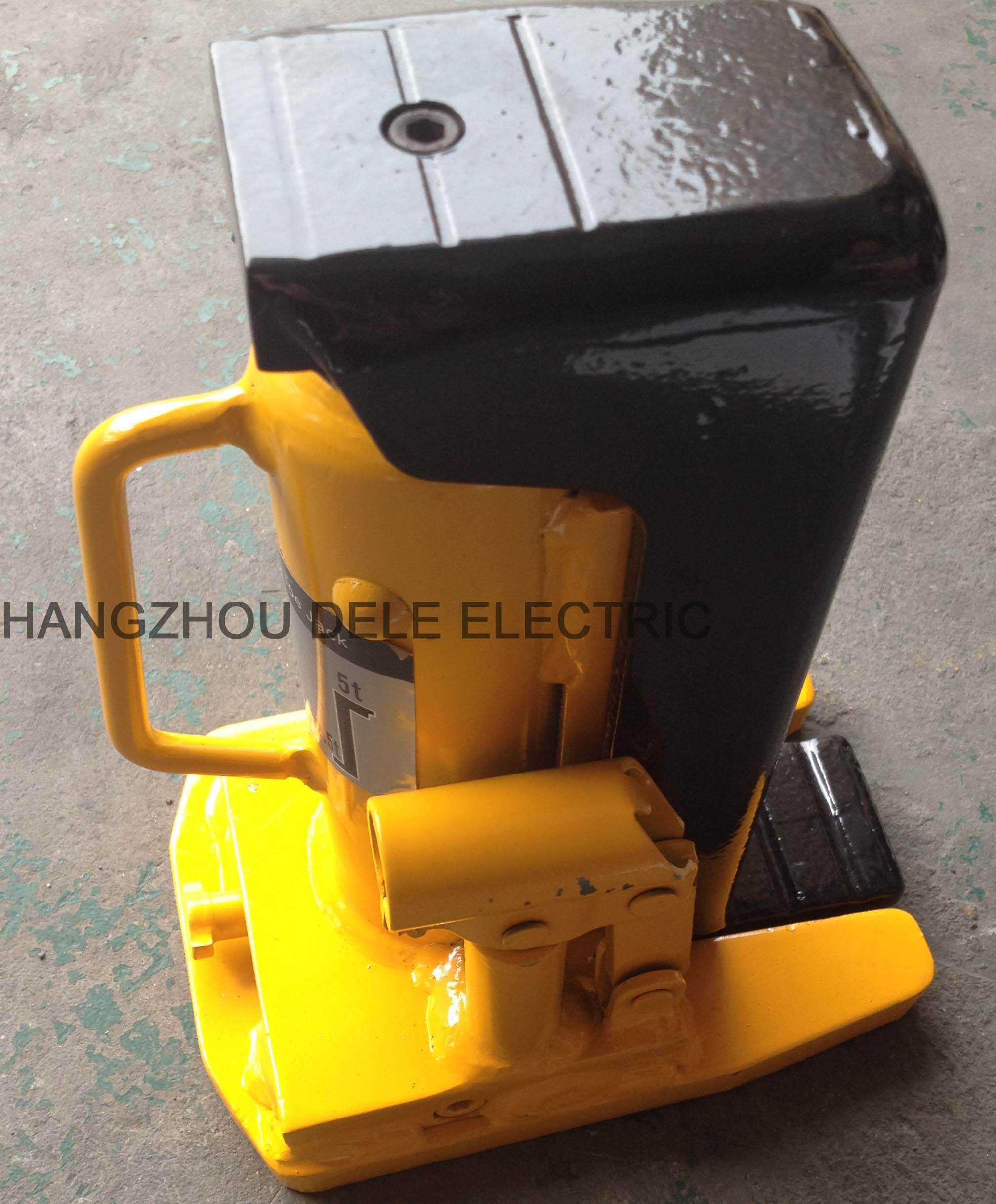

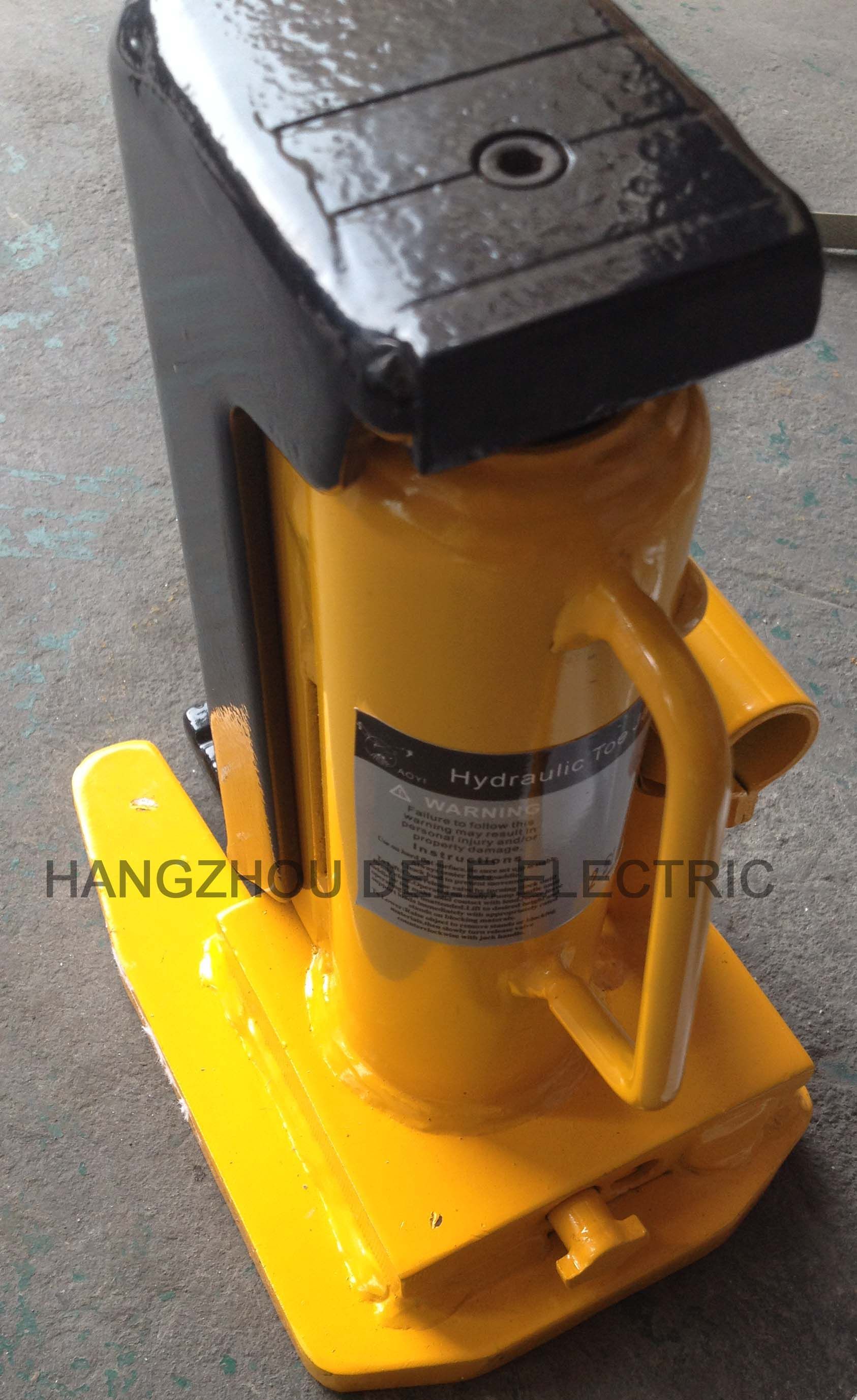

Bottom Industrail Tool Jack5 Tons-10tons
Product Specifications
| Prod Model: |
AY1102&AY1105 5-10TONS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Overgroud Eight Trigram Type |
| Max. Lifting Capacity: |
≥5T |
| Certification: |
ISO |
| Condition: |
New |
Product Description
In compliance with U.S .safety standards:ASME B30.1
E Lifting equipment used in the minimum accessible space.
Low height foot-lifting.
Able to lift both at the top and in the bottom.
Precision-oriented to avoid the hydraulic cylinder under side load.
With a reset spring for 5 tons,10 tons.
|
Model |
Capacity |
Head capacity |
Min.toe height |
Max.toe height |
Min.head height |
Max.head height |
Packing size |
Net weight |
|
AY1102 |
5 |
2.5 |
18 |
130 |
238 |
349 |
215x160x260mm |
8.5 |
|
AY1105 |
10 |
5 |
25 |
150 |
298.5 |
409 |
305x220x320mm |
24 |
HANGZHOU DELE ELECTRIC Co., Ltd is locatd near the Ningbo port, Yinzhou district, Zhejiang province. 2hours drive from Shanghai &ningbo port. We maninly manual chain hoist, manual lever hoist, electic chain hoist, push trolley, gear trolley, and hand chains. Our products are exported to leading customers in Far East, Europe, Africa and America.
We have won a good reputation among our customers by providing high quality, safe and reliable products, which are produced under strict quality control. We have co invested with factories in the field of these produts.
Our business aim is to provide the best quality products at the most competitive prices. We have a group of highly skilled and trained personal having rich experience in international service and have a wealth of knowledge, experience in the field of lifting and lasing. We can provide excellent advice and support to insure you get the right products and the lowest cost.
QUALITY POLICY...PROVIDE CUSTOMERS WITH SATISFACTORY PRODUCTS AND SERVICES WITH CONTINOUS INNOVATION.
