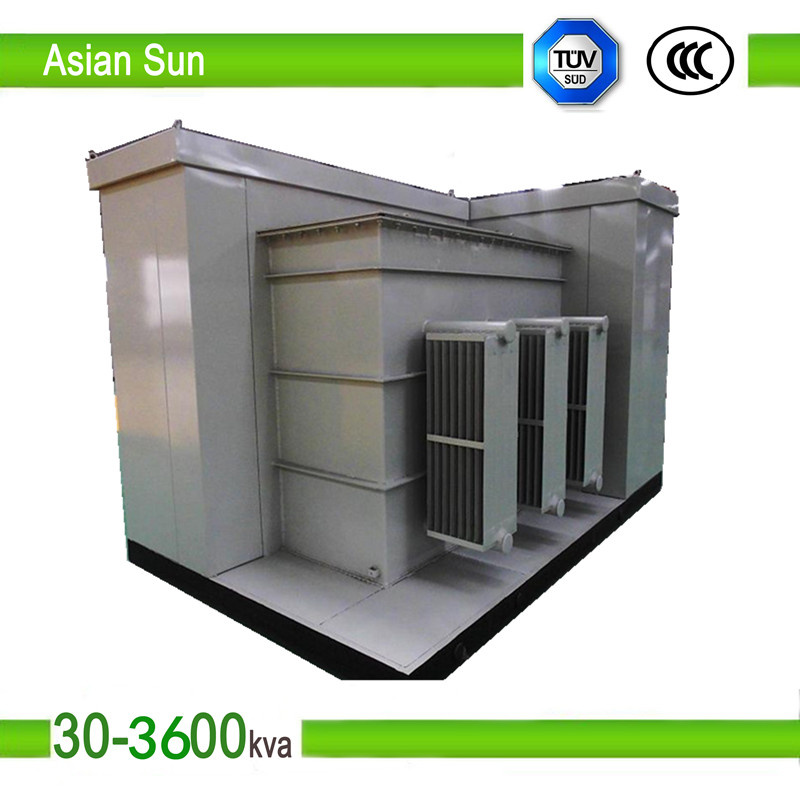

Box Type Transformer American Type Substation for Power Substation
Product Specifications
| Prod Model: |
Box Type Transformer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
50Hz |
| Fault Indicator: |
Available |
| Transformer: |
Distribution Transformer |
| Rated Voltage: |
10kv(35kv) |
| Equipment: |
Hv Load Switch |
| Inner: |
Security Fuse |
| Load Plug: |
Available |
| Potential Indicator: |
Available |
| Box: |
Steel Plate/Aluminum Alloy |
| Lightning Guard: |
Available |
| Type: |
Box Transformer |
Product Description
ZG(F)S Combined Type Substation (American Type Substation)
Rated capacity: 100-1600KVA
High voltage: 6/6.3/10.5/11KV
Low voltage: 0.4KV
Features
Small in size, whole sealing, easy installation, flexible operation, low operation cost. It can be widely used in all kinds of public places.
Outstanding merits
1) high quality of the voltage,
2) no drifting of the neutral point,
3) strong overloading capacity,
4) low cost, low noise,
5) strong ability of resisting short circuit
6) It also can be used in Looped network and terminals.
ZG(F)S Combined Type Substation Parameter
| Rated Capacity | Voltage Group (kV) | Connection Method | Loss(kW) | Dimension (mm) |
| (KVA) | HV | LV |
| No-load | Load | No-load current | (L) | (W) | (H) |
| 100 |
11
10.5
6.3
6
|
0.4
|
Dyn11
Yyn0
| 0.20 | 1.500 | 1.6% | 1830 | 1355 | 1735 |
| 125 | 0.24 | 1.800 | 1.5% | 1830 | 1365 | 1735 |
| 160 | 0.27 | 2.200 | 1.4% | 1830 | 1375 | 1735 |
| 200 | 0.33 | 2.600 | 1.3% | 1830 | 1375 | 1735 |
| 250 | 0.40 | 3.050 | 1.2% | 1830 | 1405 | 1735 |
| 315 | 0.48 | 3.650 | 1.1% | 1830 | 1425 | 1735 |
| 400 | 0.57 | 4.300 | 1.0% | 1830 | 1435 | 1805 |
| 500 | 0.68 | 5.150 | 1.0% | 1830 | 1445 | 1805 |
| 630 | 0.81 | 6.200 | 0.9% | 1830 | 1455 | 1860 |
| 800 | 0.98 | 7.500 | 0.8% | 1830 | 1490 | 1860 |
| 1000 | 1.16 | 10.300 | 0.7% | 1830 | 1675 | 2005 |
| 1250 | 1.37 | 12.000 | 0.6% | 2100 | 1845 | 2035 |
| 16000 | 1.64 | 14.500 | 0.6% | 2100 | 1885 | 2135 |
Our Certifications
IEC/ISO/CCC/GB/T
Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, PV bracket, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
