Brazed Plate Heat Exchanger for Heating and Cooling

Name: Brazed Plate Heat Exchanger for Heating and Cooling
Brand: China-Manufacturer-Directory.com
SKU: 700836492
Availability: InStock
Rating: 4.3 (110 reviews)

Supplier:	Shanghai Jiangxing Chemical Equipment Co., Ltd.
Price:	US $ 50-2000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	JXZ190
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	1 Year
Condtition:	New
Color:	Blue
Structure:	Plate Heat Exchanger
Export Markets:	Global
Principle:	Recuperative Heat Exchanger
Structure Material:	Metal Material
Application:	Condenser
Heat Transfer Surface:	Plate Heat Exchanger

Product Description

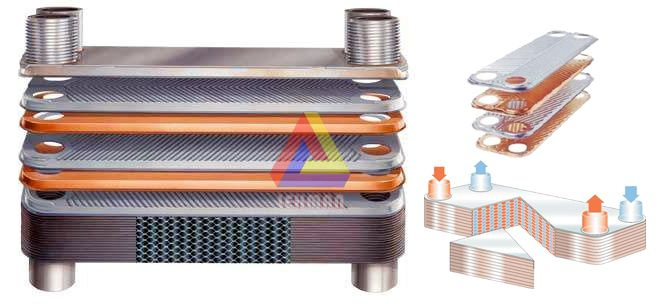

Work principle

Fluid A passes from the port on the left of the heat exchanger through every other channel created by the plates to the opposite end port on the left of the heat exchanger (looking at it the long way). Fluid B passes from the port on the right through the other channels created by the plates and comes out the other port on the right side. The fluids are essentially touching each other through the plates and heat is transferred from the hot fluid to the cold fluid. (but the fluids do not mix)

Corrosion

Corrosion is usually how these units will fail. Use fluids with reasonable pH levels to ensure a long lasting life. Hard water will corrode faster than regular water. (Use distilled if possible; Distilled should never corrode it) Salt water will corrode stainless steel very fast. It is recommended to clean the exchanger often if you are using corrosive fluids. Normal usage (non-corrosive fluids) should expect 10-20 years of life. Fluids containing chlorides will corrode the unit quickly.

Application

Refrigeration system
Evaporator
Condenser
Economizer and desuperheaters
Air drier
Heat pump
Absorption chiller
HVAC
Radiant floor

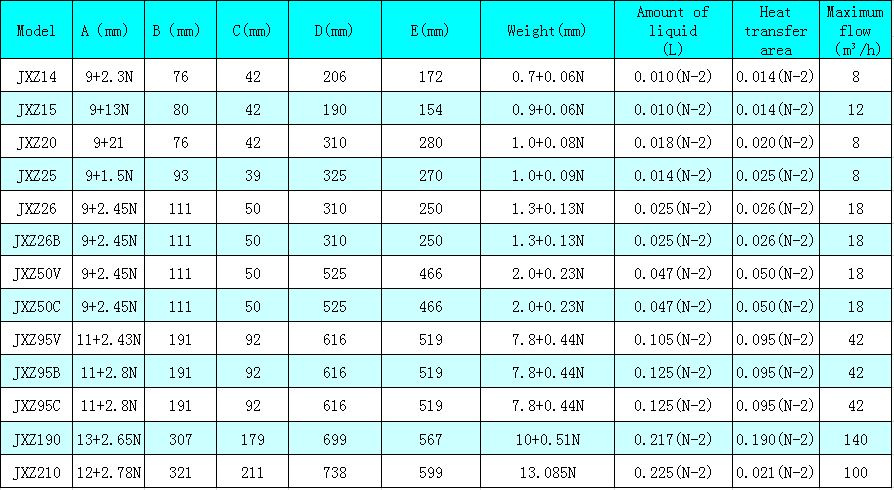

Provide all of the following model

ISO9001:2008

Shanghai Jiangxing Chemical Equipment Co., Ltd. is an enterprise specialized in manufacturing series of plate heat exchanger, The company has the abundant technical force, 10000 tons of hydraulic press and other important equipment, specializing in the production of removable plate heat exchanger, brazed plate heat exchanger, fully welded plate heat exchanger, heat exchanger plate, gasket; Its products are widely used in chemical, fertilizer, pharmaceutical, oil, steel, alcohol, food, beverages, printing and dyeing, electricity, painting, electronic screen, rubber, house heating, hotel and other departments, It also can meet the need of heating, cooling, condensation, heat recovery and various technological requirements.

With the increase of usage, we need to gradually developed a variety of plate heat exchanger. Our company according to the foreign advanced technology and combining with the user's requirements to develop and produce the new type heat exchanger, so that we can better meet the needs of the customers.

We promise that if you are interested in our pruducts, we will provide the best service. Welcome to Shanghai Jiangxing.
