Yueqing Sanshe Semiconductor Factory >> Bridge Rectifier Module (KBPC2510 AC)

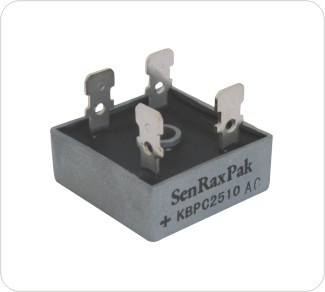

Bridge Rectifier Module (KBPC2510 AC)

Name: Bridge Rectifier Module (KBPC2510 AC)
Brand: china-manufacturer-directory.com
SKU: 635121135
Availability: InStock
Rating: 4.8 (140 reviews)

Supplier:	Yueqing Sanshe Semiconductor Factory
Price:	Negotiable/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	KBPC2510 AC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Technology:	Logic IC
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	DIP(',Dual In-line Package)
Batch Number:	2014+
Brand:	Saishe

Product Description

Features

Bridge rectifier module
Current: 20-250
RRM: 100-1600V
Welding technique under the production of vacuum and hydrogen gas
Electrically-isolated chip and baseboard 2500V AC voltage
Bridge rectifier module
Advantage
1)ISO9001, CE
2)As manufacturer, have high quality low price
3)10 years Professional Technical
4)warranty period: 15months
5)good after-sale service

Single phase bridge diode bridge rectifier
KBPC3510 KBPC3506 kbpc5010 kbpc5006
QL50A QL30A QL40A QL60A QL100A QL200A QL150A QL300A

Typical Applications
Rectifier current
Industrial automatic control
Digital-controlled machine and remte control system

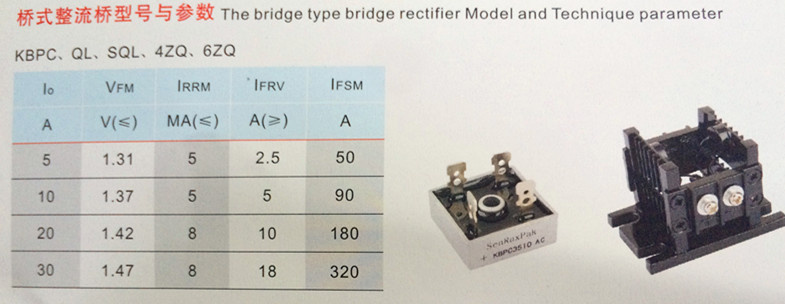

Type	Id	IF(AV)	VRRM	IRRM	VISOL	Outline
	A	A	V	mA	V

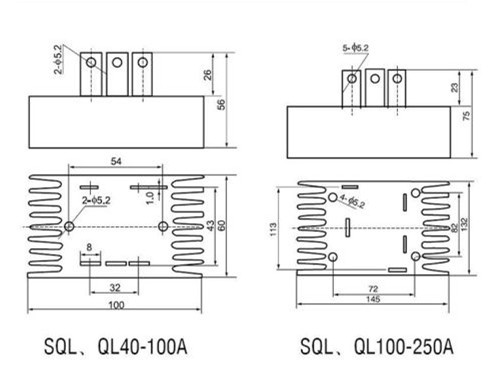

KBPC5A-50A	5~50	2.5~17.5	100~1600	5	2500	28x28x22
QL5A-50A	5~50	2.5~25	100~1600	5	2500	32x32x24
QL5A-50A	5~50	2.5~25	100~1600	5	2500	32x60x25
QL40A	40	20	100~1600	7	2500	60x100x55
QL60A	60	30	100~1600	7	2500	60x100x55
QL100A	100	50	100~1600	7	2500	60x100x55
QL150A	150	75	100~1600	10	2500	132x145x75
QL200A	200	100	100~1600	10	2500	132x145x75
QL250A	250	125	100~1600	10	2500	132x145x75
QL300A	300	150	100~1600	10	2500	132x145x75

Yueqing Sanshe Semiconductor Factory has been specialized in manufacturing power module, such as SCR module, silicon rectifying module, high-power resistance, solid state relay, etc. It is a company that has been engaged in the research, development, production and sale of electric power semiconductors. Not only does our company have strong technical force, but also perfect production line. Besides, we have first-rate testing facilities. And all of our products are stable in performance and reliable in quality.

We have acquired ISO9001 quality system certification and CE certification. Our products are widely used in replacing similar brand name products from abroad, which can help users save cost, and they have been enjoying great popularity among the users.

We are willing to establish long-term business relationship with all customers on the basis of honesty, trustworthiness, deploitation and innovative entrepreneurship.
