Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Combination |
Product Description

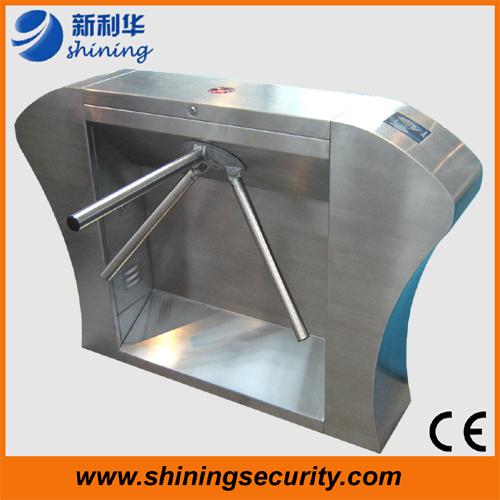

Bridge Waist High Turnstiles, Bridge Waist High Turnstile:
Dimension: 1200*280*990mm
Functions and features of waist high tripod turnstile:
1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.
2. Running stable, little noise and no mechanical impact
3. Self-checking-power-on function, if power on, turnstile will auto get to be held.
4. Various working means can be set in the control panel menu, namely: Bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
5. If power off, the turnstile arm will fall automatically while power on later, arm should be lift by hand. First press the arm with a little force and then lift it manually.
6. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
8. It will count the persons who have been passed through automatically and will show the number by LED directly. (LED is optional)
9. Passing direction will be shown by LED and passengers will know which direction is allowed to pass.
Waist high tripod turnstile is used to manage passage order.
|
Power Supply |
AC110V± 10V, 60Hz / AC220V± 10V, 50Hz |
|
Power Consumption |
100watts |
|
Working Temperature |
-15 to 60 degrees |
|
Related Humility |
< =95% |
|
Passage Width |
< =60cm |
|
Response Time |
0.2s |
|
Passing Speed |
40 persons/min |
|
Interface |
RS485, communication distance < =1200m |
|
Input Interface |
+12V electrical signal or DC impulse signal with width > 100ms |
|
Stainless Steel Specification |
Cover 1.5mm 304-type
Housing 1.2mm 304-type
Arm 1.0mm 202-type |
|
Arm Diameter |
: Ø 38*500mm |
|
Working Interface |
RS485/relay signal |
Shining Tech Inc (Shining International Tech Limited) is a professional manufacturer of parking barrier gates, pedestrian barriers and turnstiles. And we are the choice for OEMs, ODMs, distributors, integrators, projectors and dealers.
We have our own in-house facility for research, development, design, production and sales - a 4000 square meters plant with CE certificate. Now we have several product lines for barrier gates and turnstiles, we can meet your demands for various colors, shapes and models.
As a growing manufacturer with our modern manufacturing facility, we keep getting rid of the stale and bring forth the fresh to meet market requirements and maximize customers' profits. Due to our advanced producing equipments and scientific management, our series of products with excellent quality are selling well not only in China but also all over the world. Now we become one of the leading designer and manufacturer of the barrier gate, pedestrian barriers and turnstile.
"Reliable Products! Excellent Services! " is our aim. We try our best to maintain a long-term, stable and mutual benefit relationship with all the partners, and looking forward to creating miracles through win-win cooperation with you in the world.
