Product Description
Main characteristic features:

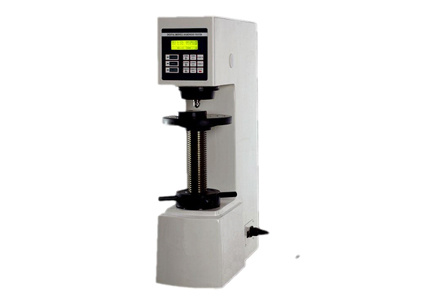

MHB-3000 Digital Electronic Brinell Hardness Tester is a unified product combining optical, mechanic and electronic techniques, which is adopted the precise mechanical structure and computer control closed-circuit system. Without the weights, the instrument loads and unloads the testing force with the motor. By means of the 0.5‰ Accuracy compression sensor to feedback the information and the CPU to control, the instrument compensates automatically the testing force lost during the testing.
Equipped with a digital micro eyepiece on the instrument, the length of indentation can be measured by this eyepiece directly. All testing data such as the testing method, the testing force value, the length of testing indentation, the hardness value and the dwell time of testing force can be showed on the LCD screen, without inputting the value of diagonal length for the indentation and free from looking up the hardness value form the hardness table as well, therefore the reading data are more accuracy and operation of this instrument is more easy.
Technical Features and Standard Accessories:
Testing Range: (8~650)HBW
Test Force: 612.9N(62.5kg)\980N(100kg)\1226N(125kg)\1839N(187.5kg)\2452(250kg)\4900N(500kg)\7355N(750kg)\9800N(1000kg)\14700N(1500kg)\29400N(3000kg)
Max Height of the Specimen: 225mm
Max Distance from the lndenter Center to the Instrument Panel: 135mm
Amplification of the Digital Micro Eyepiece: 15× (30× )
Min. Graduation Value of the Drum Wheel of the Digital Micro Eyepece: 0.0025mm
Powerm Voltage: AC220V 50/60Hz
Main Accessories:
Testing Table:
Large, Small and V-Shaped each 1 PC
Hard Alloyed Steel Ball Indenters: Φ 2.5mm\Φ 5mm\Φ 10mm, each 1PC
One 15× Digital Micro Eyepec
Two Standard Hardness Blocks (HBW 3000/10 150-250)(HBW 750/5 75-125)
Weight 160kg (Gross Weight) 130kg(Net Weight)
Package Dimensions: 893× 720× 470(L× W× H)
