Product Specifications
| Prod Model: |
SRBH-1(20X), SRBH-150(20X), SRBH-3000, SRBH-3000M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hardness Type: |
Brinell Hardness Tester |
| Standard: |
GB/T |
| Type: |
Brinell Hardness Tester |
Product Description

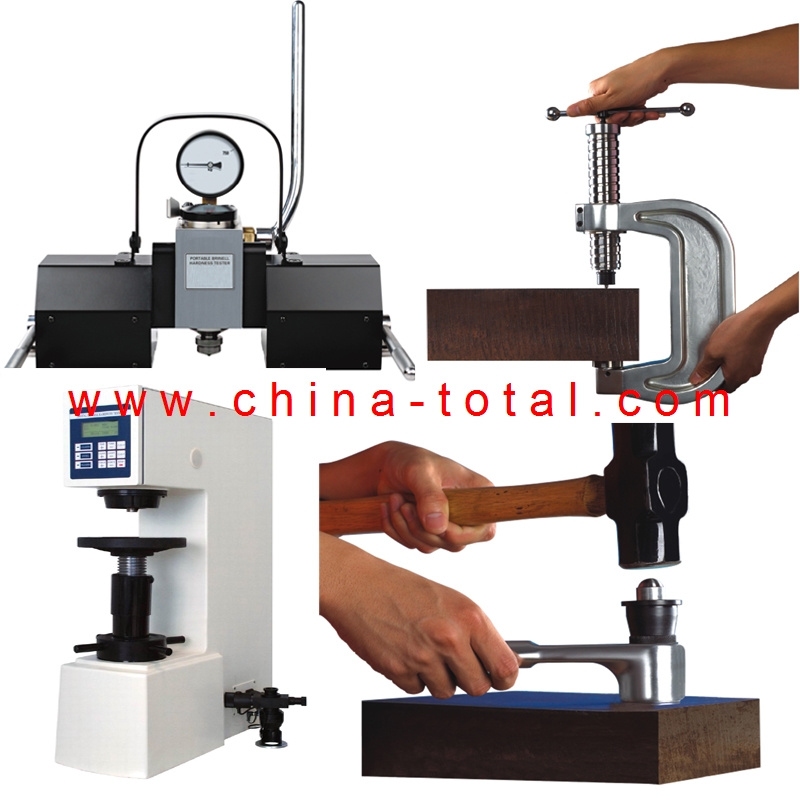

SRBH-1(20X) Pin Brinell Hardness TesterTechnical Parameter of Hydraulic Brinell Hardness Tester
Test Force :1,580kg
Indenter: 7.26mm Steel Sphere Indenter, test range 100~350HBW
4mm Hard Alloy Sphere Indenter, test range 350~650HBW
Indicator Error: ≤5%
Repeatability Error: ≤5%
Test Range: 100~650HBW
Net Weight: 0.8kgModel SRBH-3000 Portable Brinell Hardness TesterTechnical Parameter of Hydraulic Brinell Hardness Tester
Test Force: 3000kg (1000kg, 750kg, 500kg optional)Test Ball: 10mm Carbide alloy test ball (5mm optional)Test Range: 32~650HBW
Opening Dimension: 350mm (Height) x 100mm (Throat depth)
Indicator Error: complies with ISO 6506, and ASTM E10.
Repeatability Error: complies with ISO 6506, and ASTM E10.
Test Force Error: complies with ISO 6506, and ASTM E10.
Net Weight: 13.8kgModel SRBH-3000D Electronic Brinell Hardness TesterUsage RangeThe Brinell Hardness tester that shows the largest indentation among all the hardness tests is able to reflect the comprehensive features of the material ,and the test is unaffected by the organization micro-dioptre and the compositional unevenness of the speciment ;and hence it is a hardness testing with high precision. The Brinell hardness test is widely used in such industrial fields as metallurgy ,forging ,casting ,unhardened steel and nonferrous metals industries, as well as in the laboratories, universities ,colleges and scientific research institutes. Mains characteristic featuresSRBH-3000D electronic Brinell Hardness Tester is a unified product combining the precise mechanical structure with the computer control by means of the mechanical and electrical circuit system, and so it is the more advanced brinell hardness tester in today's world. The instrument adopts the motorized test force application without weight blocks, and uses 0.5‰ accuracy compression sensor to feedback the information and the CPU control system to automatically compensate the test force lost during the testing. The test force and the load dwell time can be directly set pressing the selected keys on the touch-keyboard, with reliable repetition, precise reading and easy operation.Model TH600 Brinell Hardness Tester
Features:
Digital Brinell hardness tester
Measuring the Brinell hardness of unquenched steels,
Cast iron, non-ferrous metals and soft bearing-alloys etc.
High testing precision, extensive testing range, automatic load systemHigh accuracy, wide measuring range.
Automatic force loading.
Standards conforming to: ASTM E-10, ISO6506.2
|
Testing range: (8 - 650)HBW |
Test Force:
612.9N (62.5Kgf), 980N(100Kgf), 1226N(125Kgf), 1839N(187.5Kgf),
2452N(250Kgf), 4900N(500Kgf), 7355N(750Kgf), 9800N(1000Kgf),
14700N(1500Kgf), 29400N(3000kgf) |
|
Accuracy of Displayed Hardness Value |
|
Hardness Range(HBW) |
Max tolerance% |
Repetition% |
|
≤ 125 |
± 3 |
≤ 3.5 |
125
|
± 2.5 |
≤ 3.0 |
|
|
>225 |
± 2.0 |
≤ 2.5 |
|
Max, Height of the speciment: 225mm |
|
Max Distance from the indenter center to the instrument panel: 135mm |
|
Magnification of the microscope: 20X |
|
Min Reading Grade of the Drum wheel of the microscope: 0.005mm |
|
Power supply and Voltage: AC220V/50-60Hz |
Main Accessories:
Tables: Large, Small and V-shaped each;
Hard Alloyed Steel Ball Indenters: Φ2.5mm, Φ5mm, and Φ10mm each.
One Microscope: 20X
Two Standard Hardness Blocks |
