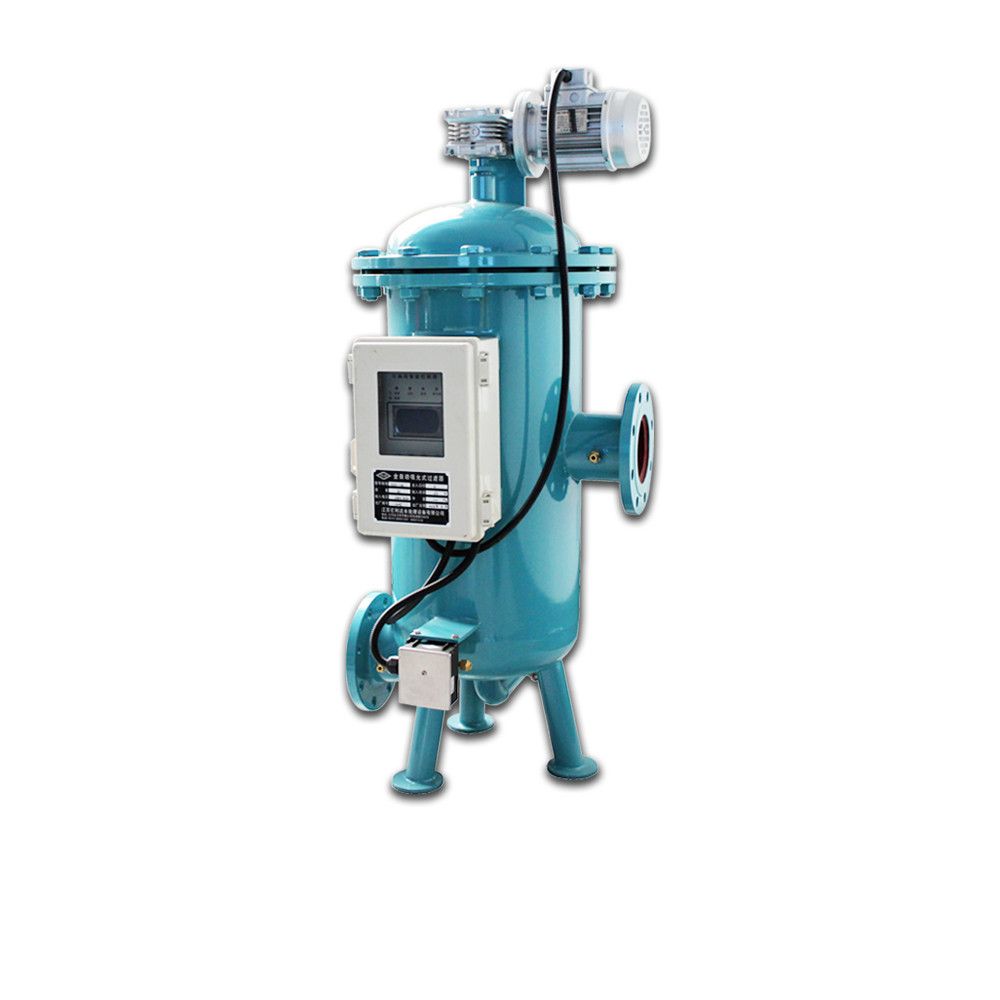

Brush Water Filters Self Cleaning with 150 Mircon Mesh

Brush Water Filters Self Cleaning With 150 Mircon Mesh


Product introduction


The inside structure of the automatic self-cleaning brush filter is made up of the stainless steel strainer and stainless steel wire brush and transmission part. The washing and the drainage are automatically finished by the drive motor and electrical valve. The operation way is automatic running (manual running is also Ok), It is with the double function of the pressure difference and regularly automatic drainage. The automation part takes use of the most advanced and reliable PLC in the world.

Features:
1. Electric device of the automatic washing
2. Filtering precision is from 3500 um to 100 um
3. Simple washing way: By stainless steel brush
4. Anti- Corrosion: Phosphatization treatment, the outside steel is coated with resin; It also could be with the shell of anti- Corrosion of the seawater or the stainless steel body.
5. No cutoff for the backwashing, low water consumption: No more than 1% of the total quantity.

Working Principle:

The inside structure of the automatic self-cleaning brush filter is made up of the stainless steel strainer and stainless steel wire brush and transmission part. The washing and the drainage are automatically finished by the drive motor and electrical valve. The operation way is automatic running (manual running is also Ok), It is with the double function of the pressure difference and regularly automatic drainage. The automation part takes use of the most advanced and reliable PLC in the world.

When the water flow gets through the filter, the impurity in the water is held by the strainer With the increase of the impurity accumulated on the surface of the strainer, the pressure difference reaches 0.04Mpa. The switch of the pressure difference will give out a signal while the PLC sends an instruction to start the drive motor and open the drainage valve; The impurity accumulated on the strainer will be brushed off with the rotating brush and discharged from the drainage exit. The whole process of brushing and draining require no personal operation and without machine halt. At the same time, the equipment is with the function of regular washing and draining and manual washing and draining to make sure that the water output is safe and reliable in any case.

FAQ:
01. What is your flow rate require?
02. What is the working pressure?
03. What is the material do you want?
04. What is the power supply in your counrty?

Model	Inlet and outlet parameter		Drain	D	H	Output power(w)	Motor     Kw/r/min
	mm	in	mm
YL-2J	50	2	25	159	840	19	0.18/1400
YL-2.5J	65	2.5	25	159	840	28	0.18/1400
YL-3J	80	3	25	219	860	50	0.18/1400
YL-4J	100	4	25	219	910	80	0.18/1400
YL-5J	125	5	25	219	950	125	0.18/1400
YL-6J	150	6	32	273	965	180	0.18/1400
YL-8J	200	8	40	325	1085	320	0.18/1400
YL-10J	250	10	50	377	1235	490	0.18/1400
YL-12J	300	12	65	425	1260	710	0.18/1400
YL-14J	350	14	65	478	1330	970	0.18/1400

Application
The circulated or non-circulated cooling water system, heat exchange system, central air conditioning system and central heating system in the industries like architecture, chemistry, metallurgy, rubber, paper making, light textile, coal and foods, used to protect the cooling equipment, heat exchange device and air conditioner accordingly.
