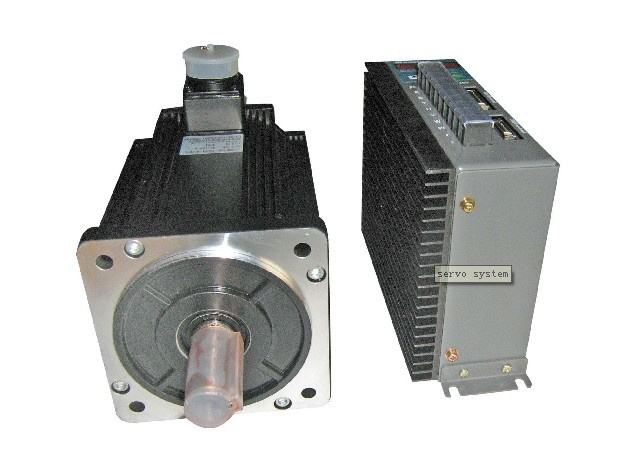

130mm frame, 1.5kw, 10N. M.
| Motor model | 130ST-M10015 |
| Rated power(kw) | 1.5 |
| Rated current(A) | 6 |
| rated speed(rpm) | 15000 |
| Rated torque(N.m) | 10 |
| Peak torque(N.m) | 25 |
| Voltage constant (V/1000r/min) | 103 |
| Moment coefficient(N.m/A) | 1.67 |
| rotor inertia(Kg.m2) | 1.94*10 -3 |
| Resistance line-line (Ω) | 1.29 |
| Inductance line-line(mH) | 5.07 |
| Electrical time constant(ms) | 3.93 |
| Encoder line(PPR) | 2500 |
| Pole-pairs | 4 |
| Weight(KG) | 6.7 |
| Insulation class | Class B (130) |
| Grade of Protection | IP65 |
| The operating of Evironmental conditions | Temperature | -20°C ~ + 50°C |
| Humidity | Below 90%RH No dewing |
| Environment | Far away active gas,combustible gas, oil drop,ash. |
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
A: Our products are manufactured according to your order except the normal products .
3. Q: What's the delivery time?
A: I t usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.
4. Q: Can I choose the different brake to the motors?
A: Yes, you can choose the different kinds of brake or without brake.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Miger people always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment
.
6. Q:What's your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.
The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.
"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
