Ningbo Yinzhou Longway Technology Co., Ltd. >> Brushless AC Servo Motor for Automatic Machine

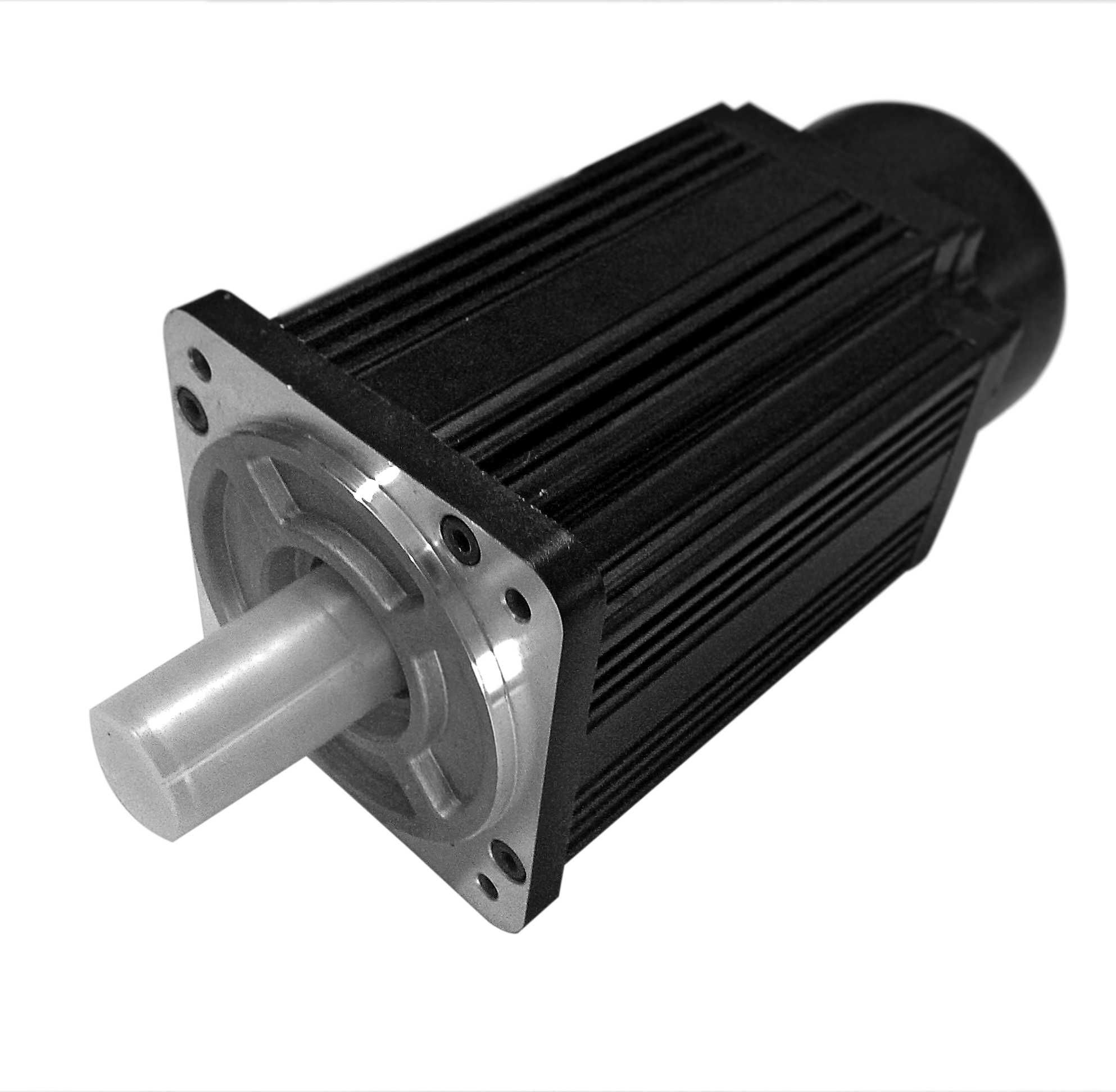

Brushless AC Servo Motor for Automatic Machine

Name: Brushless AC Servo Motor for Automatic Machine
Brand: china-manufacturer-directory.com
SKU: 677480355
Availability: InStock
Rating: 4.4 (88 reviews)

Supplier:	Ningbo Yinzhou Longway Technology Co., Ltd.
Price:	US $ 50/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	80STM02430
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.: 80st-M02430:	Number of Stator: Single-Phase
Speed: Variable Speed:	Number of Poles: 8
Export Markets: Global:	Rated Voltage(V): 220
Peak Torque(N.M): 7.1:	Weight(Kg): 2.86

Product Description

80ST-M02430 electric motor with brake:
1) Rated power: 750w
2) Holding torque: 2.4Nm
3) Frame size: 80mm
4) CE, ISO Certific

80ST-M02430 electric motor with brake have a very compact structure and attractive appearance. The motors have some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.
We can design according to clients' requirements.

Motor model	80ST-M02430
Rated power(kw)	0.75
Rated voltage(V)	220
Rated current(A)	3
rated speed(rpm)	3000
Rated torque(N.m)	2.4
Peak torque(N.m)	7.1
Voltage constant (V/krpm)	48
Moment coefficient(N.m/A)	0.8
rotor inertia(Kg.m)	2.4*10- 4
Resistance line-line (Ω)	2.88
Inductance line-line(mH)	6.4
Electrical time constant(ms)	2.22
Weight (kg)	2.86
Encoder line(PPR)	2500
Pole-pairs	4
Insulation class	Class B (130 degree)
Grade of Protection	IP65
The operating of Evironmental conditions	Temperature	0~ + 40 degree
	Humidity	Below 90%RH No dewing
	Environment	Far away active gas,combustible gas, oil drop,ash.

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
