Product Specifications
Prod Model: |
BS1363-2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Items Name: |
BS 1363 Britain UK Socket and Plug Gauge |
Main Material: |
Stainless Steel |
Wararanty: |
1 Year |
Contact Skype: |
Bellacxyq |
Type: |
Gauge Block |
Product Description
BS 1363 Britain UK Socket and Pulg Gauge
Application:
Brithsh Standards Test Gauge is strictly designed and manufactured according to the relevant standard requirements of BS1363-2.
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to BS1363-2 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Surface corrosion and abrasion resistance can resist normal contact corrosion and not embroidered patch (the operator hand may exist in the sweat, the corrosion effect equivalent to NACL salt solution or NH4CL salt solution corrosion);
Material hardness is more than 60HRC;
Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable
Quantity:

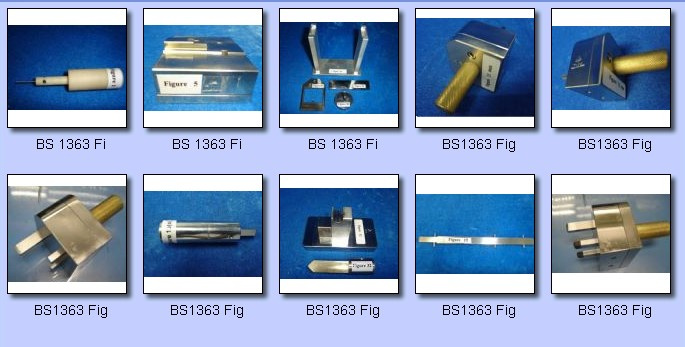

Name Description QTY. (piece)
BS1363-2-Fig1 Test PIN 1
BS1363-2-Fig2a. 2b Elastic shell mechanical strength test device 1
BS1363-2-Fig 5 plug gauges 1
BS1363-2-Fig11 plug gauges 2
BS1363-2-Fig12 Contact test gauge 1
BS1363-2-Fig14 Non contact test 1
BS1363-2-Fig15 Insert transverse stress gauge 1
BS1363-2-Fig16 Insert pull-out force gauge 2
BS1363-2-Fig17a/b Temperature rise test device and the simulationpanel 1
BS1363-2-Fig19 Stainless steel solid fuse 1
BS1363-2-Fig23 Pressure test device 1
BS1363-2-Fig29 correction clamp 1
BS1363-2-Fig30 gauges 1
Total quantity 13
