Product Specifications
| Prod Model: |
JM-MR102A CO600mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Shape: |
Round |
| Characteristic: |
Fiberglass Reinfoced Resin |
| Molding Method: |
Membrane Pressure |
| Certificate: |
CE&En124, SGS, Eurofins, ISO |
| Material: |
SMC |
| Light Color: |
Green |
| Type: |
Green/Lawn Manhole Cover |
| Feature: |
Fiberglass Reinfoced Resin |

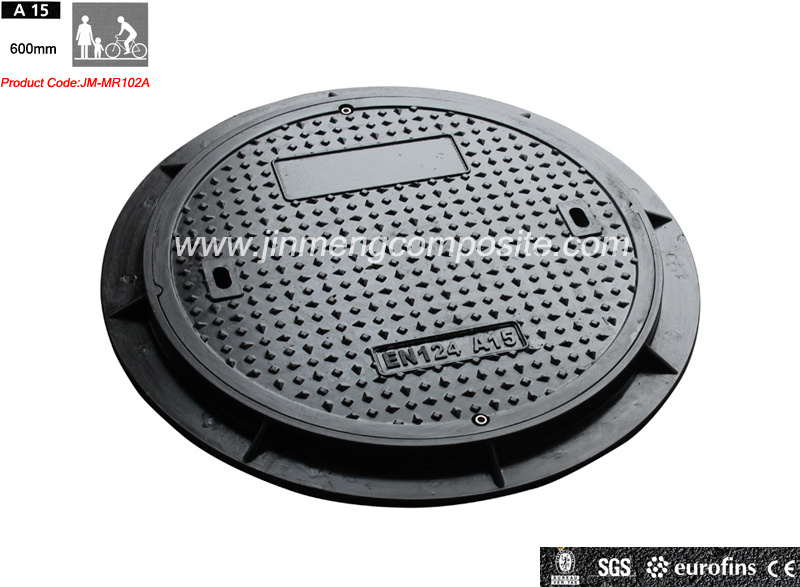

Product Description
Type: Manhole Cover
Material: SMC
Clean open: 600mm
Cover size: 650mm
Shape: Round
Color: Black, Gray, Blue, Green. Ect
Load capacity: EN124 A15
Feature: With S. S lock, High Load Rating, Against Theft, Anti-UV, Water Proof, Light Weight, environmental care
Certificate: CE&En124, SGS, Eurofins, ISO, BV
Service Life: More than 30 years
Application: Main roads, highways, communities
Molding method: Membrance pressure
Recycle Value: Zero Theft Value
Working Condition: Anti Corrosion, Water Tight
Conduction: Non-Electricity Conduction and Non-Heat Conduction
Noise: Less Noise and Lower Vibration Transmissions
Working Temperature: -40° C-200° C
1. No recovery value---It will solve the stolen problem thoroughly.
2. High load capacity---Its high load capacity exceeds the ductile iron.
3. Free-design---It can be designed according to users' demands, including color, pattern, specification.
4. Long service life-it can be used at least 30 years.
5. Well sealed----it can be used hermetically, and effectively prevent those poisonous gases leaking out from cesspool.
6. No any jangle----There is neither jangle nor rebound when cars pass through.
7. Good wear and corrosion resistance--It will never rust because it has good wear and corrosion resistance.
|
Size |
Remarks |
|
Clear Open 650mm A15+ |
Cover Dia 700mm
Planting depth 250mm
Planting depth 150mm |
Round |
|
Clear Open 545mm A15+ |
Cover Dia 600mm
Planting depth 250mm
Planting depth 150mm |
|
Clear Open 480mm A15+ |
Cover Dia 500mm
Planting depth 150mm |
|
Clear Open 550x550mm A15+ |
Cover Dia 738x738mm
Planting depth 100mm |
Square |
|
Clear Open 555x555mm A15+ |
Cover Dia 600x600mm
Planting depth 250mm
Planting depth 150mm |
|
Clear Open 450x450mm A15+ |
Cover Dia 500x500mm
Planting depth 250mm
Planting depth 150mm |
|
Clear Open 350x350mm A15+ |
Cover Dia 400x400mm
Planting depth 250mm
Planting depth 150mm |
|
Clear Open 350x510mm A15+ |
Cover Dia 400x600mm
Planting depth 150mm |
Rectangle |
|
Clear Open 550x750mm A15+ |
Cover Dia 600x800mm
Planting depth 150mm |
|
Clear Open 380x770mm A15+ |
Cover Dia 470x860mm
Planting depth 110mm
Planting depth 250mm |
|
Clear Open 850x770mm A15+ |
Cover Dia 940x860mm
Planting depth 110mm
Planting depth 250mm |
|
Clear Open 1320x770mm A15+ |
Cover Dia 1410x860mm
Planting depth 110mm
Planting depth 250mm |
|
Inner dia 550mm |
Cover dia 1000x1000mm |
Around the tree, to protect it. |
|
Inner dia 400mm |
Cover dia 800x800mm |
Founded for "Safer Road" and tradition of Quality & Innovation, Hangzhou Jinmeng Road Establishment Co., Ltd has been at the forefront of composite products more than 10 years.
Jinmeng owns a 70 thousand square meter plant, including 4 standard raw material workshops, 2 material lines and 2 production workshops and warehouse. There are 41 hydraulic machine ranges from 200 tons to 1, 600 tons and more than 500 molds for different products, a 100 tons' load capacity testing facility.
We have a experienced engineering team consisting of Raw Material Analysis and Developing, Structure Designing, Mold Engineering, Quality Controlling and Testing. Jinmeng Technical Consultancy team is available to offer technical advice, support and integrated solution according to customer individual demand.
Jinmeng composite product lines including Composite Manhole Cover, Gully Grating, Water Meter Box, Environmental Dustbin and other infrastructure products. Featured with Anti-theft owing to the natural "0" recycle value, High loading & strength structure, Light-weighted, Anti-corrosion and good lifespan, Flexible customized such as Logo, Inscription and Color.
Jinmeng strives for excellence and wins ISO9001, ISO14001, CE, SGS, BV, Eurofins certificate owing to the strict production standard and excellent product performance. Today, Jinmeng is a leader in designing and marketing composite infrastructure solutions. Our products are exported to most of the European and American Countries and win global reputation for high quality and superior after sales service.
Hope and believe Jinmeng can be you reliable partner to create a double-win cooperation.
