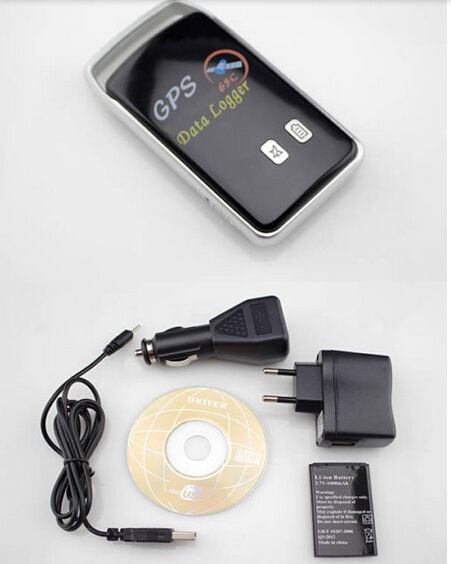

Bluetooth GPS Data Logger BTGP-38KM, Support Bluetooth Serial Communication Profile, Can Receive And Storage GPS Data
Summary
BTGP-38KM, a high-tech product combines the advanced Bluetooth technology
And GPS technology. Through, Bluetooth technology, you can receive and storage GPS data through intelligent mobile phone, PDA, laptop and desktop. Can be used for
Location, navigation, read the history of track records, and other applications
Best features
1. Very low electricity cost and work up to maximum 18.5 hours
2. High-sense, good-performance GPS chip, receiving 65 satellites simultaneously
3. Accord with Bluetooth 2.0 Specification CLASS 2
4. Support Bluetooth serial communication Profile (SPP Profile)
5. Compatible with li-battery and charger of Nokia mobile (e. G. N70)
6. 3 LED indicate statues of Bluetooth, GPS and recharging
7. Support the baud rate 9600BPS in NMEA-0183 standard
8. Can store the equivalent of 300 hours history GPS track information.
9. Small-size, humanized design, portable, cute appearance
Technical Index
General Index
Receivable frequency L1, 1575.42MHz
C/A code 1.023MHz
Channel 65
Sensibility
Search -151dBm
Track -160dBm
Precision
Location 7m CEP 90%, 3m CEP 50%(SA OFF)
Velocity 0.1m/s
Location time
Hot startup 1s, average
Warm startup 35s, average
Cold startup 40s, average
Dynamic condition
Altitude Max 10 km
Horizontal speed Max 515m/s
Acceleration Max 4G
GPS protocol
NMEA-0183 ASIC protocol
Default NMEA GGA, GSA, GSV and RMC, (VTG, GLL and RMS optional)
9600BPS baud rate, 8 data bits, 1 stop bit, no check bit
Bluetooth index
Bluetooth code V2.0+EDR
Emission power Class 2 (4dBm max)
Receiving sensibility -80dBm
Communication distance 10m typical (free space)
Profile Communication Profile Serial Port Profile (SPP)
Power consumption
Working current about 60mA average
Working voltage 3.7V~4.2V
Chargeable voltage 5.5V
Battery
Recharge time 2.5hrs typical
Working time about 18.5hrs, track after the charging is full
Hardware Features
1. Size: 72.8(L) X45.8 (W) X18.8 (H) mm
Wight: 70g
Operation Instruction
1. Load battery
Open the cover of battery door, and load the battery in right direction. Close the
Battery door...
2. Charge
Plug the AC end of the charger into main power supply socket. Plug the DC
Charger into the hole on the product. Then, the red LED turns on, indicating it is
Charging. In about 2.5hr, red LED turns off and the charger is completed.
Note: To maximize the lifetime of the battery, please charge it continuously for at least
10 hr for the first time.
3. Bluetooth dongle
If there is no Bluetooth dongle, you need to buy Bluetooth dongle. When you
Purchase Bluetooth dongle, the business will give you a Manual, be sure to read
Carefully.
