Product Specifications
| Prod Model: |
TDTG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing Object: |
Beans |
| Processing Technics: |
Lifting and Conveying Material |
| Type: |
Lifting and Conveying System |
Product Description

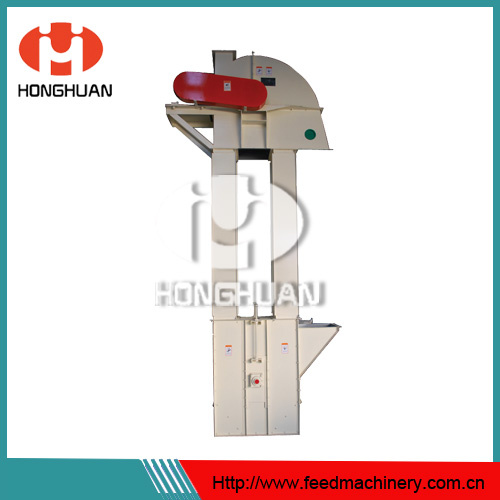

1. TDTG Series Bucket Elevator
Main Feature
1.It has compact structure and small overall dimensions of transect and floor space can be saved remarkably;
2.Head: Rubber covering technology is adopted for head pulley to increase friction coefficient and improve the driving efficiency; Height of discharging section of head is increased, thus extending the materials discharging time. And it is fitted with outlet adjusting plate and buffer chamber to effectively reducing the returning of materials; The housing is lined with replaceable UHMW wear proof materials;
3.Middle Casing: The edge meshing technology is adopted, resulting in high strength and good tightness; The balancing pipe is added to balance the pressure between two housing of machine body; Wide opening access door facilitates the repair and replacing of bucket; Explosion- proof port is available and can effectively reduce pressure and release explosion;
4.Foot: New type shaft sealing structure prevents dust from leaking; Split structure of bearing housing guarantees the reliability of use of machine; Two sealing devices in the adjusting plate prevent the dust and materials from leaking out of the adjusting plate;
5.The machine is fitted with backstop device so as to avoid the blockage caused by power failure;
6.Speed detector and off track alarm sensor are optional;
7.It can be used for granular, powder and block materials vertical conveying and widely for feed mill, oil plant, food, chemicals, construction materials, grain warehouse and port.
Technical Parameter
2. TDTG Series Self-Cleaning Elevator
Main Feature
1.This machine is widely used for vertical conveying of pellet and powder in feed industries of grain, food, feed and chemical.
2.Beautiful appearance design, steady work, simple structure, complete function, good seal, low noise.
3.Especially the high capacity ,low backflow, low failure rate and long lifetime
4.It is used power and pellet together, with anti-explosion cover and pressure balance device.
5.Its height and capacity is changeable and flexible process layout increase its adaptation. So it is a ideal conveying equipment now.
photo samples:
Changzhou Honghuan Machinery Co., Ltd is a professional feed machinery supplier, it is located in Changzhou Jiangsu, south part of China.
Changzhou Honghuan Machinery is specialized in feed machinery, including feed machinery, engineering, spare part, electric control system, steel structure and other auxiliary machinery. Honghuan Machinery has one experienced team in feed machinery production, engineering design and assembly. With advanced equipment and complete management, Honghuan Machinery has good reputation in the market.
With the idea of "Trust Makes Brand and Service brings Development". now Honghuan Machinery has wide market in China and abroad, and with good quality, Honghuan machinery has exported machines to some countries, such as Bangladesh, Singapore, Vietnam, Iran, Australia, Africa. With quality idea of "I am customer and do what customers want", Honghuan Machinery has good relationship with customers, we are sure we will have good developing future.
