Product Specifications
| Prod Model: |
PE500x750, PE600x900, PE750x1060, PE900x1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spare Parts Supply: |
for Whole Year |
| Test&Installation: |
Engineer Assigned |
| After-Sale Service: |
for Whole Using Life |
| Export Markets: |
Global |
| Type: |
Jaw Crusher |
| Application: |
Stone Industry |
| Drive: |
Electric |
| Crushing Style: |
Grinding & Impact |
| Crushing Degree: |
Coarse Crusher |
| Finished Surface: |
Hole Process |
| Compressive Strength (',For Crushing): |
Various According to Different Model |
Product Description
Building and Construction Machinery Crushers
Shanghai Zenith Mining and Construction Machinery Co., Ltd. Is a high technology, engineering group. We are specializing in the research, development, and production of industrial crushing and powder processing equipment and pertinent devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
Our headquarters of Zenith are located in Shanghai, China. Manufacturing center in Shanghai about 450, 000 square meters; One hour drive to the east direction in Qidong city from Shanghai, another manufacturing center is about 600, 000 square meters. This two manufacturing bases are our solid backing.
Building and Construction Machinery Crushers Introduction

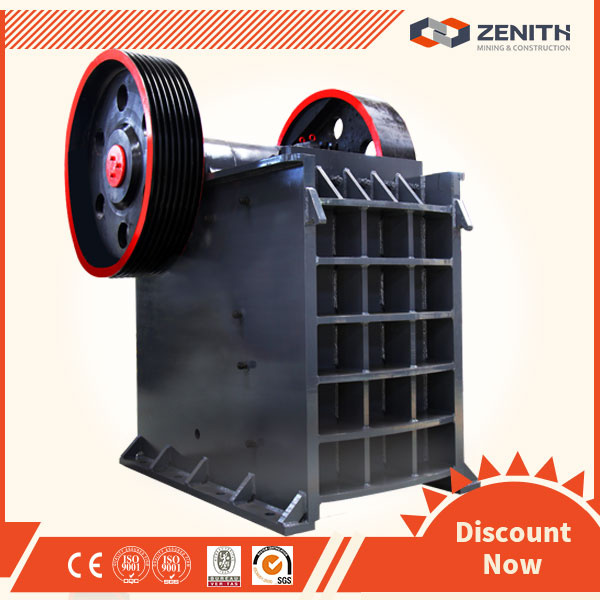

Jaw crusher is a kind of heavy duty machine which can crush materials into even granularity. Our hard rock Building and Construction Machinery Crushers has the characteristics of high reduction ratio, high productivity, simple structure, and reliable performance, etc. Hard rock jaw crusher is convenient to maintain and practical to use.
Building and Construction Machinery Crushers can be used in mining industry, metallurgical industry, construction, smelting, road building, chemical industry, and other fields, for crushing various materials whose compressive strength is not more than 320 MPa.
Building and Construction Machinery Crushers Features
1. High ratio of crushing,
2. Even final size,
3. Simple structure,
4. Reliable working condition,
5. Easy maintenance,
6. Low operating cost.
Building and Construction Machinery Crushers Operating Principle
Jaw Building and Construction Machinery Crushers crusher uses motor as its power. Through the motors wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
| Model | Feed Opening (mm) | Max Feeding (mm) | Discharge Opening (mm) | Capacity (t/h) | REV (r/min) | Power (kw) | Motor Model | Machine Size (mm) |
| PE200×350 | 200×350 | 170 | 20-50 | 2-6 | 220 | 6-7.5 | Y160M-6/7.5 |
|
| PE250×400 | 250×400 | 210 | 20-60 | 5-20 | 310 | 6-15 | Y180L-6/15 | 1450×1315×1296 |
| PE250×750 | 250×750 | 210 | 20-60 | 8-22 | 320 | 6-30 | Y225M-6/30 |
|
| PE500×750 | 500×750 | 425 | 50-100 | 45-100 | 275 | 6-55 | Y280M-6/55 | 1890×1916×1870 |
| PE600×900 | 600×900 | 500 | 65-160 | 70-120 | 250 | 6-75 | Y315S-6/75 | 2520×1840×2303 |
| PE750×1060 | 750×1060 | 630 | 80-140 | 130-260 | 250 | 8-90 | Y315L1-8/90 | 2620×2302×3110 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 220-380 | 200 | 8-130 | JR127-8/130 | 3789×2826×3025 |
| PE1000×1200 | 1000×1200 | 850 | 195-265 | 230-380 | 200 | 8-130 | JR127-8/130 | 3889×2826×3025 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 220 | 8-200 | YR355M4-8/200 | 4930×3150×3700 |
