Building Hoist Part Driving Device

Name: Building Hoist Part Driving Device
Brand: China-Manufacturer-Directory.com
SKU: 740366935
Availability: InStock
Rating: 4.6 (114 reviews)

Supplier:	Shanghai Strong Engineering Construction Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	11KW full set of
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Lifting Speed:	60m/Min
Type:	Lifting Platform
Application:	Construction Usage
Sling Type:	Cable
Power Source:	Electric
Certification:	SGS
Condition:	New
Tower Crane Type:	Construction Hoist
Moving Type:	Rack and Gear

Product Description

Hoist Driving device SC type construction lifter transmission mechanism is also called the elevator drive plate, is the core of elevator drive and safety device, by YZZl32M 4 special motor, a plane enveloping ring surface vortex rod reducer and for safety device components are installed on the same floor.

It installed in the elevator car trunk, composed of motor and speed reducer drive transmission power plant to small gear reducer output side, vertical rack and pinion and elevator meshing, drive the car up and running smoothly.For safety device with vertical rack and pinion engagement, once the motor brake failure and make the car skids, automatically open for safety device, car emergency brake immediately, to ensure the safety of the lifting machine running.

Compact mechanism design is reasonable, factory after running-in experiments.Different specifications are available in three drive and double drive type elevator.Also can provide users with a single motor reducer.

Hoist Driving device (single) : one, the main performance parameters of the motor rated power llkW, rated speed 1400 r/min, braking torque rating 120 n. m reducer (single) : 14 (16) ratio, 890 (1020) rated output torque N.m, rated speed 100 (87), the efficiency of 85% for safety device: brake load rating 30 kn, rated speed 1.2 m/s, braking distance is 0.15 ~ 1.40 m note: column gear reducer, the brackets data according to user requirements.

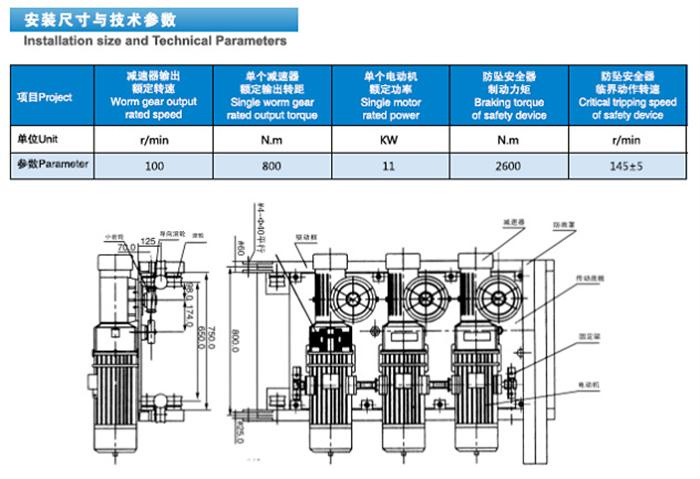

Second, the basic structure and shape size shape and installation size can also be produced according to user requirements

All kinds of hoist spare parts

Driving device with 2-motors / 3-motors;

motor: 11kw, 14.5kw,18kw;

motor spare parts: braking system; brake sheet, motor adjustor, electromagnet,motor fan.

safety device: 30KN,40KN,50KN,60KN;

gearbox: 16:1,14:1,12:1;10:1;

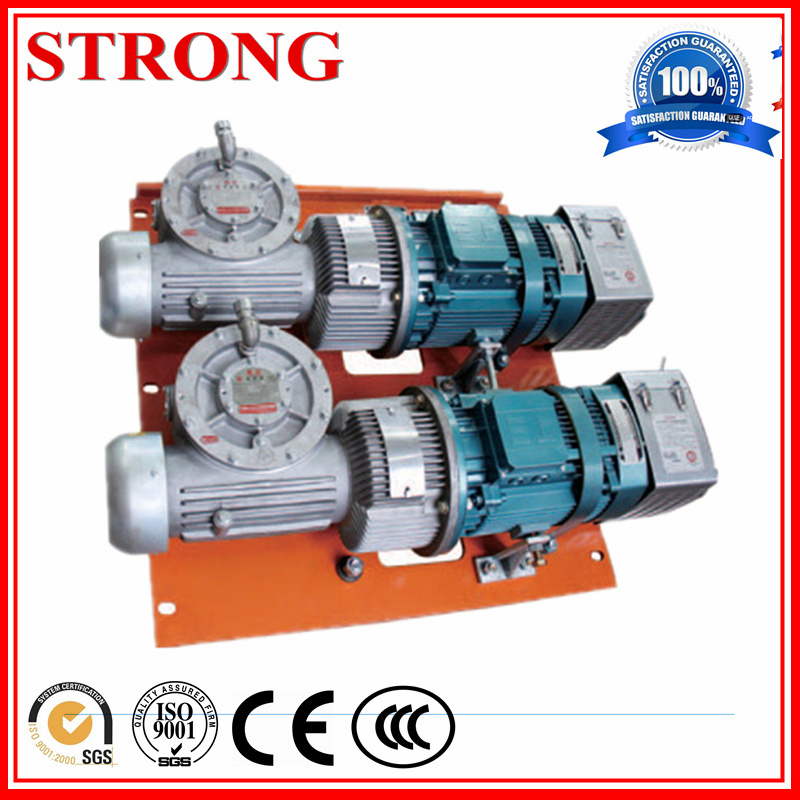

Hoist Driving device

Shanghai Strong Engineering Construction Co., Ltd (STRONG) is a professional manufacturer of construction hoist spare parts(also called passenger hoist spare parts, construction elevator spare parts) and distributor of zoomlion tower cranes&wholesaler of zoomlion tower crane parts established in Shanghai in 2008.

We can manufacture all kinds of spare parts (pinion, gear rack, counter wheel, roller, SAJ safety device, motor, reducer, drive mechanism, elec parts, etc) for most brands construction hoists(such as GJJ, BAODA, ZOOMLION, JIANGLU, YUHUAXING, KANGBO, XCMG, ALIMAK HEK, etc). We also have a large quantity of spare parts for zoomlion tower cranes.

Our products sell to 28 province, city and municipality in China and export to Vietnam, Brazil, UAE, Russia, USA, India, Singapore, Egypt, etc. Many states and districts. We strive to offer the best service and achieve 100% customer' S satisfaction.

STRONG in good faith, diligence, perseverance, innovation as the core philosophy, adhere to customer-oriented service concept, excellent technical support and professional technical team and dedicated service to our customers at home and abroad.
