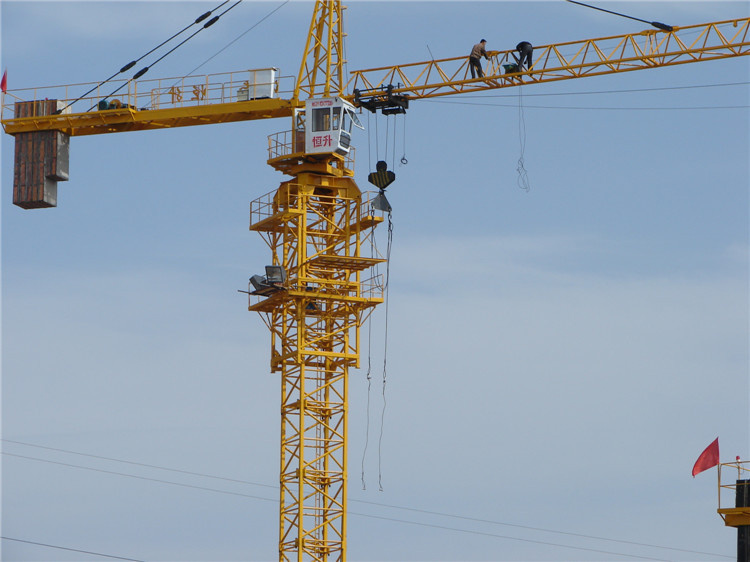

Building Machinery Made in China by Hsjj Qtz6018

Product Specifications

Prod Model:	QTZ6018
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Chinese Famous Steel Company
Electrical Mechanism:	Siemens or Schneider
Hoist Mechanism:	Brake Wheel
Trolley Mechanism:	Free Maintenance Planetary Reducer and Cone Brake
Slewing Mechanism:	Winding Motor and Hydraulic Transmission
Operation Device:	Good for Operator
Safety Devices:	a Complete Set of Safety Devices
Crane In Free Standing Height:	45m
Type:	Tower Crane
Application:	Mineral Area Usage
Sling Type:	Wire Rope
Power Source:	Electric
Certification:	CE
Condition:	New
Main Girder Form:	Tower Lift Boom

Product Description

building machinery
1. tech data performance table

rated lifting  torque				kN.m	1250
max. Lifting capacity				t	8
working range m				m	3~60
lifting height		free standing height			50
		with wall tie ins type			180
lifting speed		2-lines		m/min	101.5/51.83
		4-lines			49.11/25.08
slewing speed				r/min	0.65
ranging speed (FBF1250A)				m/min	58.6/29.3/8.79
climbing speed					0.4
lower descending speed					≤5
outline dimension	Foundation frame			m		8×8
	total height		free standing height			60
			with wall tie in type			190
	jib tip to slewing center					63.372
	rear part of counterjib to slewing center					14.82
dead load	structure weight		free standing height	t		58.508
			with wall tie ins type			113.628
	counterweight					20.8
power				kW		60.85
allowed working temperature				Dge c		-20~+40
power supply				50Hz		~380V±10%

 table iii tech data
2.  main tech datas

mechanism load		lifting mechanism		M5
		slewing mechanism		M4
		ranging mechanism		M4
lifting mechanism	motor	type		YZRDW250-4/8
		power (kW)		37/37
	height limiter	type		FKDX-G
	wire rope	type		6X37-15-1770
		max. Pull forece(N)		20000
	factor multiplification	a=2		a=4
	lifting speed (m/min)	101.5	51.83	49.11	25.08
	rated lifting capacity (t)	1.6	4	3.2	8
	min lower speed	m/min		≤5
Slewing mechanism	motor	type		YZR160M1-6
		power (kW)		3.7×2
		slewing speed(r/min)		960
	reducer	type		XX4-100.185
		driving ratio		185
	hydraulic coupling	type		YOX280A
	slewing pinion	modulus     m		12
		teeth z		15
		modification coefficient		+0.5
	slewing speed	r/min		0.61
slewing ring	one line four point connecting t	type		QWA.1400.45
		modulus m		12
		teeth  z		133
hydraulic climbing mechansim	motor	type		Y132M-4B5
		power(KW)		5.5
	oil tank rated working perssure	Mpa		30
	max. Climbing force	t		60
	oil tank travelling distance	mm		1600
	installing distance	mm		2070
	oil tank diameter	mm		φ160
	oil tank pistl diameter	mm		φ110
	climbing speed	m/min		0.4
Ranging mechnism	motor	type		YZTDE180M-4/8/24
		power (kW)		5/3.7/1.1
	wire rope	description		6×19-9.3-1550
	reducer	type		XX3-14.40
		driving speed		39.7
	raning speed	m/min		58.6/29.3/8.79




Description of QTZ series tower Crane

1) the tower crane is one of the most popular type and hot-selling self-erecting tower crane, which is researched and designed by Institute of Building Mechanization of China Academy of Building Research. It absorbs many advanced technology both from China mainland and abroad.
2) We adopt to use Dual drawbars structure on lifting boom, which enables the lifting boom to be unfer no stress at lifting surface other than uniaxial stress, and moreover, it gets rid of the stress peak. It greatly improves the fatigue safety performance of lifting boom.
3) Adopts VVVF stepless speed variation device for lifting, radius changing and slewing mechanisms, to make sure it works steadily and effectively, it also lowers the maintenance cost.
4)We can offer crane standard sections such as the FO/23B standard sections for customers to choose from.
