Product Specifications
| Prod Model: |
JYS-2000A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

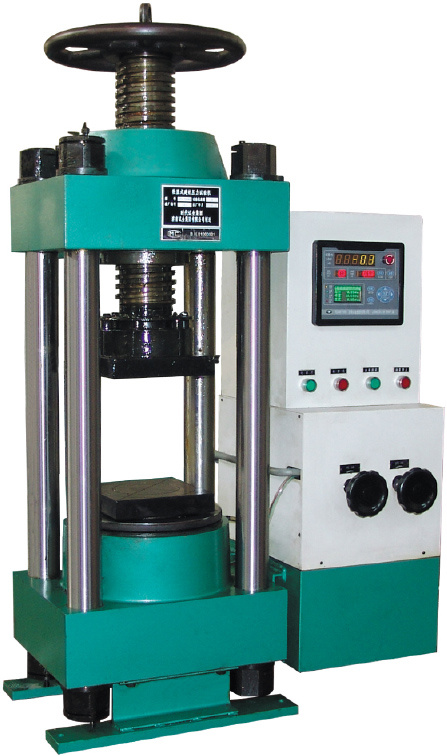

JYS-2000A digital display building materials compression testing machine is mainly used to the compression test of building materials such as brick, cement and concrete, etc.
Load Frame Structure: The load frame is four columns tower structure, mainly consisted of base, piston, crosshead, adjusting screw rod and upper & lower compression platens. Screw nut and adjusting screw rod are mounted on upper crosshead. The sphere base and upper platen were installed downside of adjusting screw rod. The hand wheel is installed on the top of screw rod. The position of upper compression platen is adjusted through the turning of hand wheel. To make the specimen is placed on the center of compression platen, locating position lines were provided. Oil source integrated control cabinet and digital meter were connected together with the load frame.
Measuring System: His machine is mainly consisted of load frame, oil source, control cabinet and digital meter. It adopts hydraulic loading, oil pressure transducer to measure the load, digital display with peak value holding, loading speed display functions. The operation and display panel are very convenient for the user to operate and observe.
Applications: It is widely used in different construction materials works, different project building sites,
Quality control department, universities and institutes as well as other areas and works concerning
Common sense: The differences between YAW, YEW and YE and JYS/YES series
Compression testing machines
YAW Series is computer controlled servo hydraulic compression testing machine. The space adjusting, & test processes could be controlled by the software and the test result could be transferred to the software in the computer for further analysis. It is the most advanced series in hydraulic compression testing machines.
YEW Series is computer display manual control hydraulic compression testing machine. The space adjusting & force loading could be executed by manual control. The test result could also be transferred to the software for further analysis.
YE Series is pendulum dynamometer display manual control compression testing machine. The space adjusting & force loading could be executed by manual control, and the test result could be shown through dynamometer.
JYS/YES Series is digital display manual control compression testingmachine.
|
Specification |
JYS-2000A |
|
Max. capacity (KN) |
2000 |
|
Measuring range |
4%-100% of FS |
|
Relative error of reading |
≤ ±1% |
|
Max. distance between two platen (mm) |
330 |
|
Compression platen size (mm) |
220×220 |
|
Max. piston stroke (mm) |
0-20 |
|
Max. piston speed (mm/min) |
Approx. 30 |
|
Column clearance (mm) |
300×200 |
|
Oil pump motor power (KW) |
1.5 |
|
Whole dimensions (mm) |
855*380*1435 |
|
Whole weight (KG) |
Approx. 1000 |
TIME Group Inc. was established in 1984 is a leading manufacturer of Material Testing Machines in China. TIME Group Inc. has over 2, 800 dedicated, highly skilled employees in facilities located in China. From engineering, service, training, to front-line support, our commitment to customer satisfaction is the driving force behind everything we do. In 1995, we achieved the ISO 9001 certificate, and we have got many other certificates, such as CE. We are not only famous in China, but also have been exporting into more than 35 oversea countries and area.
JINAN SHIJIN GROUP was established in 1952, is the leading company in testing machine industry, honored as the excellent HI-TECH company in China. In August, 2003, TIME GROUP INC. Merged SHIJIN GROUP, this is a landmark in China testing machine industry.
We invested 180 million RMB to build a new factory of TIME SHIJIN GROUP in the Jinan economy & technology development district in 2010, and it occupies 102 Mu, with building area 46800 sq. M. It consists of 10 production lines: Foundry, Heat Treatment, Painting, Big Parts, Accessories, Bearings, Electric, Oil Sources, Load Frame, Installation & Calibration, Diversified Big Digital Controlled Processing Centers and 131 units of special machine tool equipments. The advantages of our new factory are not only the biggest production capacity in the Testing Machine industry of China, but also with the most modern technology.
