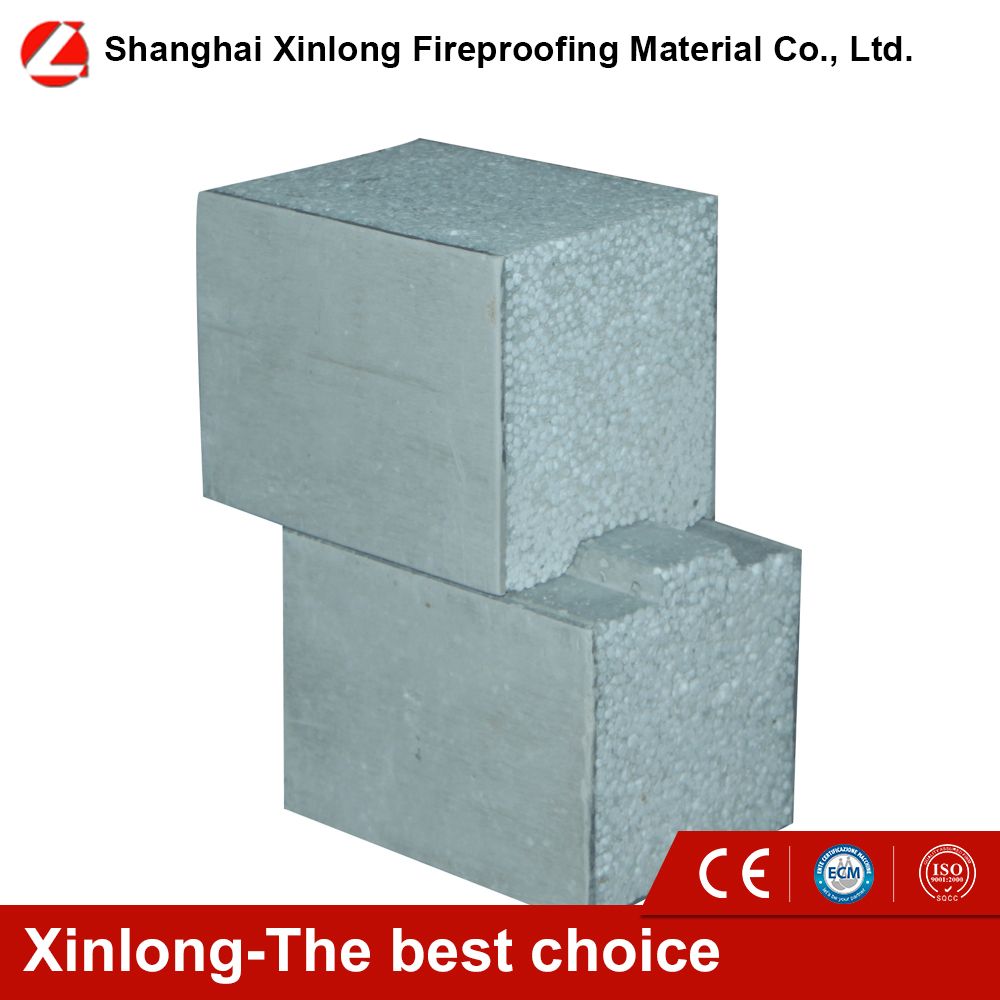

Building Material Light Weight Fireproof EPS Sandwich Panel for Wall

Product Specifications

Prod Model:	eps panels 2015
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	EPS Sandwich Panels
Size:	3000*610mm, 2700*610mm
Thick:	50-150mm
Density:	550-650kg/M3
Fire Resistance:	Class a
Brand:	Xinlong Board
Package:	in Bulk, or with Pallets
Certification:	CE, ISO
Grade:	Grade A
Appearance:	Panel
Type:	Magnesium Oxide Board
Edge:	Grooved
Shape:	Rectangle
Usage:	Building
Thickness:	50mm, 75mm, 100mm, 120mm, 150mm
Color:	Gray
Material:	Cement Boards, EPS
Surface Finishing:	Sanded
Refractory Temperature:	1000-1200

Product Description

 Light weight high strength eps cement sandwich panels for wall

Brief introduction:
Cement foam board is a new and excellent performance material that becomes popular and develops very fast in recent years . It is the upgraded product for combination of the ordinary silicate,glass fiber,foam preparation,inorganic materials foamed, for autoclave, It have thermal insulation ,water-proof and flame retardant light and friendly toenvironment.


Specifications:
1.Confirm to GB8624-2006 (Foam cement insulation board for exterior insulation systems)
2.Size:3000/2440*610mm
3.Thickness:50-150mm
4.Density:450-650kg/m3
5. Face boards: double faces 4mm fiber cement boards
6.Core materials: cement, eps, silicate,glass fiber,foam preparation,inorganic materials foamed.

Technical Data Sheet of eps sandwich panels
ITEM	UNIT	SPECIFICATION
Density	kg/m3	450-650
Double side fiber cement board thickness	mm	4
Total thickness	mm	50-150
Thermal Conductivity	w/m.k	0.4-0.8
Flexural Strength	Mpa	1
combustion property	~	Class A1  (GB8624-2006)
Water Absorption Rate	%	1.9
Max Smoke Density	%	2
Dimension Change Rate	%	0.3
Compressive Strength	Mpa	0.25
Service Temperature		-180 to150
Standard Size	mm	3000(2440)*610

 Application:
1) no-posititon,harmless,with double side of composite aluminum foil, it can be used for cleaning air conditioner.
2)convenient to stall,short construction cycle,little spot modification.
3)Widely used in dusty,folk building ,tavern,hospital,office building and other places with special requests
