Hengchang Measuring & Auto Control Equipment Co., Ltd. >> Bulk Material Handling Belt Conveyor

Bulk Material Handling Belt Conveyor

Name: Bulk Material Handling Belt Conveyor
Brand: china-manufacturer-directory.com
SKU: 763609625
Availability: InStock
Rating: 5 (99 reviews)

Supplier:	Hengchang Measuring & Auto Control Equipment Co., Ltd.
Price:	US $ 4500-7500/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	TD series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material Feature:	Fire Resistant
Energy Saving:	Energy Saving
Warranty:	1 Year
Color:	Multi Color
Customized:	Customized
Condition:	New
Export Markets:	Global
Type:	Belt Conveyor
Material:	Carbon Steel

Product Description

What Is A Belt Conveyor?
A belt conveyor is a system of pulleys with a long loop of belt stretched between them. One of pulleys is motorized, moving belt transports bulk materials or packages continuously from one place to another.

Industrial Classes of Belt Conveyor:

1. General material handling belt conveyor such as those moving boxes along inside a factory

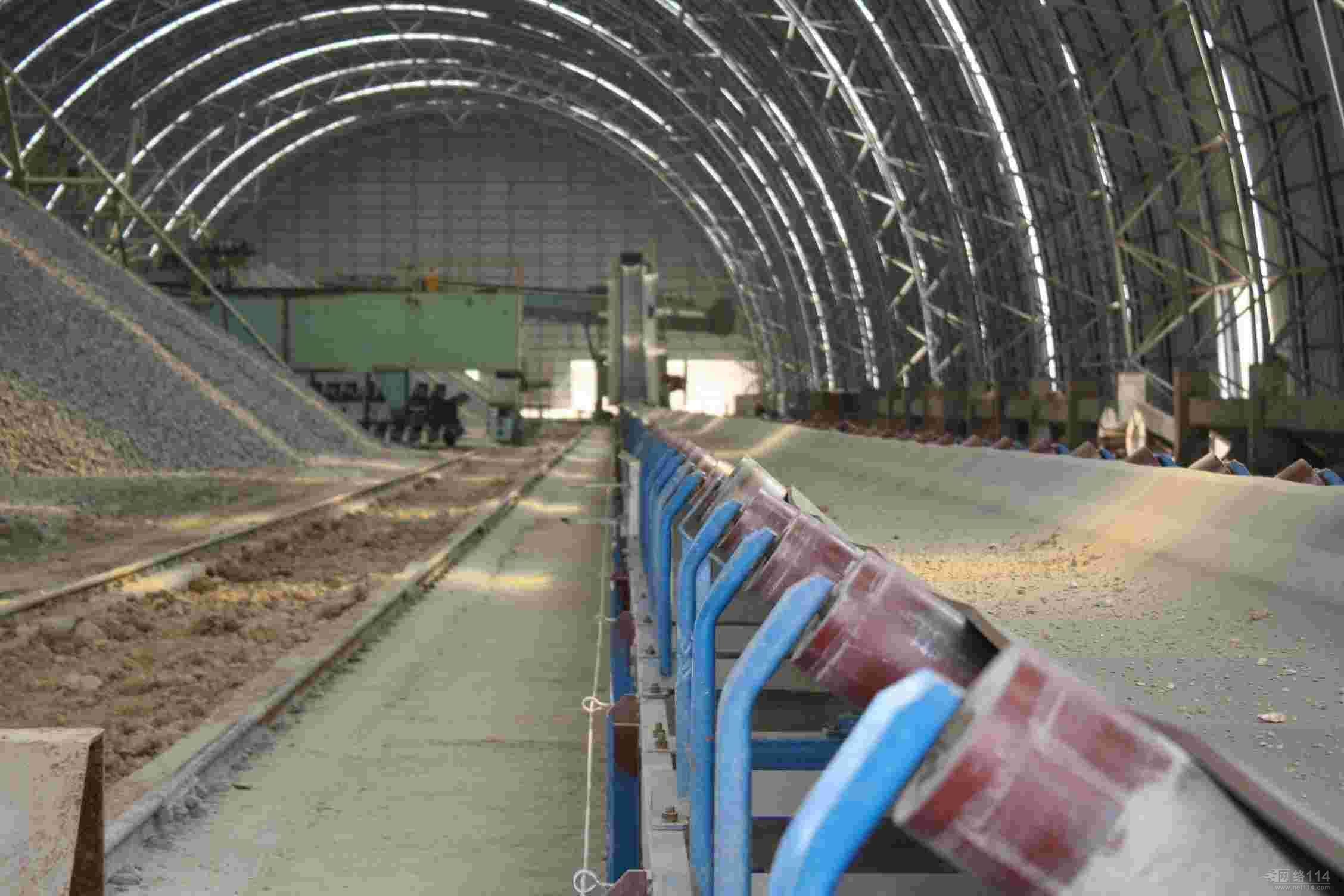

2. Bulk material handling belt conveyor such as those used to convey large volumes of resources and agricultural materials, such as grain, salt, coal, ore, sand, overburden and more.

Today there are different types of belt conveyor that have been created for conveying different kinds of material.

Utility Fixed Belt Conveyor Technical Parameters:

Roller	Belt speed(m/s)	Belt width B(mm)
		500	650	800	1000	1200	1400
		Conveying capacity Q(t/s)
Trough roller	0.8	78	131	-	-	-	-
	1.0	97	164	278	435	655	891
	1.25	122	206	348	544	819	1115
	1.6	156	264	445	696	1048	1427
	2.0	191	323	546	853	1284	1748
	2.5	232	391	661	1033	1556	2118
	3.15	-	-	824	1233	1858	2528
	4.0	-	-	-	-	2202	2996
Horizontal roller	0.8	41	67	118	-	-	-
	1.0	52	88	147	230	345	460
	1.25	66	110	184	288	432	588
	1.6	84	142	236	368	553	753
	2.0	103	174	289	451	677	922
	2.5	125	211	350	546	821	111

A Mobile Belt Conveyor is a type of material handling equipment that can be moved from one location to another, as opposed to being permanently installed.

Mobile Belt Conveyor Key Advantages:
1. Ability to load and unload vehicles from ground level
2. Can be easily moved from one place to another
3. Designed with ease of use & low maintenance
4. Used to stack and de-stack sack/bags in warehouses

The Steep Incline Belt Conveyor uses a flexible corrugated sidewall belt which contains the material and permits loose material such as fertilizer, coal fines, chemicals, assembly parts, scrap materials, grain, sludge, and other bulk materials to be conveyed without spilling.

Steep Incline Belt Conveyor Technical Parameters:

Belt width(mm)		300		400		500		650		800
Sidewall height(mm)		40	60	60	80	80	120	120	160	120	160	200	240
Conveying capacity Q3/h	30°	15	14	20	34	46	71	104	120	128	157	195	235
	45°	11	10	14	26	35	57	83	97	102	127	157	195
	60°	8	7	10	18	25	40	58	69	72	90	112	142
	90°	4	4	5	10	13	21	31	37	38	48	60	76
Overall dimension (mm)	Drive pulley Center height H2/h	350-100				1100-2000		1300-2000		1300-2000
	Tail pulley Center height H2/h	335		330-490		600		600		600-800
	Middle belt height H2/h	450		500-700		760-800		800-850		800-1115
	Middle anchor width B2/h	480		580		870		1020		1220

Features of Steep Incline Belt Conveyor:
1. Reduced Material Degradation
2. Reduced Spillage
3. Less Space Requirements
4. Longer Belt Life
5. Flexible design & configurations

In addition to belt conveyor, we design & manufacture screw conveyor and bucket conveyor to solve material processing problems in various industries.

Hengchang is a comprehensive high-tech enterprise, engaged in offering total solution of cereal and oil processing and chemical industry automation, which integrates research & development, process design, production operation, system integration and technical service.

It is one of the important high-technology enterprises supported by Zhoukou Municipal government and Henan Provincial government. In recent years, Hengchang has received special funds supported and undertook many scientific research & industrialization projects from National Development and Reform Commission, Ministry of Finance, Provincial Development and Reform Commission, Science and Technology Department.

After over 20 years of development, Hengchang currently owns one Research Institute, one provincial-level enterprise technology center, one municipal engineering measurement center, and holds a commercial bank share.

With years of steady development, Hengchang has accumulated rich experiences and mature technologies, developing products from single Measuring instruments to 9 series, more than 100 varieties.

The product includes Engineering Design of Grain Deep Processing, Whole Automation Integrated System of Grain Deep Processing Industry, Remote Intelligent Control System, Grain Deep Processing and Chemical Production Process Control System, Chemical Production Process Measurement Network System, Stacking Logistics automation Equipments, Test and Analysis Instruments, bio-technology engineering as well as Smart iOT field.
