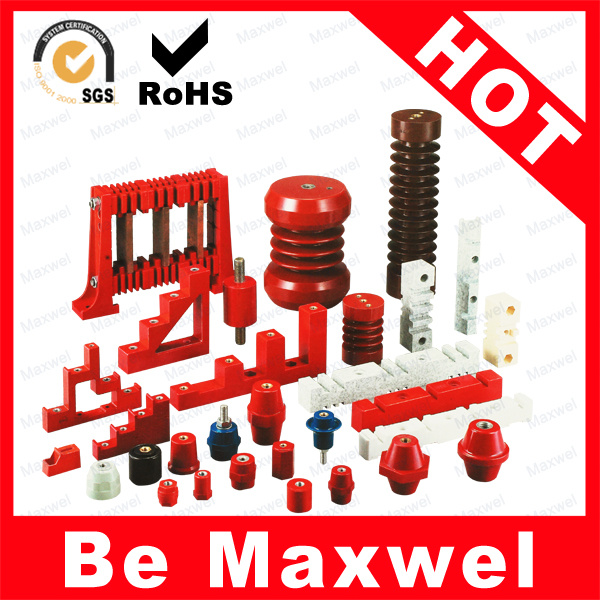

1. EL-30N 36KV high voltage insulator
2. BMC material, unsaturaced polyester
3. Rated voltage: 3.6~36KV
4. Stable quality
EL-30N 36KV high voltage insulator
Material: Bulk molding compound, unsaturaced polyester
Nut inserts: Brass, various specifications are available
Test specification: JIS C3801 and JIS C3851
Color: Dark brown or dark red
Dimension and characteristics
Application: Electrical Winding Insulation
Type: Polyester
Chemistry: Hybrid Insulation
Material: Polyeter
Thermal Rating: Y 90
Maximum Voltage: 20KV~100KV
Export Markets: Global
|
Part no. |
EL-30N |
EL-24 |
EL-15 |
EL-12 |
EL-6M |
|
End diameter(A/B).mm |
100 |
70 |
70 |
58 |
70 |
|
Height(H).mm |
310 |
210 |
142 |
130 |
90 |
|
Surface leakage distance.mm |
630 |
356 |
210 |
172 |
125 |
|
Rated voltage.kV |
36 |
24 |
15 |
12 |
7.2 |
|
Low frequency dielectric strength.kV |
75 |
60 |
50 |
36 |
22 |
|
lmpule voltage resistance.kV |
200 |
125 |
110 |
95 |
75 |
|
Persisten begding strength 1min kg |
500 |
300 |
400 |
300 |
400 |
|
tensile strength kg |
>3000 |
>1500 |
>1500 |
>2000 |
>1200 |
|
torque strength,kg-m |
25 |
> 25 |
>25 |
>25 |
>25 |
